Description
SIM7600G-H-M2 R2 reference assemblies
This page covers the M.2 assembly, comprising a SIM7600G-H module and its adapter PCB. It is a separate selection from a bare solder-down module, Mini PCIe card, breakout board or USB Dongle.

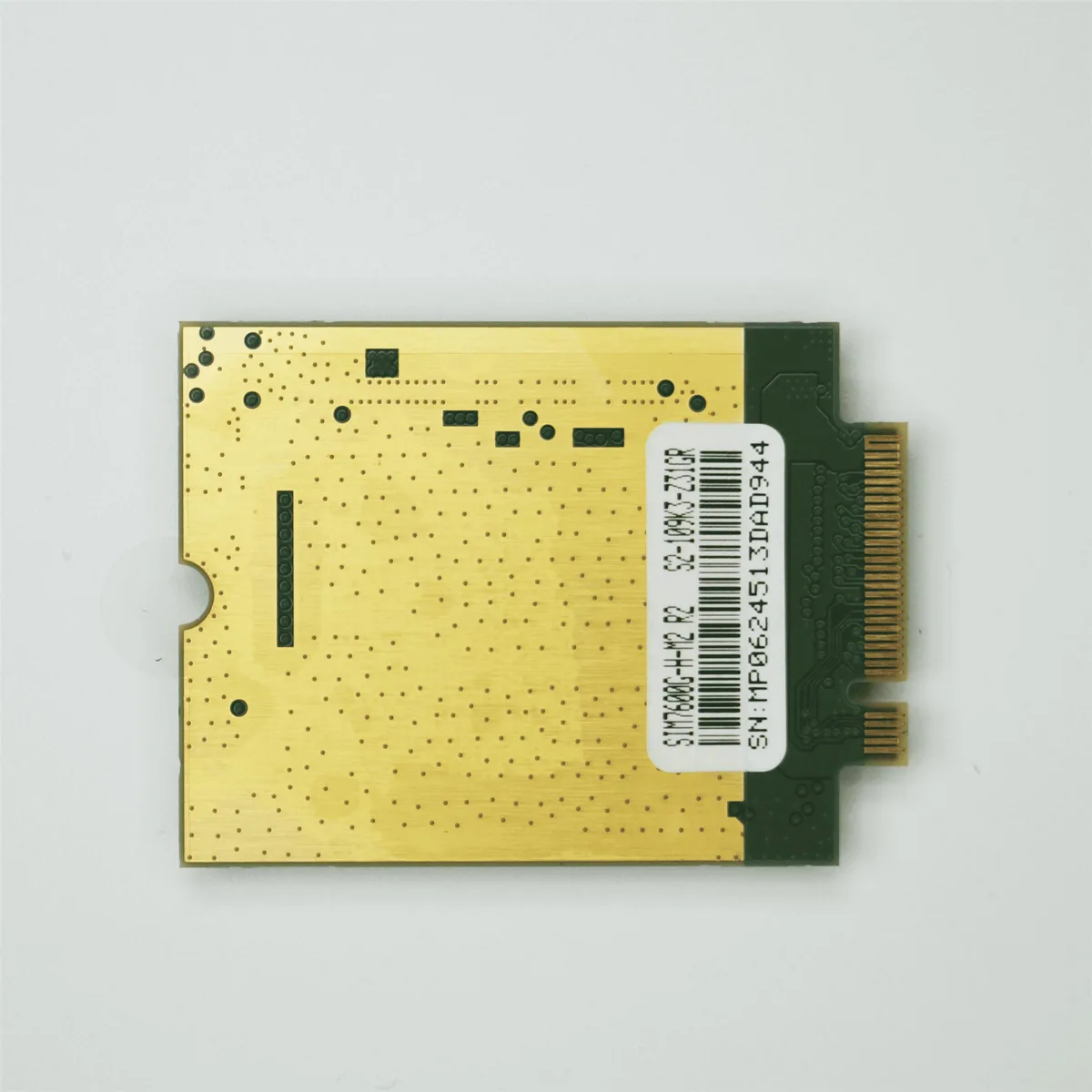

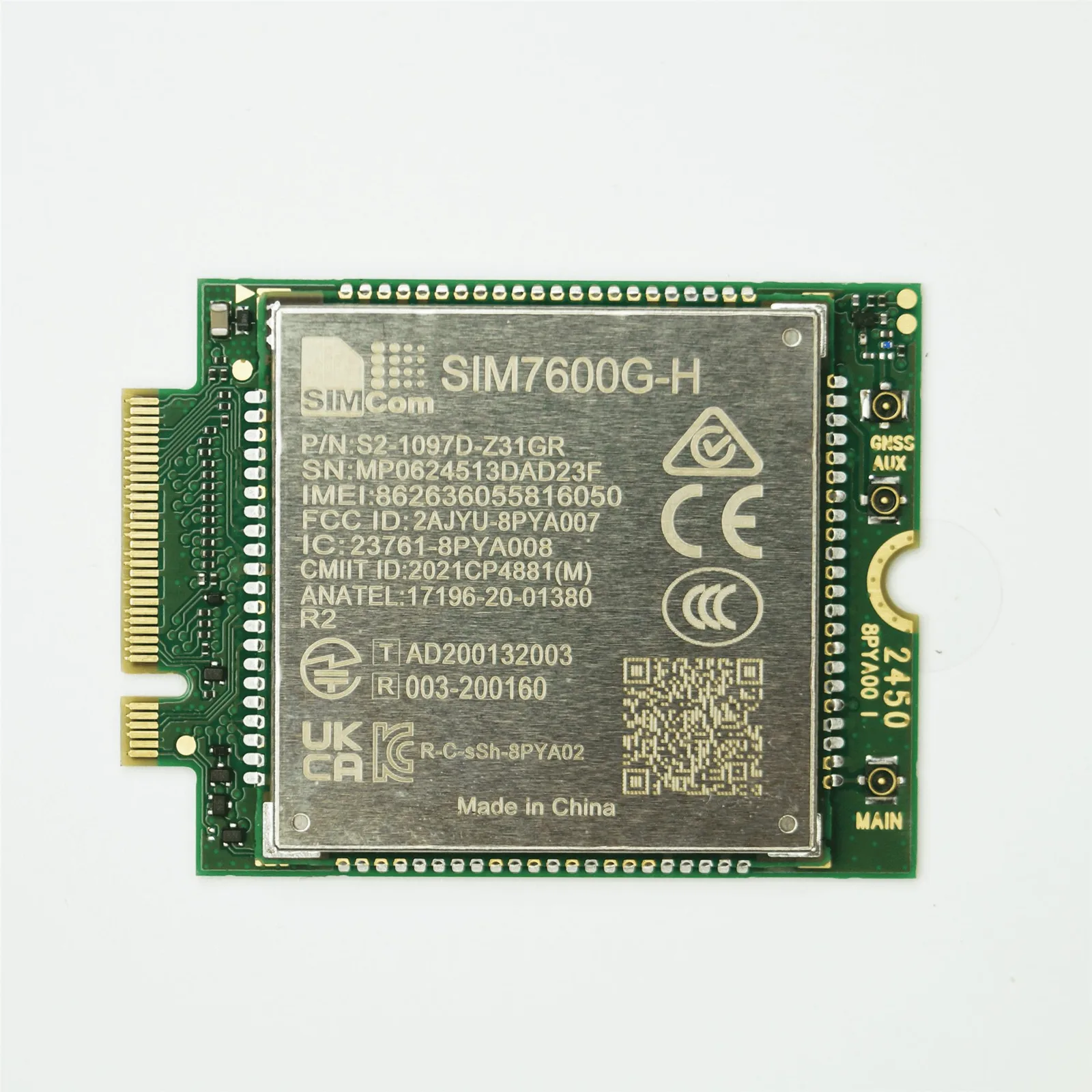

The reverse-view reference label reads SIM7600G-H-M2 R2 and S2-109K3-Z31GR. The front-view sample carries a SIM7600G-H R2 module label with P/N S2-1097D-Z31GR. These photographs show different reference samples; they are not two sides of one identified unit and do not establish the P/N or batch currently offered.
Manufacturer M.2 reference parameters
The following values come from the SIM7600G-H-M2 column on the current SIMCom SIM7600-H-M2 product page, checked on 16 September 2026. Confirm applicability to the quoted R2 assembly and firmware before design approval.
| Radio category | LTE Cat 4; maximum reference rates 150 Mbps downlink / 50 Mbps uplink. Actual throughput depends on the network and integration. |
|---|---|
| LTE-FDD | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66 |
| LTE-TDD | B34 / B38 / B39 / B40 / B41 |
| Assembly outline | 42.0 x 31.4 x 3.8 mm manufacturer reference; obtain the drawing for the supplied PCB revision. |
| Supply reference | 3.3-4.2 V on the current product table. Verify the exact board’s power pins and limits in its matching hardware manual. |
| Interfaces / positioning | USB, UART and I2C are listed. GNSS is marked optional; confirm its fitted configuration and firmware. |
Version and integration checks
A historical SIM7600X-M2 Hardware Design copy has V1.01 page headers and a 2020-10-22 document date, but its metadata table still says Version 1.00. Its summary size and supply values differ from the current product table; its mechanical drawing must also be checked separately. Do not mix values from those references or use an old document as proof of the supplied revision.
The manufacturer currently lists SIM7600X-M2 Hardware Design V1.08 (260127), posted 9 February 2026, and SIM7600-H-M2 Series SPEC_202111. Downloads require a manufacturer login. Request the current files matched to the full assembly code during enquiry. M.2 shape alone does not establish host-socket, pinout, power, driver or operating-system compatibility.
Documents, compliance and supplied items
Use the linked manufacturer page for the specification and hardware-document index. Independent certificates and declarations must match the offered model, hardware/firmware and destination. Printed logos and family certification lists are not a current compliance guarantee for an offered assembly or finished device.
The quotation will confirm the complete P/N, revision and quantity, plus whether an antenna, host adapter, cable, enclosure or other accessory is included. Reference photographs do not promise stock, delivery time or an accessory kit.
Related products and enquiry
- SIM7600 non-H Cat 1 bare-module reference
- SIM7600 Mini PCIe assemblies
- BK-SIM7600 breakout-board selection
Request a quote with your destination network, host interface, operating system, quantity and required assembly revision.
