Board identity and supplied items

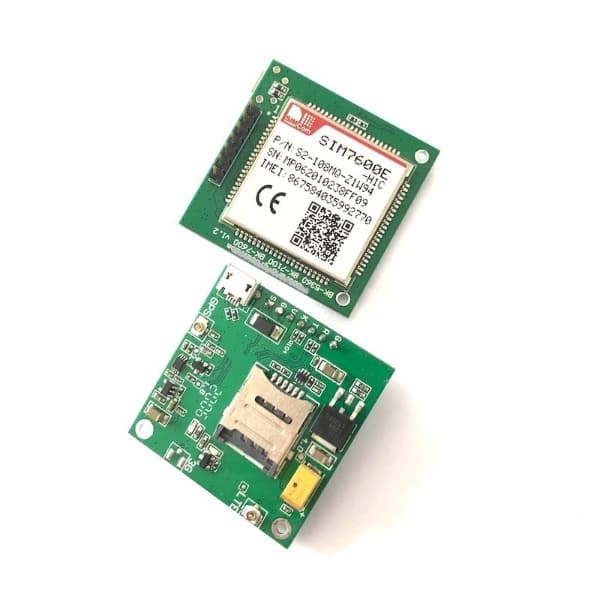

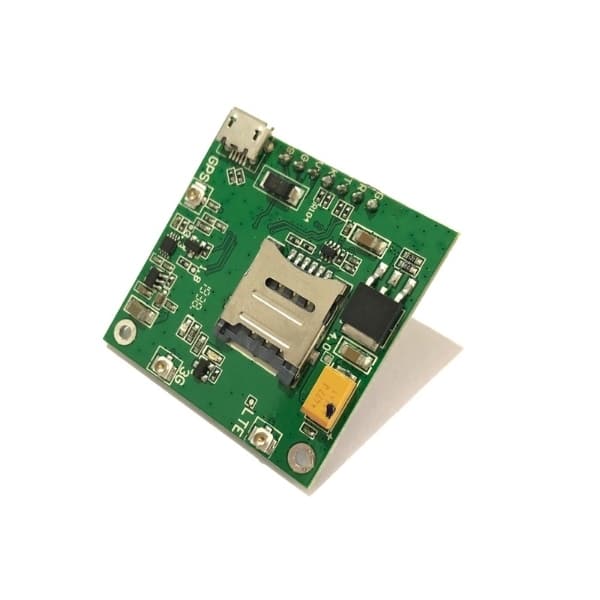

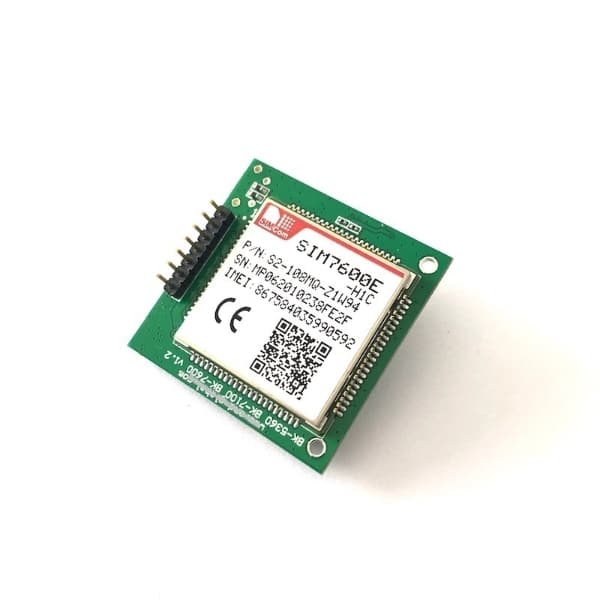

BK-SIM7600 is a breakout-board enquiry page. The main photograph shows a SIM7600E-H1C label; the retained gallery contains different board views. Select the fitted regional module and PCB revision together. These reference photographs do not establish current stock or one universal board configuration.
Module specifications versus board specifications
The previous 30 x 30 x 2.9 mm dimensions and 3.4-4.2 V supply range were taken from the module section of the local Breakout SIM7600 User Manual. They must not be used as the complete board dimensions or its external power-input rating.
- BK manual reference: BK-SIM7600X specification.pdf, eight pages, no explicit release date or revision identified. Pages 3-5 separately describe a 40 x 40 mm PCBA, Micro SIM, USB and UART connections, with header VCC 5-10 V (5 V recommended) and 3.3 V TTL TXD/RXD. These values apply only to the illustrated manual configuration.
- Different core-board reference: the four-page 30X30 single row needle specification sheet and instructions for use.pdf also draws a 40 x 40 mm PCB, but specifies 5-16 V input and Nano SIM. Its title does not establish a 30 x 30 mm board outline. Do not combine its pinout or power limits with the BK manual.
- Selection: match the actual PCB layout, connector labels and revision to its schematic before applying power. The module suffix determines radio category and regional bands; the board name alone does not.
Technical documents and quotation
Request the manual, schematic and dimension drawing matched to the offered board during enquiry. Confirm headers, antennas, USB cable, power supply and other accessories individually. Independent compliance documents must match the complete offered model and intended market; module logos or family documents do not establish approval of the assembled board.
Compare other SIM7600-based board revisions, the non-H bare-module series, and Mini PCIe assemblies. Send the destination network, host interface, quantity and required board revision through a BOM enquiry.
