Description
Model and photograph scope

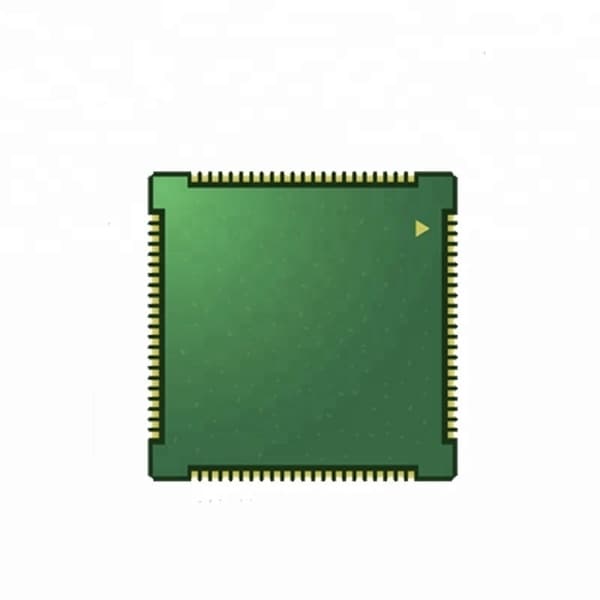

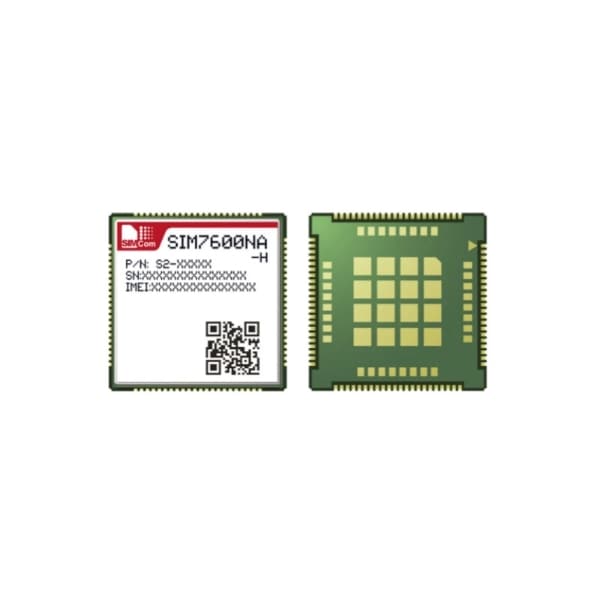

The retained main illustration is labelled SIM7600NA-H. Another gallery image is labelled SIM7600SA; the underside-only image does not identify a specific model. These mixed references do not establish the Cat 1 ordering code offered.
SIM7600 non-H and SIM7600-H are different product groups: the manufacturer describes the non-H series as LTE Cat 1 and the H series as LTE Cat 4. The Cat 1 description below applies to the non-H configuration only.
Confirm the full regional suffix, hardware revision, firmware and supplied form factor before ordering. A bare module, MiniPCIe assembly, M.2 assembly, breakout board and USB Dongle require separate identification. Migration or package compatibility statements are not a guarantee of drop-in replacement.
Reference: SIMCom non-H series and SIMCom H-series MiniPCIe. Request a quote with the complete model and required form factor. Batch photographs, included accessories and applicable certification evidence can be confirmed during inquiry.
Non-H Cat 1 series reference
The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.
The SIM7600 series integrates multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.
