Description
Model and photograph scope

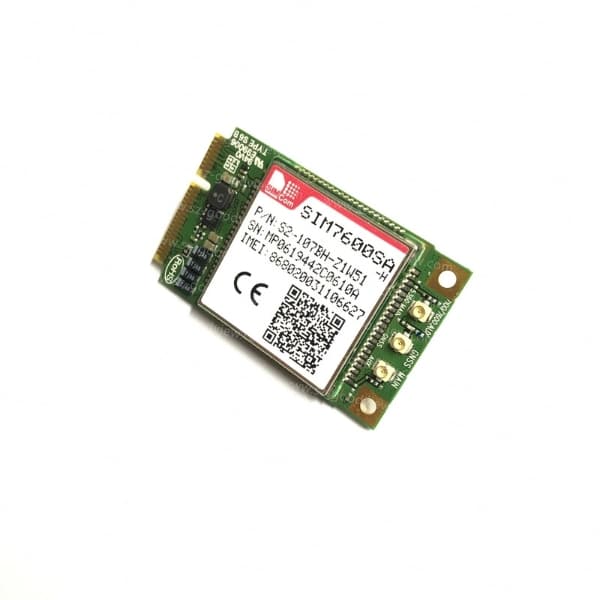

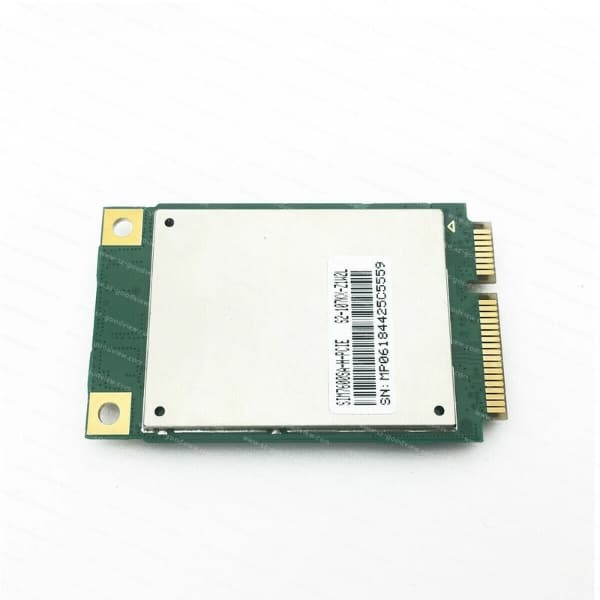

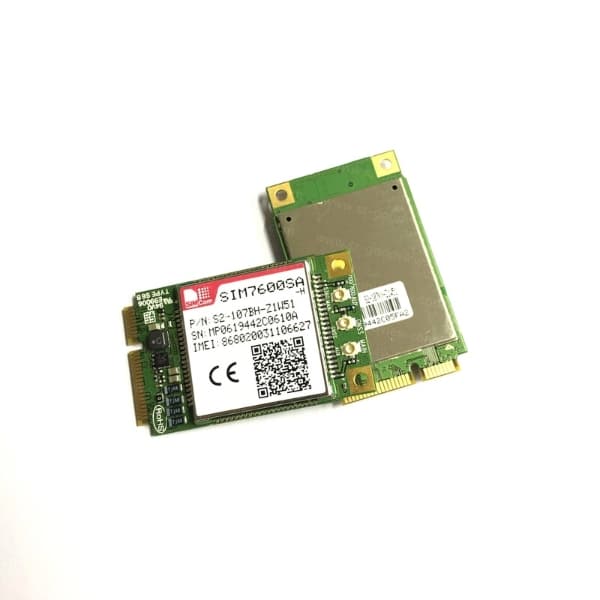

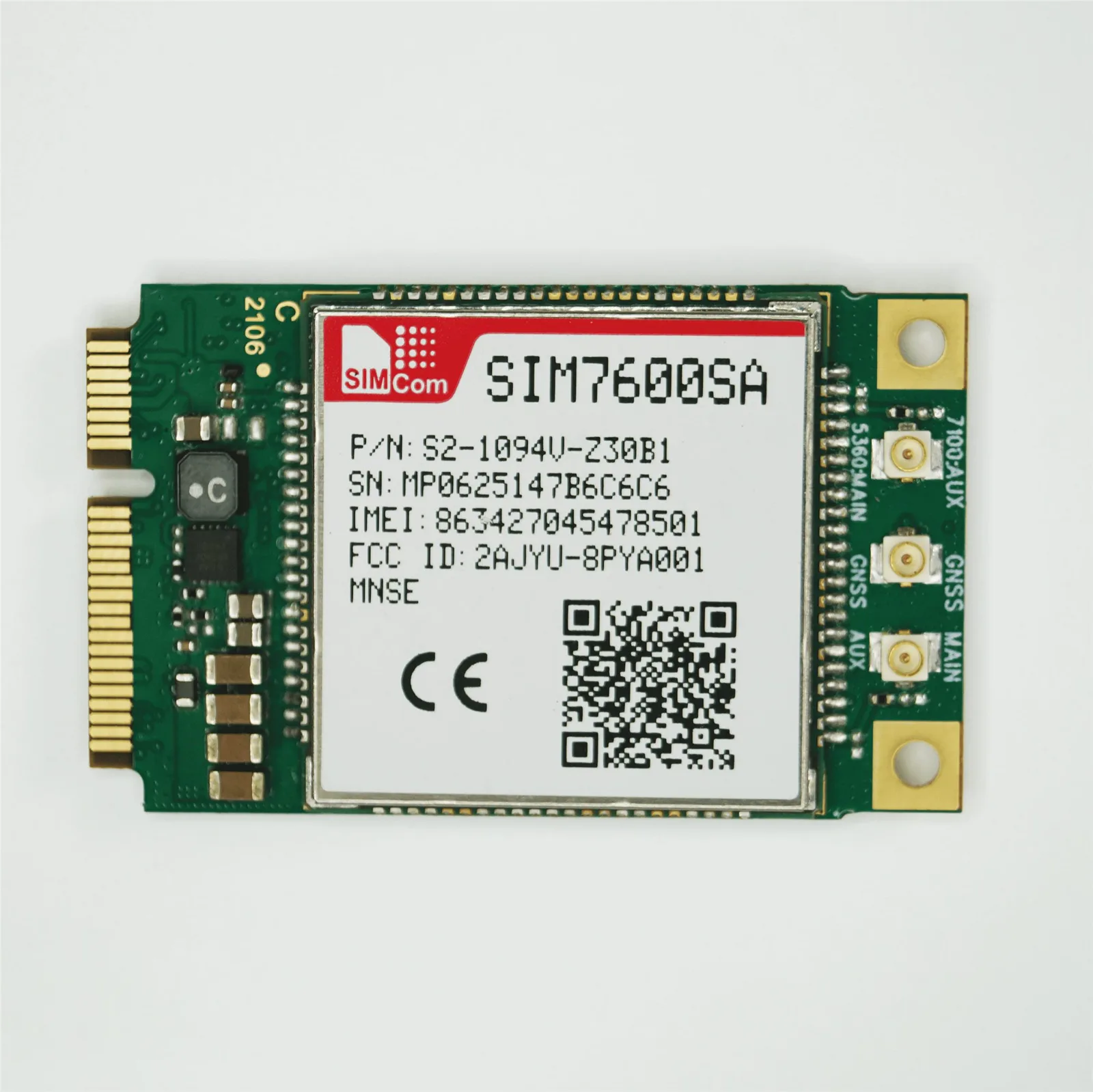

The main reference photograph shows SIM7600SA (without -H), P/N S2-1094V-Z30B1, on a Mini PCIe assembly; its paired reverse view is also included. These are reference-sample photographs, not a current-batch or certification guarantee. Retained SIM7600SA-H front photographs illustrate a different H-series Cat 4 configuration. An underside-only image does not independently identify a module variant.
SIM7600 non-H and SIM7600-H are different product groups: the manufacturer describes the non-H series as LTE Cat 1 and the H series as LTE Cat 4. The Cat 1 description below applies to the non-H configuration only.
Confirm the full regional suffix, hardware revision, firmware and supplied form factor before ordering. A bare module, MiniPCIe assembly, M.2 assembly, breakout board and USB Dongle require separate identification. Migration or package compatibility statements are not a guarantee of drop-in replacement.
Reference: SIMCom non-H series and SIMCom H-series MiniPCIe. Request a quote with the complete model and required form factor. Batch photographs, included accessories and applicable certification evidence can be confirmed during inquiry.
Non-H Cat 1 series reference
LTE Cat.1
The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7600-PCIE series adopts mini PCIE form factor and consists of a SIM7600 series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7600-PCIE series integrates multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.
