Description
Overview
The Quectel EG915N is an LTE Cat-1 module built for M2M and IoT applications, delivering up to 10 Mbps downlink and 5 Mbps uplink in an ultra-compact LGA package (23.6 x 19.9 x 2.4 mm). It comes in EU / LA / EA variants for regional coverage, requires a review of footprint, pin assignments, power and firmware when migrating from another module, and supports optional multi-constellation GNSS and VoLTE.
Specification: Download the Quectel EG915N datasheet (PDF)

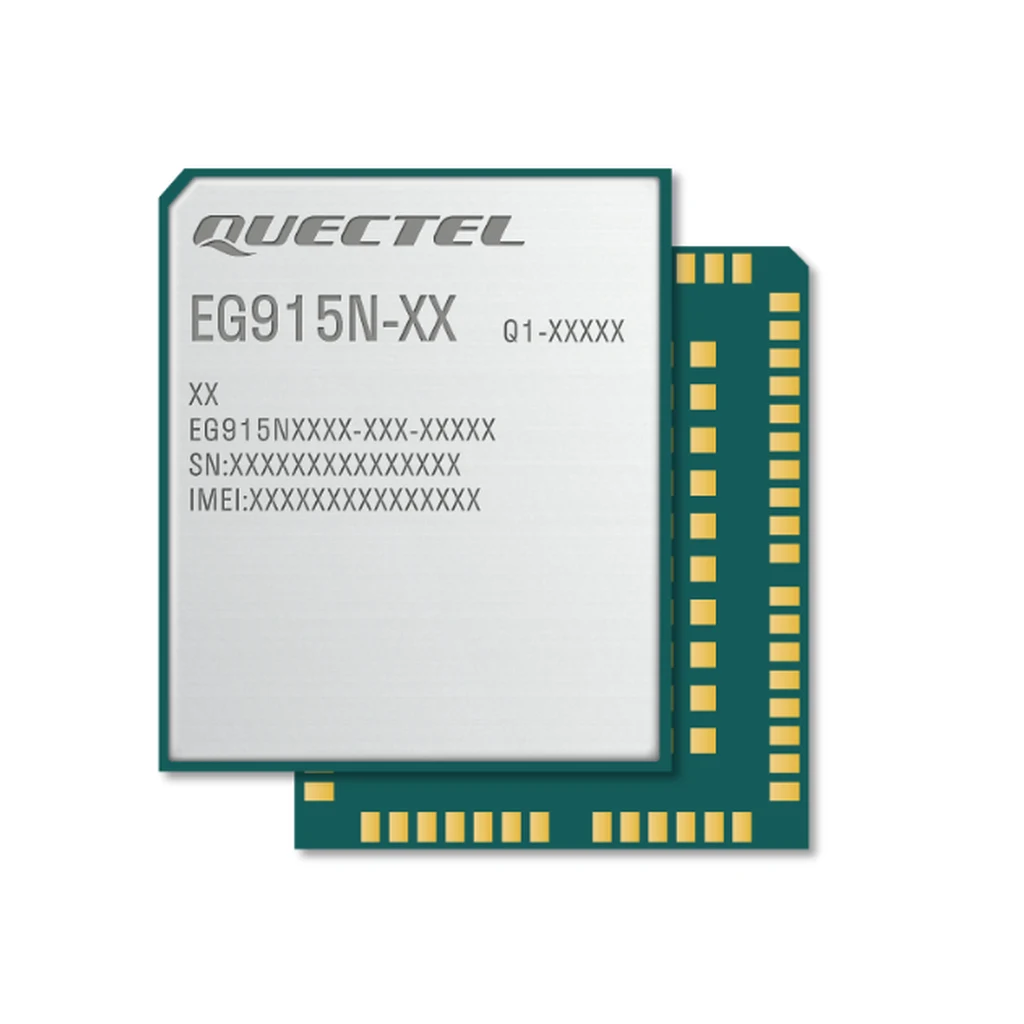

Series illustration: EG915N-XX is not a regional or batch label. Retained Chinese reference: EG915N series V1.6. Official English EG915N series specification V1.7. Select EU, LA or EA and confirm optional functions with your quotation.
Key specifications
| Technology | LTE Cat-1 (3GPP Rel-9) |
|---|---|
| LTE bands | FDD: EU B1/3/7/8/20; LA B2/3/4/5/7/8/28/66; EA B1/3/7/8/20/28 with optional B5. TDD: LA optional B40; EA optional B38/B40/B41. Confirm optional bands for the supplied part number (V1.7, page 2). |
| Data rate | 10 Mbps down / 5 Mbps up (LTE-FDD) |
| Form factor | LGA, 23.6 x 19.9 x 2.4 mm, approx. 2.46 g |
| Variants | EG915N-EU / -LA / -EA |
| Supply voltage | 3.4 – 4.5 V (typical 3.8 V) |
| Temperature | -35 to +75 C (extended -40 to +85 C) |
| Interfaces | USB 2.0, UART (main/debug; auxiliary under development in V1.7), USB_BOOT, main antenna and optional GNSS antenna |
| GNSS (optional) | GPS / GLONASS / Galileo / BDS / QZSS |
| Features | VoLTE, SSL/FILE/MQTT/MMS/SMTP, USB RNDIS/ECM drivers |
Ideal for smart metering, trackers, industrial terminals and M2M/IoT devices that need compact LTE Cat-1 connectivity and an easy upgrade path from legacy 2G/3G modules.
