Description
Overview

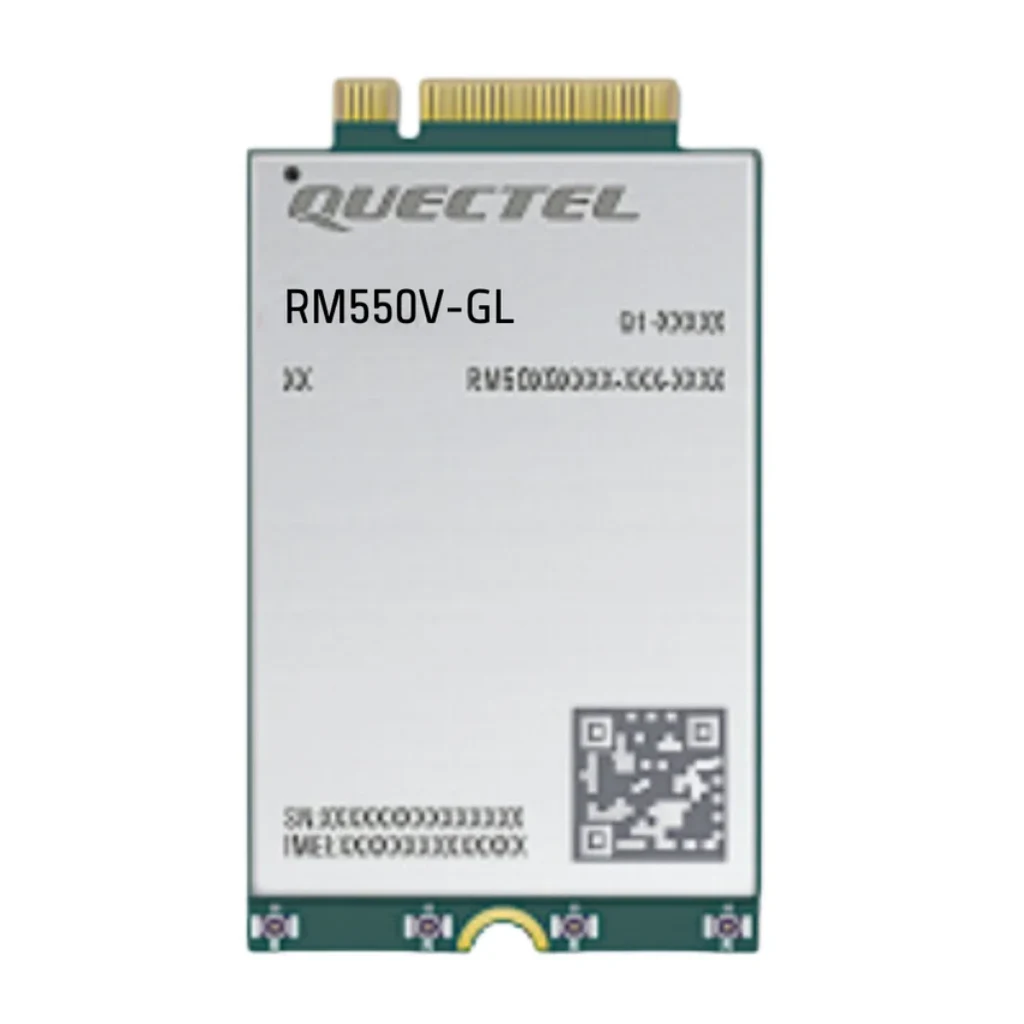

The Quectel RM550V-GL is a 5G Sub-6 GHz module in the standard M.2 (Key B) form factor, built to 3GPP Release 17 and optimized for IoT / eMBB applications. It supports both 5G NSA and SA modes across global markets, with up to 3 downlink component carriers and 200 MHz NR bandwidth, LTE Cat 20 (DL) / Cat 18 (UL) fallback and UMTS WCDMA. It integrates optional multi-constellation GNSS and offers flexible PCIe 3.0 and USB 3.1 / 2.0 interfaces for CPE, routers, gateways and industrial terminals.
Specification: Download the Quectel RM550V-GL datasheet (PDF)
Key specifications
- Form factor: M.2 (Key B), 30.0 × 52.0 × 2.3 mm
- Network: 5G Sub-6 GHz NSA / SA (3GPP Release 17), global coverage
- Platform: Qualcomm Snapdragon SDX72
- 5G CA / bandwidth: up to 3 DL CA, 200 MHz NR bandwidth
- LTE Cat 20 DL / Cat 18 UL; LTE-FDD/TDD + UMTS WCDMA
- Interfaces: (U)SIM × 2, USB 2.0 / 3.0 / 3.1, PCIe 3.0
- GNSS (optional): GPS / GLONASS / BeiDou / Galileo
- eSIM: supported (built-in optional)
