Overview
The Quectel EC200U is an LTE Cat-1bis module built to 3GPP Release 13 and optimized for M2M and IoT applications. It delivers up to 10 Mbps downlink and 5 Mbps uplink in a compact LCC form factor (28.0 x 31.0 x 2.4 mm), comes in CN/EU/AU variants for worldwide LTE coverage, and offers USB 2.0, UART and optional GNSS.
Specification: Download the Quectel EC200U datasheet (PDF)

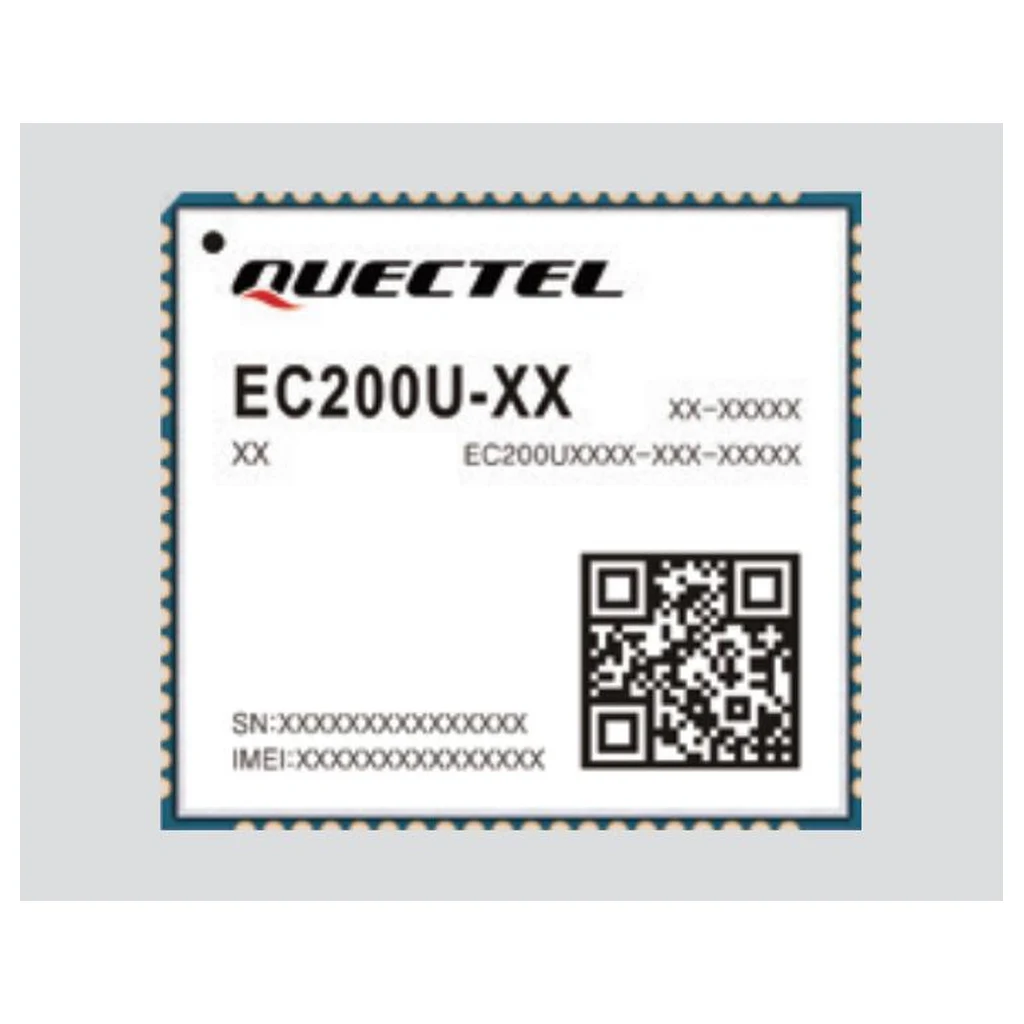

Series illustration: EC200U-XX is not a batch label. The retained EC200U series specification V1.8 covers CN, EU and AU variants. Select the regional variant and optional features for your project; bare modules and Mini PCIe versions require separate selection. Official EC200U series specification V1.8.
Key specifications
| Technology | LTE Cat-1bis (3GPP Rel-13) |
|---|---|
| LTE bands (EU) | FDD B1 / B3 / B5 / B7 / B8 / B20 / B28; TDD B38 / B40 / B41 |
| Data rate | 10 Mbps down / 5 Mbps up (FDD); 8.96 / 3.1 Mbps (TDD) |
| Form factor | LCC, 28.0 x 31.0 x 2.4 mm |
| Variants | EC200U-CN / EC200U-EU / EC200U-AU |
| Supply voltage | 3.3 – 4.3 V (typical 3.8 V) |
| Temperature | -35 to +75 C (extended -40 to +85 C) |
| Interfaces | USB 2.0, UART x3, analog audio, GNSS antenna (optional) |
| GNSS (optional) | GPS / BDS / Galileo / GLONASS / QZSS |
| Drivers | USB RNDIS (Windows 10/11), USB ECM (Linux 2.6-6.7) |
Ideal for smart metering, trackers, industrial terminals and global IoT devices that need reliable LTE Cat-1bis connectivity with a compact footprint.
