Description
Overview

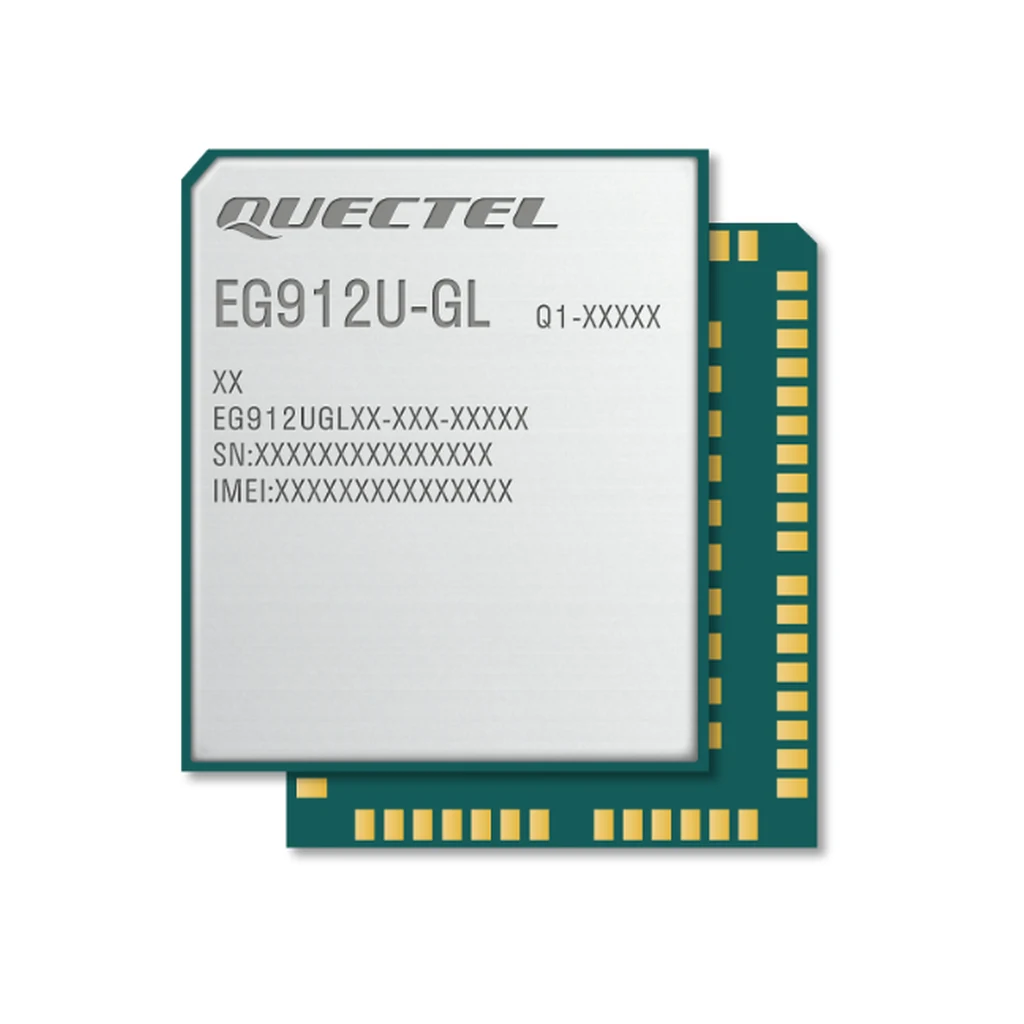

The Quectel EG912U-GL is an LTE Cat-1 module built for M2M and IoT applications, delivering up to 10 Mbps downlink and 5 Mbps uplink with global band coverage. It comes in a compact LGA package (29.0 x 25.0 x 2.4 mm), supports optional multi-constellation GNSS and low-power Bluetooth, and includes VoLTE, DFOTA, QuecLocator and a rich protocol stack for worldwide deployment.
Specification: Download the Quectel EG912U-GL datasheet (PDF)
Key specifications
| Technology | LTE Cat-1 (3GPP Rel-13) |
|---|---|
| Region | Global |
| LTE bands | FDD B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66; TDD B34/38/39/40/41 |
| Data rate | 10 Mbps down / 5 Mbps up (FDD); 8.96 / 3.1 Mbps (TDD) |
| Form factor | LGA, 29.0 x 25.0 x 2.4 mm |
| Supply voltage | 3.3 – 4.3 V (typical 3.8 V) |
| Temperature | -35 to +75 °C (extended -40 to +85 °C) |
| Interfaces | USB 2.0, UART x3, antennas x3 (main / GNSS / Wi-Fi-BT) |
| GNSS (optional) | GPS / GLONASS / BDS / Galileo / QZSS |
| Features | VoLTE, DFOTA, QuecLocator, low-power Bluetooth (optional), SSL/FILE/MQTT/MMS/SMTP |
Ideal for smart metering, trackers, industrial routers and M2M/IoT devices that need global LTE Cat-1 connectivity with optional positioning.
