Description
Product identity and supplied items
Evaluate an A7672E-based design with a matched TE board and evaluation-board configuration. Confirm the board set and accessories before ordering.

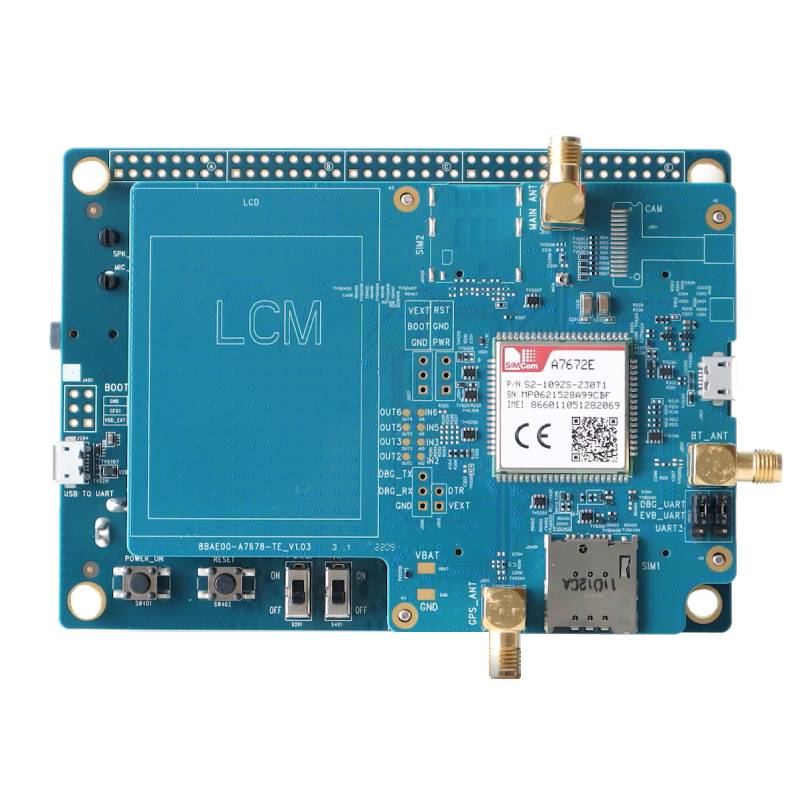

The retained image shows an A7672E module on a TE/evaluation assembly. The larger PCB marking reads BBAE00-A7678-TE_V1.03; the image alone does not define the complete kit contents.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
SIMCom manufacturer A7672E TE-Kit and EVB-Kit introduction, 2022-08-15; current retained assembly photograph. A matching revision-specific kit guide and packing list remain to be confirmed.
| Sales form | Evaluation hardware, distinct from the separately listed bare A7672E module. |
|---|---|
| Supply contents | Confirm TE board, EVB/baseboard, exact module P/N, antennas, cables and power adapter in the quotation. |
| Visible interfaces | Photograph shows RF connectors, USB connections, SIM slots and labeled breakout areas. Labels do not prove all optional functions are fitted or enabled. |
| Hardware revision | Match the TE and EVB revisions to the user guide before selecting jumpers, power input or UART voltage. |
| Radio and options | Use the fitted A7672E version for LTE bands, GNSS/BLE availability and firmware. Board and module supply voltages must not be interchanged. |
Selection and integration
Confirm operating-system drivers and test procedure. Similar module footprints or AT commands do not establish drop-in board compatibility; the A7672G, A7672E R2 and generic A7672X guides are not automatic substitutes.
Documents and compliance
Retained original technical links:
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
