Description
Product identity and supplied items
EG065K-NA is the North American regional variant of the EG065K Cat 6 module. Confirm the complete P/N and radio configuration for the destination network.

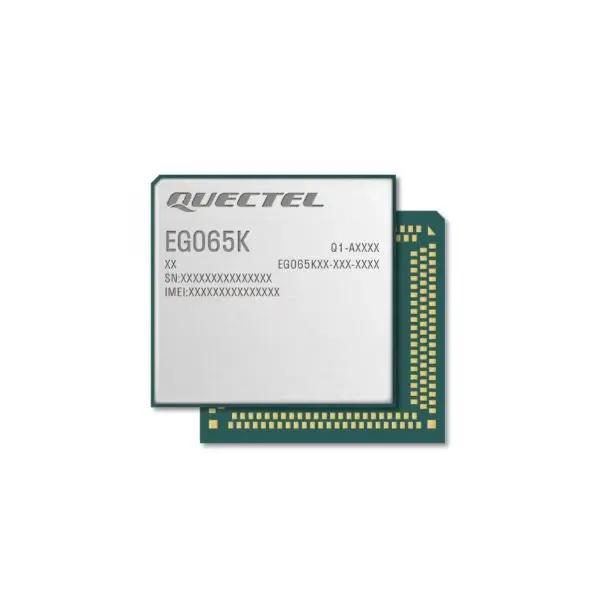

The retained illustration reads EG065K with generic XX identifiers. It does not identify an NA batch.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Quectel EG065K Series Hardware Design V1.0, 2023-09-01, printed pages 12-16, read alongside the current manufacturer catalogue. EA and NA have different network scopes.
| Package | 230-pad LGA; 28.0 x 31.0 x 2.4 mm; approximately 5.3 g. |
|---|---|
| NA bands | LTE FDD B2/4/5/7/12/13/14/25/26/30/66. V1.0 does not list TDD or WCDMA for NA. |
| Peak LTE rates | FDD up to 300 Mbps downlink / 75 Mbps uplink; network and configuration dependent. |
| Supply | 3.3-4.5 V, typical 3.8 V. |
| Interfaces | USB 2.0/3.0 and UART. PCIe is RC mode only in V1.0, not evidence of a PCIe endpoint modem interface. |
| EA distinction | EA adds a different FDD set and TDD B40; its WCDMA entry is marked under development in V1.0. Do not transfer these capabilities to NA. |
Selection and integration
Check host wiring, antenna matching, firmware and operator requirements. Request current hardware revisions and independent evidence for the quoted NA configuration.
Documents and compliance
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
