Description
Product identity and supplied items
EG12-GT is the TDD 3.5 GHz variant in the EG12 family. Confirm the target band and carrier-aggregation combination for the intended private or public network.

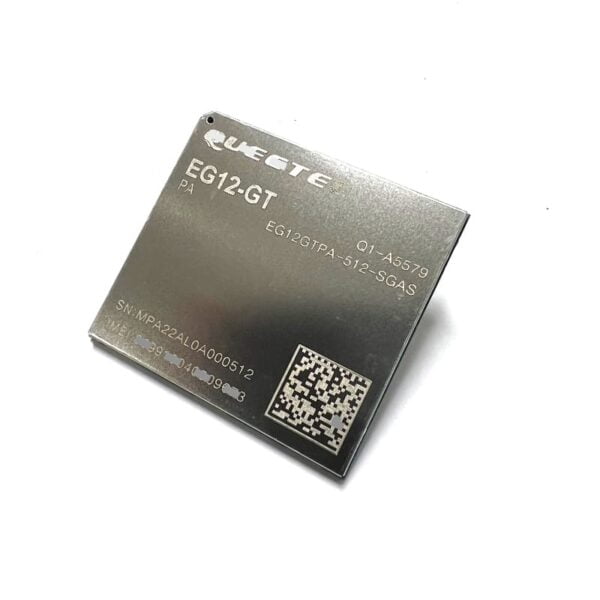

The retained photograph reads EG12-GT / EG12GTPA-512-SGAS. It is distinct from EG12-EA and EG12-NA.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Quectel EG12 Hardware Design V1.1, 2019-09-30, printed pages 12-14 and electrical section. Current manufacturer catalogue V8.6 still lists the GT band scope; obtain current hardware and firmware revisions.
| Package | 299-pad LGA; 37.0 x 39.5 x 2.8 mm. |
|---|---|
| GT radio scope | LTE TDD B42/B43/B48. The V1.1 comparison does not support FDD or WCDMA for GT; those family capabilities belong to other variants. |
| CA reference | V1.1 lists DL 2CA/3CA on B42 and B48; UL 2CA B42+B42. Confirm actual firmware and operator combinations. |
| Performance boundary | Use GT-specific TDD performance. Do not apply the family FDD 600/150 Mbps headline to a GT-only requirement. |
| Supply | 3.3-4.3 V, typical 3.8 V; confirm all supply pins and peak-current design in the matched guide. |
| Options | V1.1 lists optional GPS, GLONASS, BeiDou, Galileo and QZSS for GT. Confirm the fitted option and antenna path; voice also depends on the version. |
Selection and integration
Review board land pattern, RF paths and TDD network licensing with the system integrator. EG12, EG120K and EG18 are separate products even when outlines appear similar.
Documents and compliance
- Manufacturer EG12 hardware design V1.1 – GT comparison
- Current manufacturer catalogue – EG12 regional comparison
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
