Description
Product identity and supplied items
EM05-E and EM05-G are distinct regional M.2 Cat 4 modules. Select the exact suffix before comparing bands or optional features.

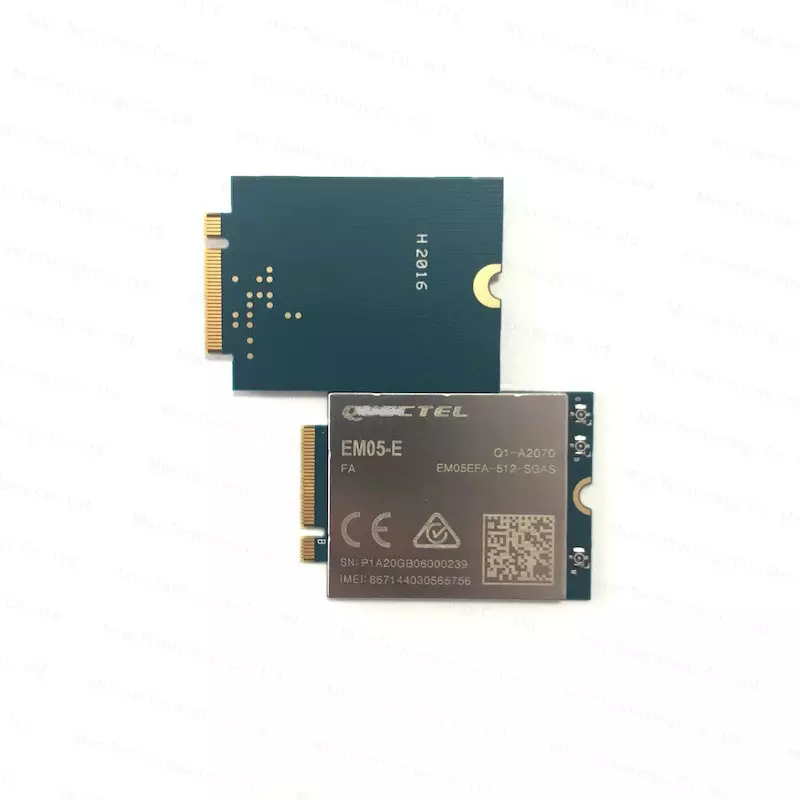

The retained photograph reads EM05-E / EM05EFA-512-SGAS. It does not show EM05-G; G batch photographs can be confirmed during enquiry.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Local Quectel EM05 Series Specification V1.7 (Chinese, copyright 2024), pages 1-2. Separate hardware references: EM05 V1.2, 2020-01-07, and EM05-G V1.0, 2021-12-10.
| Shared form and supply | M.2, 30.0 x 42.0 x 2.3 mm; 3.135-4.4 V, typical 3.3 V. |
|---|---|
| EM05-E LTE | FDD B1/3/7/8/20/28; TDD B38/41; WCDMA B1/8. |
| EM05-G LTE | FDD B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71; TDD B38/39/40/41; WCDMA B1/2/4/5/6/8/19. |
| Peak rates | FDD up to 150 Mbps downlink / 50 Mbps uplink; TDD up to 130 / 30 Mbps. |
| Interfaces and options | USB 2.0 and one SIM interface. GNSS is optional. The V1.7 comparison assigns CDMA/EVDO BC0 to EM05-CN, not E or G. |
| Temperature | Normal -30 to +70 C; extended -40 to +85 C. Voice, eSIM and driver support vary by variant. |
Selection and integration
Use the correct E or G guide and firmware. A shared M.2 outline is not evidence of identical pins, antenna routing, audio or operator approval. Request a current manufacturer specification with the quotation.
Documents and compliance
Retained original technical links:
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
Retained image archive
Historical product and company images are preserved; unrelated components do not verify this model.
