Description
EG95-E overview
EG95-E is a surface-mount LTE Cat 4 module for M2M and IoT designs targeting EMEA networks. It combines a 29.0 x 25.0 x 2.3 mm LGA package with LTE-FDD data rates up to 150 Mbps downlink and 50 Mbps uplink. Check its band set against your destination country and operator before selecting the module.
Product identity and supply scope
| Item | Details |
|---|---|
| Manufacturer / engineering model | Quectel / EG95-E |
| Product format | Bare LGA module for surface-mount integration into a host PCB. |
| Ordering code | Provide your complete manufacturer part number or BOM reference. The full orderable suffix and firmware configuration must be confirmed in the quotation. |
| Supply contents | Request the EG95-E module quantity you need. Ask for the quoted packing format and included items. Development boards, USB adapters, antennas, cables and SIM cards require separate confirmation. |
| EG95-EX requests | State EG95-EX explicitly if that is your intended variant. Confirm its complete ordering code before placing an order. |
The product illustration shows the EG95 family and does not identify a quoted production lot. Request a label photograph for the offered part when verifying the ordering code.
EG95-E technical specifications
| Parameter | EG95-E |
|---|---|
| Cellular category | LTE Cat 4, 3GPP Release 11 |
| Target region | EMEA; check country, operator and required bands |
| Package / integration | LGA, surface-mount; 106 pads |

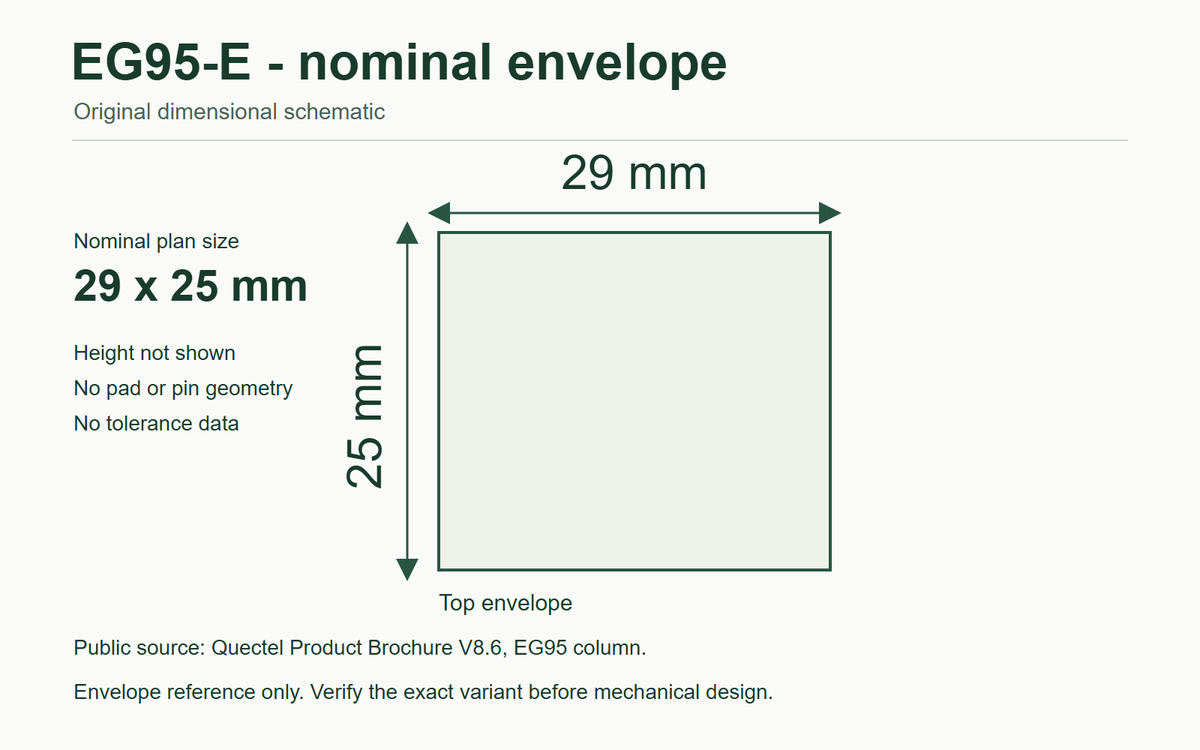

| Nominal dimensions | 29.0 x 25.0 x 2.3 mm |
| LTE-FDD bands | B1/B3/B7/B8/B20/B28A |
| LTE-TDD | Not listed for EG95-E |
| WCDMA bands | B1/B8 |
| GSM / EDGE bands | B3/B8 (1800/900 MHz) |
| LTE-FDD peak data rate | 150 Mbps downlink / 50 Mbps uplink |
| DC-HSPA+ peak data rate | 42 Mbps downlink / 5.76 Mbps uplink |
| Module supply | 3.3-4.3 V; 3.8 V typical |
| USB / UART | USB 2.0 x 1; UART x 2; UART logic level 1.8 V |
| SIM interfaces | (U)SIM x 2; these are module interfaces, not supplied SIM cards |
| Other interfaces | PCM, I2C, SPI, NETLIGHT, PWRKEY, RESET_N and USB_BOOT |
| RF interfaces | Main cellular antenna and receive-diversity antenna |
| Integrated GNSS | Not supported on EG95-E |
| Normal operating temperature | -35 C to +75 C, with appropriate thermal design |
| Extended operating temperature | -40 C to +85 C; some RF performance may fall outside normal 3GPP tolerances |
| Firmware updates | USB and DFOTA |
| Voice | Digital audio / VoLTE optional; confirm firmware and operator requirements |
Peak data rates are specification limits, not measured application throughput. Network configuration, signal conditions, antennas and host design affect performance. Legacy 2G/3G capability is useful only where the relevant network remains available. A module interface list does not establish driver support for a particular host release; confirm the required operating system and driver package during selection.
EG95-E or EG95-EX?
Both variants target EMEA applications, but the suffix changes the selection. Compare the values below before requesting a quotation.
| Selection point | EG95-E | EG95-EX |
|---|---|---|
| Nominal LGA dimensions | 29.0 x 25.0 x 2.3 mm | 29.0 x 25.0 x 2.45 mm |
| LTE-FDD bands | B1/B3/B7/B8/B20/B28A | B1/B3/B7/B8/B20/B28 |
| WCDMA / GSM-EDGE | B1/B8 / B3/B8 | B1/B8 / B3/B8 |
| LTE-FDD peak DL / UL | 150 / 50 Mbps | 150 / 50 Mbps |
| Integrated GNSS | Not supported | Optional GPS/GLONASS/BDS/Galileo/QZSS |
| Ordering decision | Confirm full EG95-E code and firmware | Confirm full EG95-EX code, firmware and GNSS option |
B28A and B28 are retained exactly as listed by the manufacturer. Do not treat the two suffixes as interchangeable. For a replacement design, review the footprint, pin functions, power supply, RF layout, firmware, drivers and approval requirements before committing to a part.
Technical documents
- EG95 Series LTE Standard Specification, V2.5, Released: View PDF. Five pages; use page 4 for EG95-E and EG95-EX.
- Hardware design resources: Quectel EG95 documentation. A Quectel login may be required for hardware design downloads. Confirm the document revision that applies to your ordering code.
- Other module documentation: Muziot datasheet center.
Compliance documentation for your project
Ask for model-specific compliance documents for the part quoted and the country of use. The document package should identify the model, approval holder, document number, issue date, hardware or firmware restrictions, and applicable integration conditions. Certification names in a series datasheet do not establish approval for every ordering code or for a finished host device.
Request documents for your target market
Selecting EG95-E for your design
- Match B1/B3/B7/B8/B20/B28A to the target network, including any operator approval requirements.
- Confirm the bare-module format. If you need a plug-in adapter or development board, specify that separately. See LGA, M.2 and mini PCIe module formats.
- Check the host supply, UART voltage, USB driver and antenna layout against the applicable hardware documentation.
- If positioning is required, compare the optional GNSS configuration of EG95-EX or specify a separate GNSS solution.
- Validate the selected part and firmware in your own host design before production.
EG95-E can be considered for industrial connectivity, remote monitoring and other M2M equipment that needs LTE Cat 4 connectivity. Suitability depends on your interface, network, thermal and compliance requirements.
Request a quote for your exact module
Send your target model or application, destination country and quantity. Include a complete part number if you have one. After your inquiry, discuss the offered ordering code, quotation scope, EG95-E lot photographs and model-specific compliance document requirements with Muziot. The configuration and applicable documents should be checked before ordering.
You can also use Contact Muziot. Availability, packing and delivery terms are subject to the quotation.
Technical reference: Quectel EG95 Series LTE Standard Specification V2.5, page 4, and EG95 Series Hardware Design, Chinese V1.4 (21 October 2024), relevant EG95-E sections. Confirm the applicable hardware documentation and firmware requirements during selection.
