Description
EG060K-EA overview

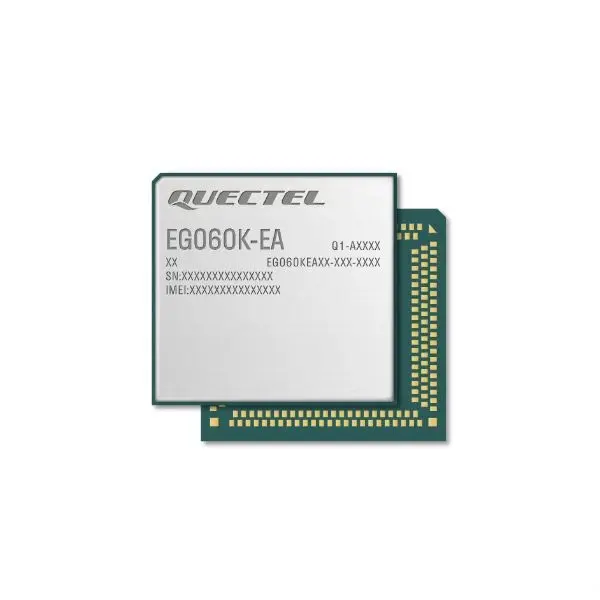

Quectel EG060K-EA is a bare LGA LTE-A Cat 6 module. The EA row in Quectel’s Product Brochure V8.6 lists LTE-FDD peak rates of 300 Mbps downlink and 50 Mbps uplink. These are specification maxima; actual throughput depends on the network and supported carrier aggregation combinations.
Quectel lists EG060K alongside EG06, EG12 and EG18 for migration. Review pin assignments, power supply and firmware before substituting a module.
GNSS is listed for the EG060K family. Confirm the GNSS configuration, antenna requirements and firmware for the complete EG060K-EA ordering code.
For a router or gateway design, check the host interface and driver package for your operating system. If you need a card or adapter, describe your host connector and interface during your inquiry. See LGA, M.2 and Mini PCIe module formats.
EA bands and manufacturer documents
The EG060K-EA row in Quectel’s Product Brochure V8.6, printed page 16 (PDF page 19), lists:
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32. B32 is for the secondary component carrier only.
- LTE-TDD: B38/B40/B41. B42 and B43 are optional; confirm them for the quoted ordering code.
- WCDMA: B1/B3/B5/B8. Legacy network use depends on local network availability.
Match the EA band set to your destination country and operator. Other EG060K regional variants have separate band sets.
- Quectel Product Brochure V8.6 (PDF): use the EG060K-EA row.
- EG060K manufacturer documentation: hardware design and software files may require a Quectel account. Use the mechanical drawing and pinout matched to the quoted ordering code.
Send your EG060K-EA requirements
Share your destination country/operator, quantity and host interface with your BOM. Tell us whether you need a bare LGA module or a card or adapter. Our team will confirm the ordering details and configuration during quotation.
