Description

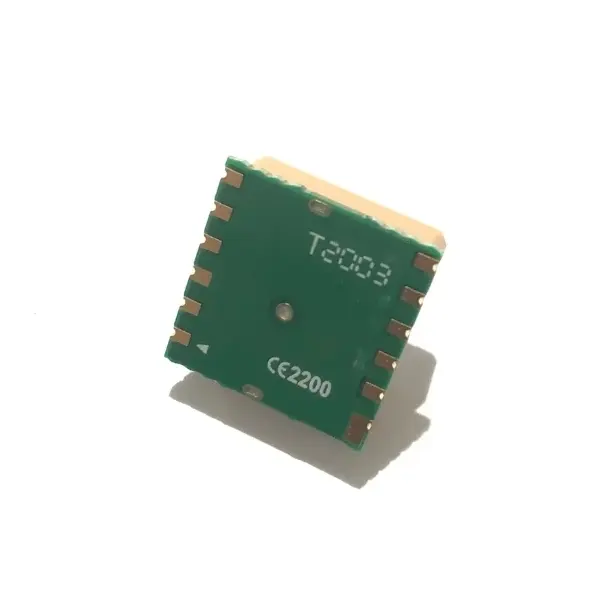

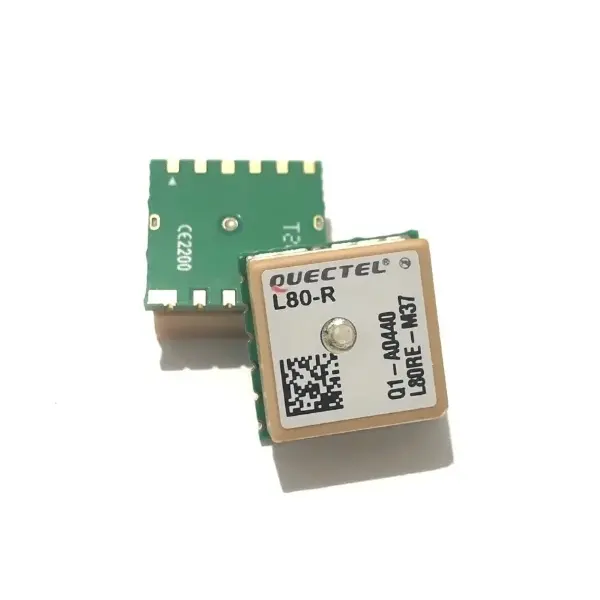

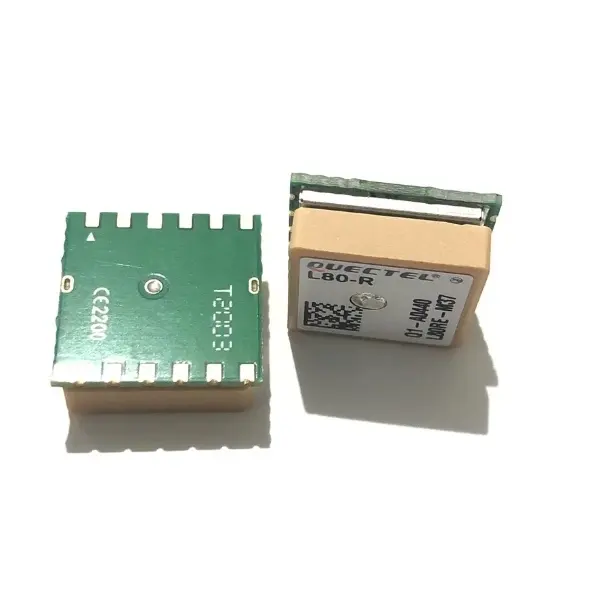

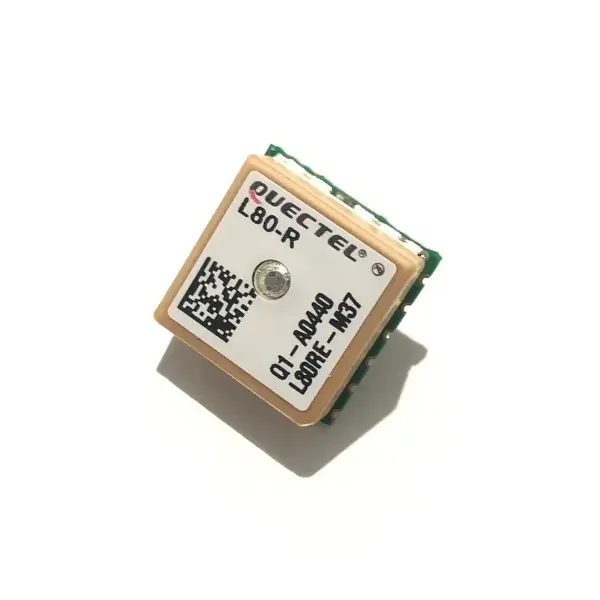

L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna.

This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.
Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L80-R achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80-R can fix position quickly even at indoor signal levels with low power consumption.

With its compact design, high precision and sensitivity, L80-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD

Key benefits
Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm
Extremely compact size: 16.0mm × 16.0mm × 6.45mm
Cost efficient for ROM-based version
Built-in LNA for better sensitivity
EASY™, an advanced AGPS technology without external memory
Ultra low power consumption in tracking mode, 20mA
High sensitivity: -165dBm @Tracking, -148dBm @Acquisition
66 acquisition channels, 22 tracking channels
Support QZSS
Balloon mode, for high altitude up to 80km
PPS VS. NMEA can be used for time service
Anti-Jamming, Multi-tone Active Interference Canceller
