Description
Product identity and supplied items
RG50xQ is a family of solder-down 5G Sub-6 GHz modules. Select the complete RG500Q, RG501Q or RG502Q variant before comparing bands and throughput.

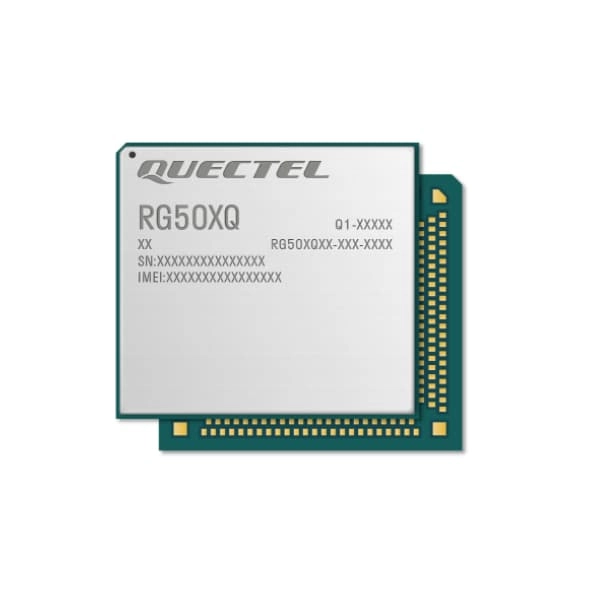

The retained image is an RG50XQ family illustration with placeholder identifiers. It does not prove a specific regional variant.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Quectel RG50xQ Series Specification V1.7, Released, copyright 2023, three pages. The filename includes V1.71 but the document cover reads V1.7. Compare current catalogue revisions before design use.
| Form and supply | LGA, 41.0 x 44.0 x 2.75 mm; 3.3-4.3 V, typical 3.8 V. Normal -30 to +75 C; extended -40 to +85 C. |
|---|---|
| EA group | RG500Q-EA / RG502Q-EA: SA/NSA n1/3/5/7/8/20/28/38/40/41/77/78/79. |
| EU group | RG500Q-EU / RG501Q-EU / RG502Q-EU: SA/NSA n1/3/5/7/8/20/28/38/40/41/77/78. |
| CN and GT | RG500Q-CN: NSA n41/78/79, SA n1/28/41/78/79. RG500Q-GT / RG502Q-GT: SA n78, TDD B42/43; NSA, WCDMA and GNSS are not listed for GT. |
| Performance differences | V1.7 SA downlink: RG500Q/RG501Q up to 2.1 Gbps; RG502Q up to 4.2 Gbps. Use the exact variant/mode table for uplink and NSA limits. |
| Optional features | GNSS and VoLTE are optional where listed. The 650 Mbps NSA uplink footnote assumes LTE and NR uplink 256QAM; LTE uplink 256QAM is disabled by default and was not fully tested. |
Selection and integration
Request the exact CA/EN-DC table, firmware and hardware guide. The old universal 2.5 Gbps/900 Mbps headline mixed different modes; no shared headline proves all family variants. RG50xQ LGA is separate from RM50xQ M.2.
Documents and compliance
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
Retained image archive
Historical product and company images are preserved; unrelated components do not verify this model.
