Description
RG520N and RG520F: choose the series first
Quectel RG520N and RG520F are separate 5G Sub-6 GHz LGA module series based on 3GPP Release 16. Both use a 41.0 x 44.0 x 2.75 mm package, but their peak data rates and regional variants differ. This page separates the RG520N specifications from the RG520F comparison so you can request the intended series and full suffix.
Product identity and supply scope
| Item | Details |
|---|---|
| Primary product reference | RG520N series; specify RG520N-EU, -NA, -EB, -GT or -LA. RG520F requests must explicitly name RG520F and the regional suffix. |
| Sales format | Bare LGA module for surface-mount integration into a host PCB; not an M.2 card, router or USB dongle. |
| Complete P/N | Confirm the complete manufacturer ordering code, firmware and optional functions in the quotation. |
| Supply contents | Specify module quantity and packing. Host boards, evaluation kits, antennas, cables, SIM cards and routers require separate confirmation. |

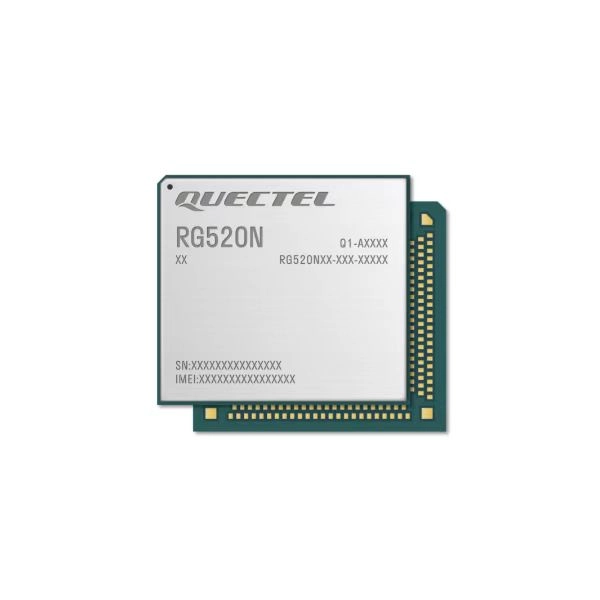

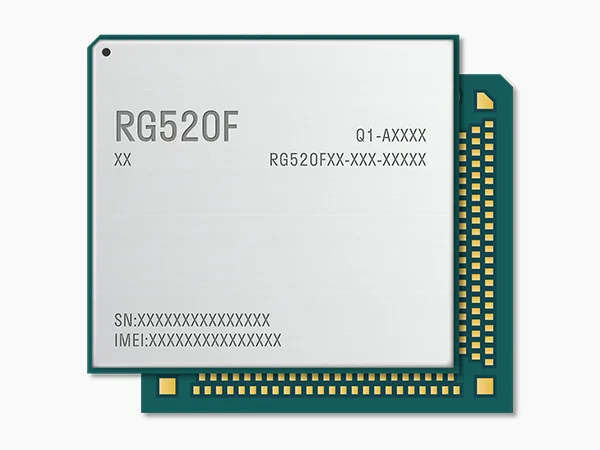

The main image is an RG520N series illustration. The RG520F illustration below is identified separately. Neither image identifies the offered production lot.
RG520N versus RG520F
| Parameter | RG520N series | RG520F series |
|---|---|---|
| Radio technology | 3GPP Release 16, 5G Sub-6 GHz | 3GPP Release 16, 5G Sub-6 GHz |

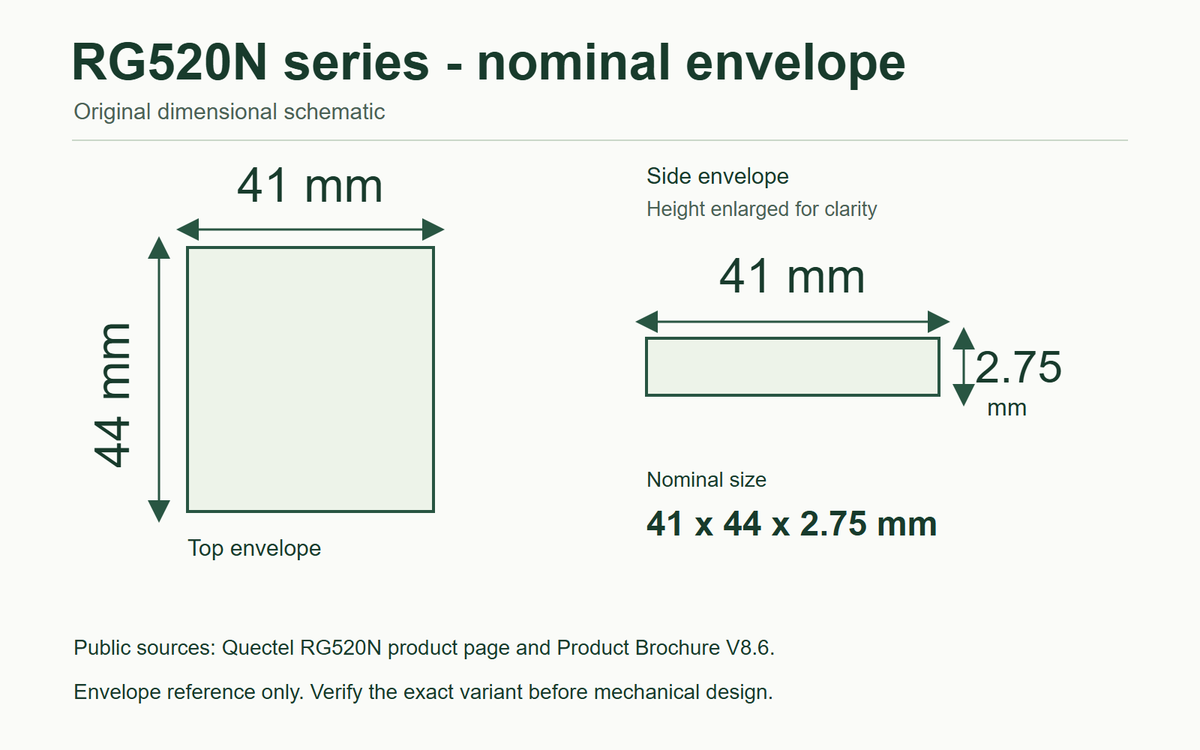

| Package / dimensions | LGA; 41.0 x 44.0 x 2.75 mm | LGA; 41.0 x 44.0 x 2.75 mm |
| 5G SA peak DL / UL | 2.4 Gbps / 900 Mbps | 4.0 Gbps / 900 Mbps |
| 5G NSA peak DL / UL | 3.4 Gbps / 550 Mbps; RG520N-GT is SA only | 4.0 Gbps / 550 Mbps |
| PCIe interface | PCIe 3.0, Gen 3, two lanes | PCIe 3.0, Gen 3, two lanes |
| Regional variants on current product page | EU, NA, EB, GT and LA | EU and NA; confirm any other requested suffix with Quectel. |
| Positioning | Optional multi-constellation GNSS, Qualcomm IZat Gen 9VT | Qualcomm IZat Gen 9VT listed; confirm the offered GNSS configuration. |
| Primary technical reference | RG520N Specification V1.6, pages 1-2 | Quectel Product Brochure V8.6, printed page 4 (PDF page 7), plus the RG520F product page |
These are maximum specification rates under the stated radio modes. Actual throughput depends on network configuration, spectrum, signal conditions, antennas and host design. A common package size does not establish direct replacement compatibility.
RG520N regional selection
| Variant | Manufacturer target region | 5G NR bands / mode |
|---|---|---|
| RG520N-EU | EMEA / APAC excluding China and Japan; Brazil | SA/NSA: n1/3/5/7/8/20/28/38/40/41/75/76/77/78 |
| RG520N-NA | North America | SA/NSA: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/70/71/77/78 |
| RG520N-EB | EMEA / APAC excluding China and Japan; Brazil | SA/NSA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 |
| RG520N-GT | Global TDD 3.5 GHz applications | SA only: n48/77/78; NSA is not listed. |
| RG520N-LA | Latin America excluding Brazil | SA/NSA: n2/5/7/8/28/38 (optional)/40/66/71 (optional)/78 |
Source: RG520N Specification V1.6, page 2. The optional marks for RG520N-LA n38 and n71 are retained. A regional label does not guarantee operation or approval on every network in that region; check your operator and ordering code.
RG520N LTE and legacy network bands
| Variant | LTE-FDD | LTE-TDD / LAA | WCDMA |
|---|---|---|---|
| RG520N-EU | B1/3/5/7/8/20/28/32 | B38/40/41/42/43 | B1/5/8 |
| RG520N-NA | B2/4/5/7/12/13/14/17/25/26/29/30/66/71 | B38/41/42/43/48; LAA B46 | Not listed |
| RG520N-EB | B1/3/5/7/8/20/28/32/71 | B38/40/41/42/43 | B1/5/8 |
| RG520N-GT | Not listed | B42/43/48 | Not listed |
| RG520N-LA | B2/4/5/7/8/26/28/66 | B38 (optional)/40/42/43 (optional) | B2/4/5 |
These band sets apply to RG520N V1.6 and must not be copied to RG520F. Legacy WCDMA operation depends on network availability.
RG520N integration specifications
| Parameter | RG520N series |
|---|---|
| LTE category / peak DL and UL | Cat 19 downlink / Cat 18 uplink; up to 1.6 Gbps / 200 Mbps |
| Module supply | 3.3-4.4 V; 3.8 V typical |
| Normal operating temperature | -30 C to +75 C |
| Extended operating temperature | -40 C to +85 C; follow the applicable hardware guide for operating conditions. |
| USB / UART / SIM | USB 2.0/3.0/3.1 x 1; UART x 3; (U)SIM x 2 |
| Other interfaces | PCIe 3.0 with two lanes; SD card, PCM, I2C, SPI and ADC |
| GNSS option | GPS, GLONASS, BDS, Galileo and QZSS; confirm ordering configuration. |
| Firmware updates | DFOTA |
| Host software | Confirm the supported USB or PCIe driver package for the actual host OS and kernel release. |
RG520F selection notes
The current Quectel RG520F product page identifies RG520F-EU and RG520F-NA. The V8.6 product brochure also includes RG520F-EB; its current orderable status and applicable documentation need confirmation. Request the exact RG520F suffix, band table, hardware guide and firmware package for your project. The RG520N band and interface-count tables above are not RG520F specifications.
Datasheets and technical resources
- Quectel RG520N Series Specification V1.6 (Released PDF): use the regional table and footnotes on page 2.
- Quectel RG520N product and documentation: request the applicable hardware design and software package; some downloads may require a manufacturer account.
- Quectel RG520F product and documentation: use the F-series resources for RG520F inquiries.
- Quectel Product Brochure V8.6 (PDF): RG520N and RG520F comparison on printed page 4 (PDF page 7). This is a product brochure, not an RG520F hardware manual or certificate.
- Muziot datasheet center
Compliance documents for your target market
Request documents that apply to the quoted model and destination market. Check the approval holder, document number, issue date, hardware and firmware restrictions, and host integration conditions. A series datasheet, packaging logo or historical test report alone does not establish the current approval status of the offered part or of your finished device.
Selecting the right module
- Choose RG520N or RG520F and provide the complete regional suffix.
- Check SA/NSA requirements, operator bands and any approval conditions. RG520N-GT is SA only.
- Review power, thermal design, antenna layout and USB/PCIe driver support against the exact hardware guide.
- Confirm the GNSS and voice configuration if required.
- Validate the selected module and firmware in your host before production.
See LGA, M.2 and mini PCIe module formats before selecting a host board or adapter.
Request a quote
Send your target model, destination country, operator and quantity. Include the complete manufacturer part number or BOM reference if available. After your inquiry, discuss the offered ordering code, firmware, packing, lot photographs and model-specific compliance documents with Muziot. Availability and delivery terms are subject to the quotation.
Send your RG520N or RG520F requirements
You can also contact Muziot for selection and documentation requests.
Technical references: Quectel RG520N Specification V1.6 pages 1-2, Quectel Product Brochure V8.6 printed page 4 (PDF page 7), and the separate RG520N / RG520F official pages checked 10 September 2026 UTC. Model-specific certification and supply configurations are confirmed after inquiry.
