Description
Overview

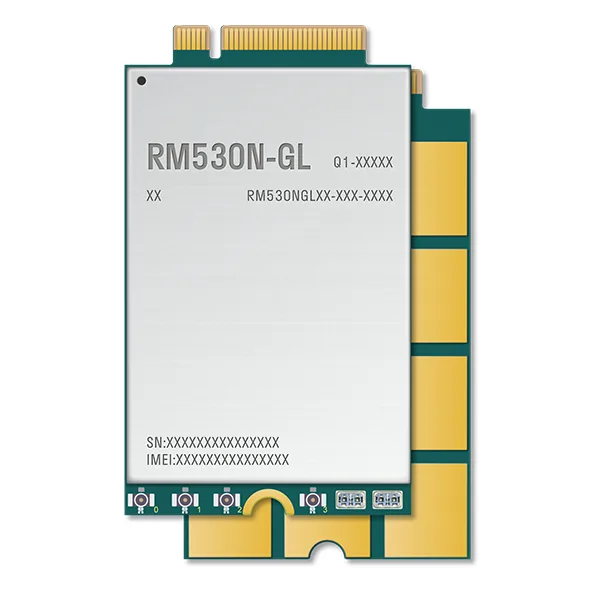

The Quectel RM530N-GL is a 5G Sub-6 GHz and mmWave M.2 (Key B) module for IoT and eMBB applications. The RM530N-GL specification, Version 1.1, states support for 3GPP Release 16, NSA and SA modes, LTE Cat 19 downlink / Cat 18 uplink fallback, and optional multi-constellation GNSS.
Product identification and supply scope
- Model: Quectel RM530N-GL.
- Form: M.2 (Key B) module, 30.0 x 52.0 x 2.3 mm.

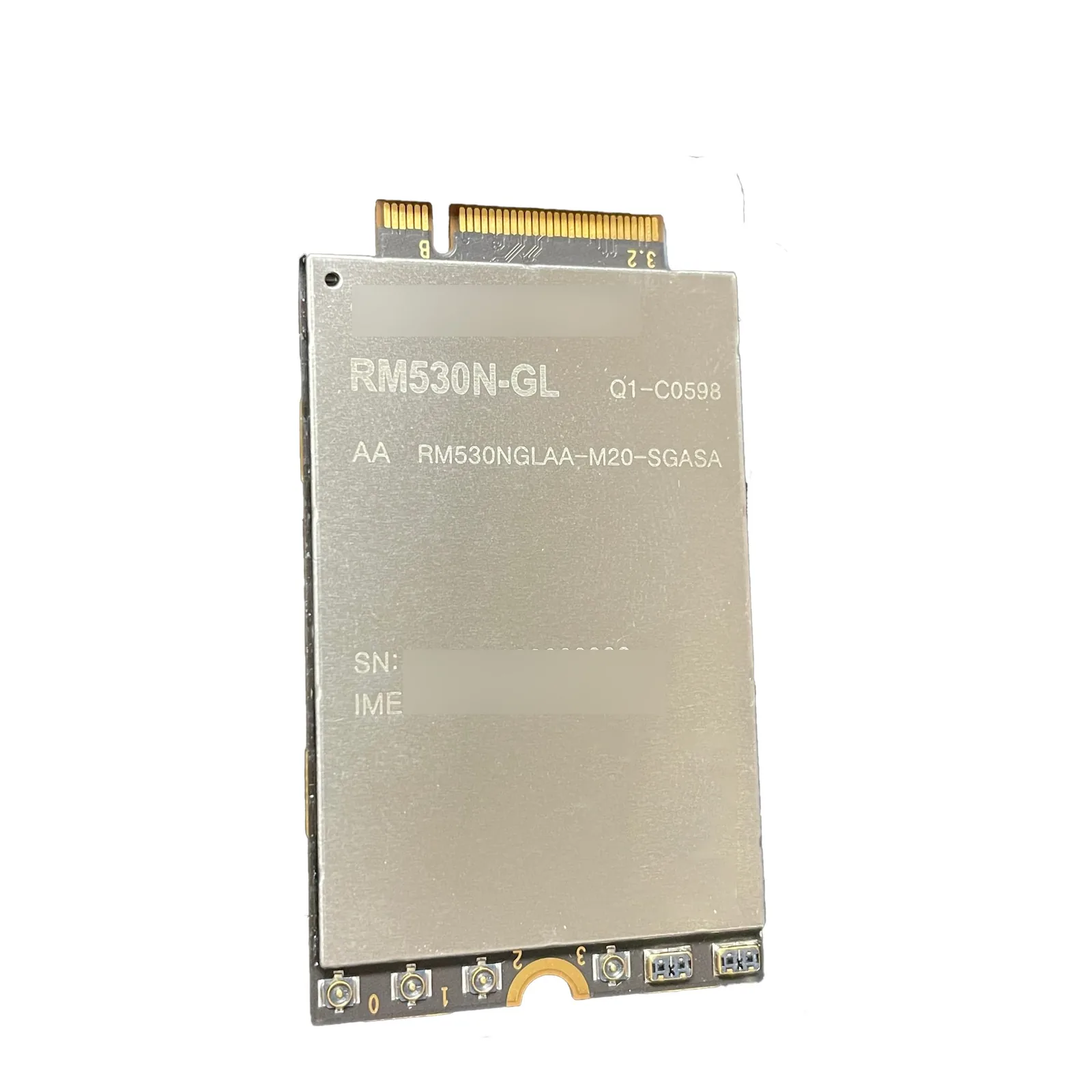

- Photographed ordering code: RM530NGLAA-M20-SGASA. This identifies the reference photograph only; the offered P/N, firmware, revision and packing are confirmed for each inquiry.
- Antennas, host system, carriers, SIMs and cables are separate items unless expressly included in the quotation.
Key specifications
| Item | RM530N-GL reference |
|---|---|
| Form factor | M.2 (Key B), 30.0 x 52.0 x 2.3 mm, approx. 8.7 g |
| 5G modes | 5G NR Sub-6 and mmWave; NSA and SA |
| LTE / UMTS fallback | LTE Cat 19 DL / Cat 18 UL; LTE FDD/TDD, LAA and UMTS WCDMA |
| Peak rates | 5G NSA mmWave DL 4.0 Gbps / UL 1.4 Gbps; NSA Sub-6 DL 3.4 Gbps; SA Sub-6 DL 2.4 Gbps. The specification states actual rates depend on network conditions. |
| Interfaces | (U)SIM x 2, USB 2.0, USB 3.0/3.1, PCIe 3.0 and six antenna connections |
| GNSS | Optional GPS, GLONASS, BDS, Galileo and QZSS |
| Operating temperature | -30 to +75 degrees C; extended -40 to +85 degrees C |
Technical document and selection
Specification: Download the Quectel RM530N-GL datasheet (PDF)
Confirm the complete ordering code, target bands, mmWave antenna system, carrier approval, GNSS option, firmware and host design before release. The specification marks carrier and regulatory status as TBD; request current configuration-specific documentation for the intended market.
