Description

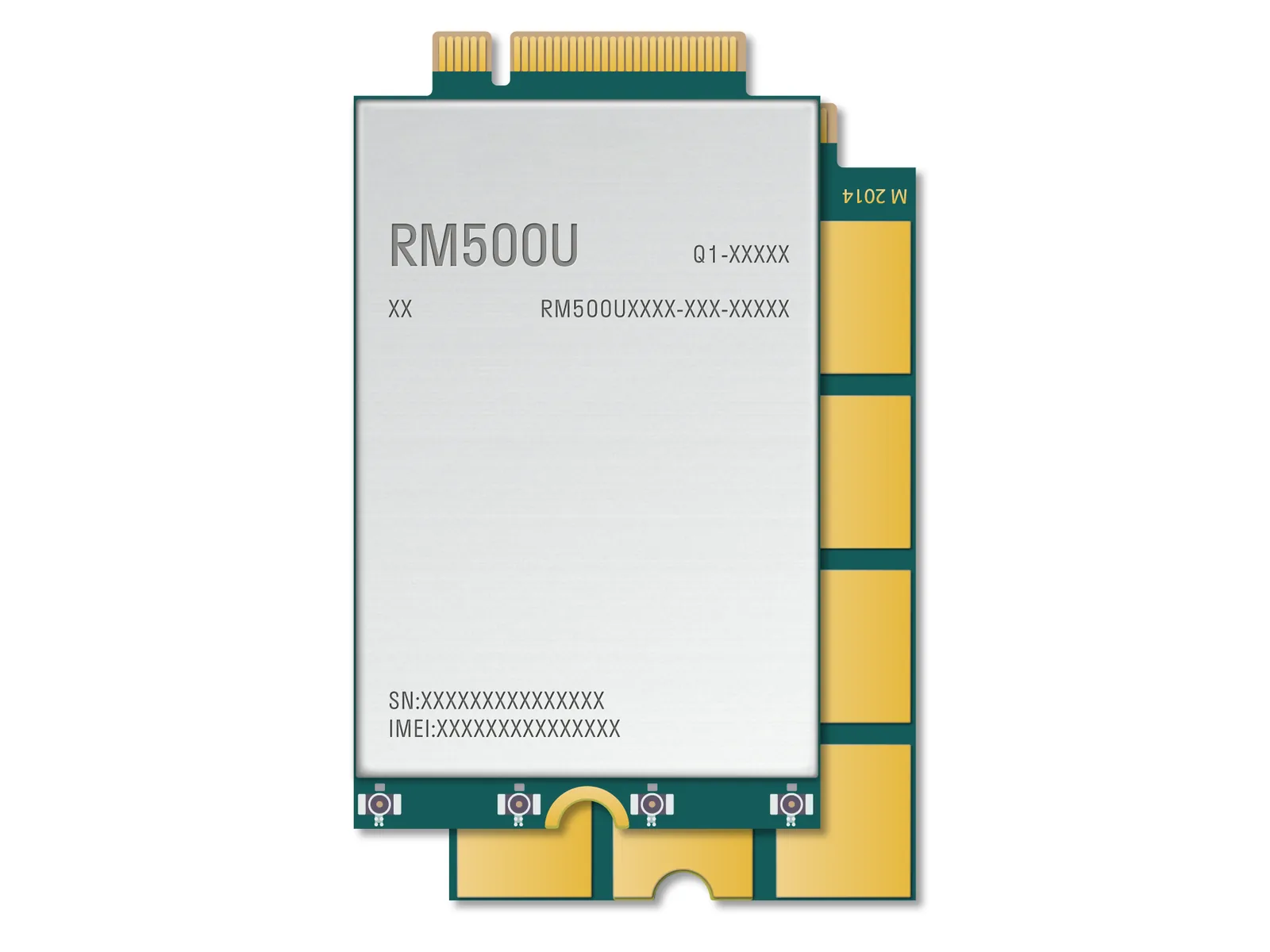

Quectel RM500U Series 5G Sub-6 GHz M.2 module
Quectel RM500U is an industrial-grade 5G Sub-6 GHz M.2 module series for IoT, eMBB and URLLC applications. The dedicated series specification identifies 3GPP Release 15 and Release 16 operation, 5G NSA and SA modes, and 4G or 3G compatibility.
Key specifications
| Item | RM500U series reference |
|---|---|
| Form factor | M.2 |
| Variants | RM500U-EA and RM500U-CNV; confirm the offered ordering code. |
| Cellular technology | 5G Sub-6 GHz with 4G and 3G compatibility |
| Network modes | 3GPP Release 15 and Release 16; 5G NSA and SA |
| Host interfaces | USB 3.0 and PCIe 2.0 |
| Software support | USB and PCIe drivers listed for Windows, Linux and Android |
| Compatibility reference | Compatible with Quectel RM50xQ, RM520N and RM521F-GL modules; confirm the exact host design before design release. |
| Application reference | Industrial router, home gateway, STB, industrial PDA, rugged tablet PC, video transmission and digital signage |
| Industrial scope | Industrial and commercial applications only |
Ordering and integration scope
Confirm the complete ordering code, regional bands, firmware, carrier requirements, host design and current approvals for the offered configuration before design release. Host hardware, antennas, SIM or eSIM provisioning, carrier service, cables and software integration are separate unless expressly included in the quotation.
Specification: Download the RM500U datasheet (PDF)
Send your requirements or BOM with the complete part number, destination country, host platform and quantity.

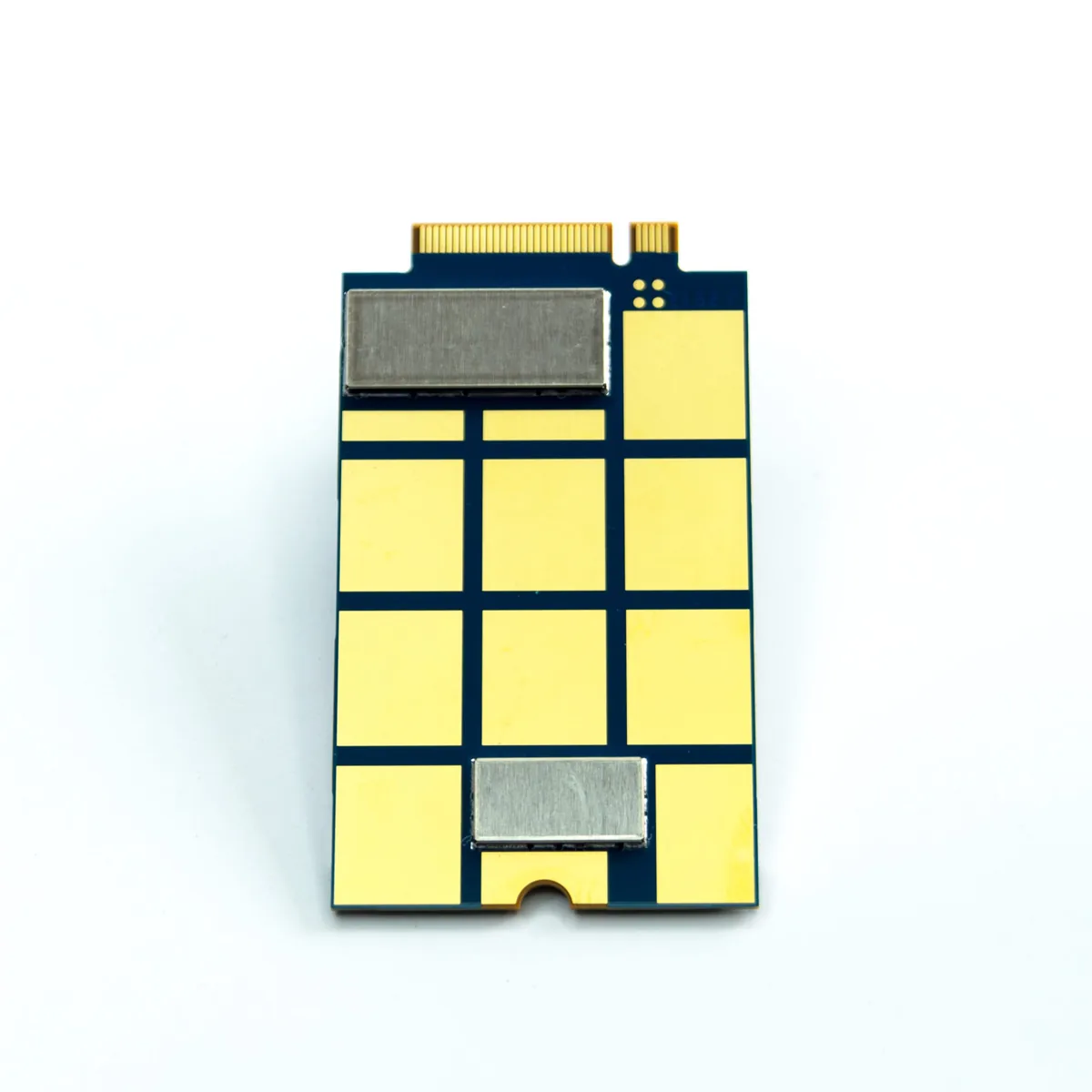

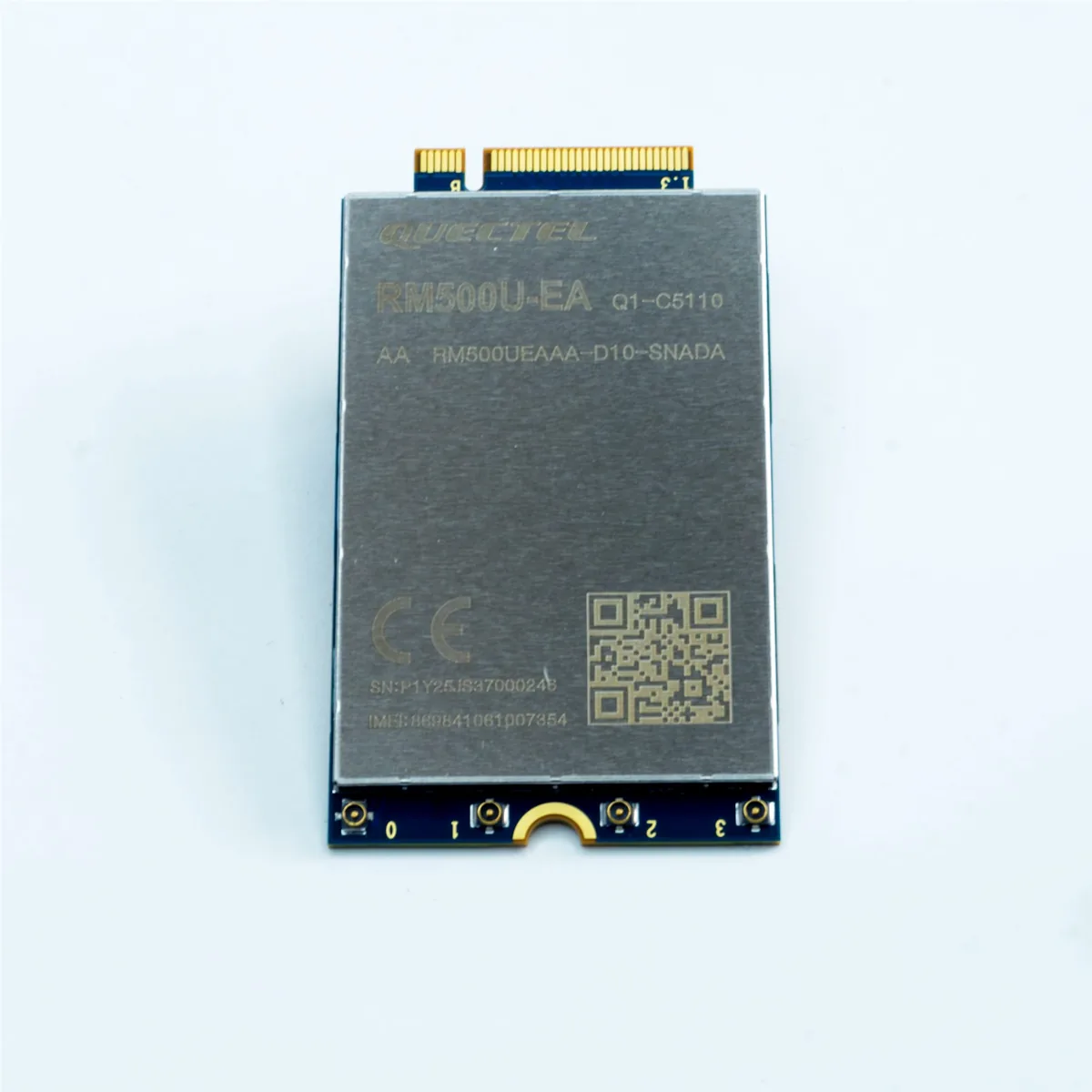

RM500U-EA reference photographs
These photographs show the EA variant in M.2 form. Confirm the exact ordering code, firmware, host interface and target network before ordering.
