Description

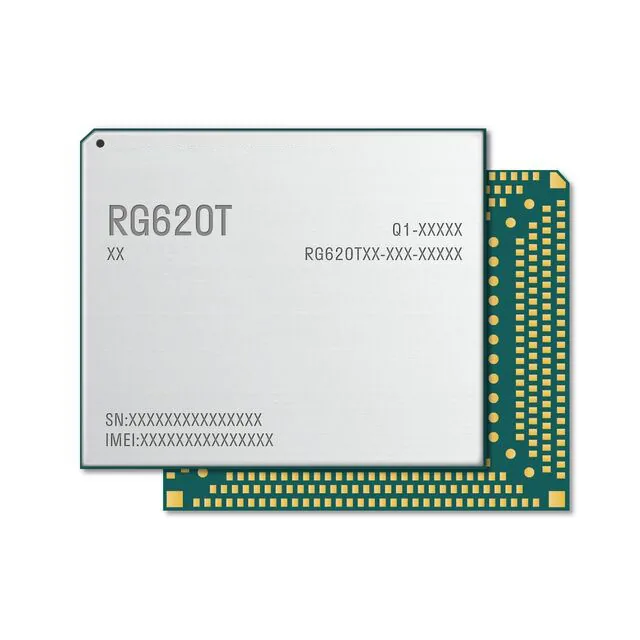

Quectel RG620T Series 5G Sub-6 GHz LGA module
Quectel RG620T is a series of industrial-grade 5G Sub-6 GHz LGA modules for IoT, eMBB and uRLLC applications. The dedicated product specification describes 3GPP Release 16 operation, 5G NSA and SA modes, and 4G or 3G compatibility.
Key specifications
| Item | RG620T series reference |
|---|---|
| Form factor | LGA, 53.0 x 44.0 x 2.95 mm |
| Cellular technology | 5G Sub-6 GHz with 4G or 3G compatibility |
| Network modes | 3GPP Release 16; 5G NSA and SA, including Options 3x, 3a, 3 and 2 |
| Peak data rate | Up to 1.6 Gbps downlink / 211 Mbps uplink; theoretical maxima |
| Host interfaces | USB 3.2 and PCIe 4.0 |
| GNSS | Integrated multi-constellation receiver supporting GPS, GLONASS, BDS, Galileo and QZSS |
| Application reference | 5G router, CPE, MiFi, industrial router and home gateway designs |
| Industrial scope | Industrial and commercial applications only |
Ordering and integration scope
Confirm the complete ordering code, regional frequency bands, firmware, carrier requirements, host design, antennas, SIM or eSIM provisioning and current approvals for the offered configuration before design release. Host hardware, antennas, carrier service, cables and software integration are separate unless expressly included in the quotation.
Specification: Download the RG620T datasheet (PDF)
Send your requirements or BOM with the complete part number, destination country, host platform and quantity.
