Description

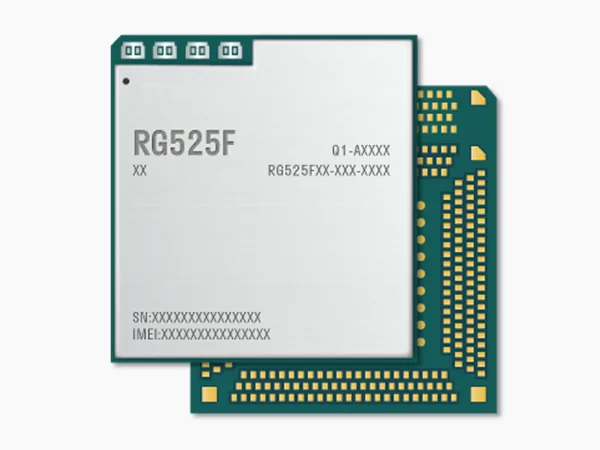

Quectel RG525F-NA 5G Sub-6 GHz LGA module
Quectel RG525F-NA is an industrial-grade 5G Sub-6 GHz LGA module for IoT and eMBB applications. Its dedicated specification describes 3GPP Release 16 operation, 5G NSA and SA modes, and 4G compatibility.
Key specifications
| Item | RG525F-NA reference |
|---|---|
| Form factor | LGA, 48.0 x 45.0 x 2.85 mm |
| Cellular technology | 5G Sub-6 GHz and 4G |
| Network modes | 3GPP Release 16; 5G NSA and SA, including Options 3x, 3a, 3 and 2 |
| Host interfaces | USB 2.0/3.0/3.1, PCIe 3.0, PCM and UART |
| GNSS | Integrated multi-constellation receiver using Qualcomm IZat Gen9C Lite for GPS, GLONASS, BDS, Galileo and QZSS |
| Software support | USB drivers listed for Windows 7/8/8.1/10/11, Linux and Android |
| Compatibility reference | Compatible with Quectel RG50xQ series and EG512R-EA; confirm the exact host design before design release. |
| Industrial scope | Industrial and commercial applications only |
Ordering and integration scope
Confirm the complete ordering code, regional bands, firmware, carrier requirements, GNSS configuration, host design and current approvals for the offered configuration before design release. Host hardware, antennas, SIM or eSIM provisioning, carrier service, cables and software integration are separate unless expressly included in the quotation.
Specification: Download the RG525F-NA datasheet (PDF)
Send your requirements or BOM with the complete part number, destination country, host platform and quantity.
