Description
Overview

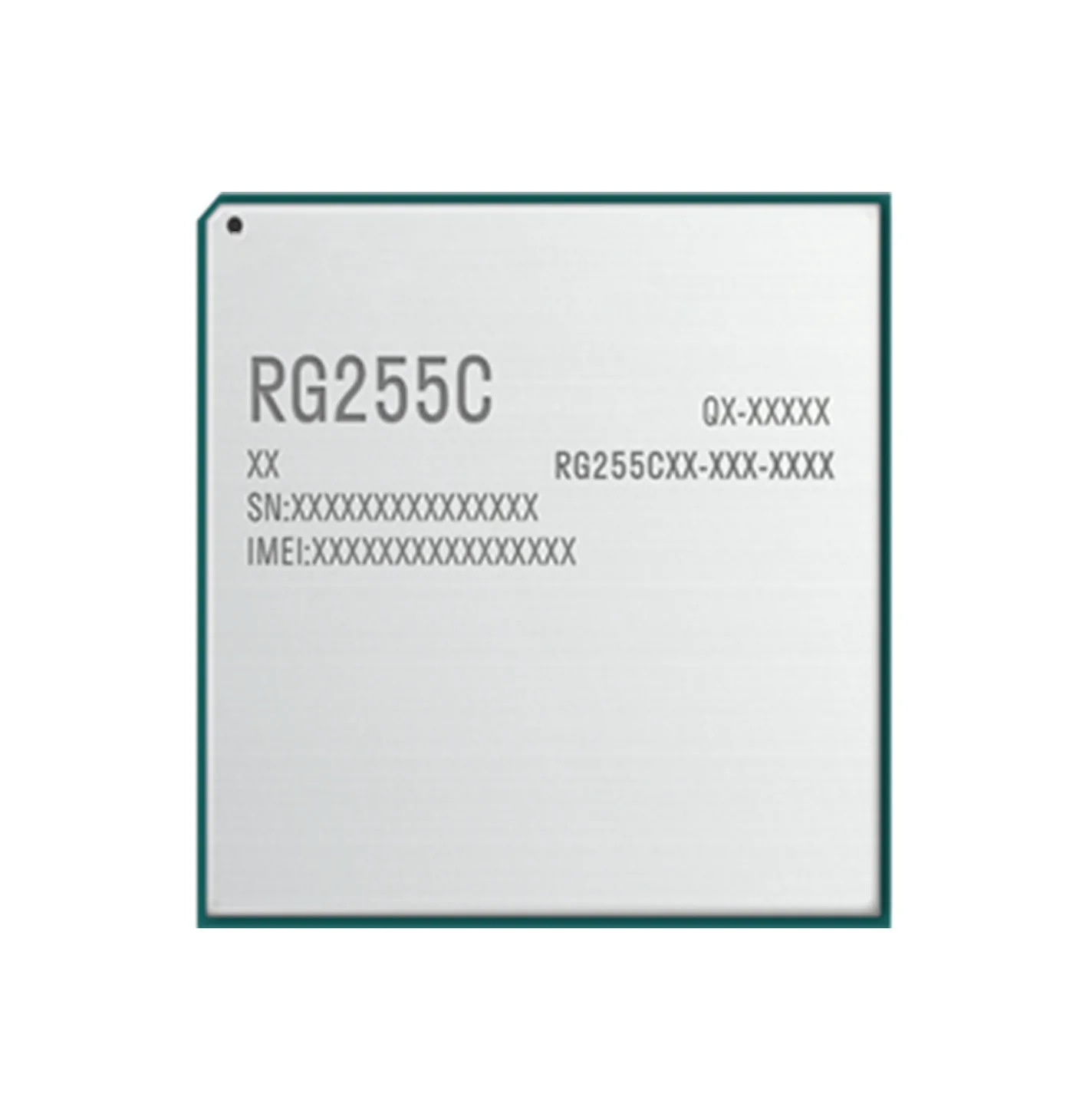

The Quectel RG255C series is a 5G RedCap Sub-6 GHz LGA module built to 3GPP Release 17 RedCap, with 5G LAN / URLLC / Slicing support and a theoretical peak rate of 223 Mbps downlink and 123 Mbps uplink, plus LTE Cat 4 fallback. It is backward-compatible with Rel-15 and Rel-16 networks and partially compatible with the Quectel EG2x 4G series for compact designs. Four variants (RG255C-GL / NA / EU / CN) cover major regions, and an optional multi-constellation GNSS receiver (GPS, GLONASS, NavIC, BDS, QZSS and Galileo) simplifies positioning.
Specification: Download the Quectel RG255C datasheet (PDF)
Key specifications
- Form factor: LGA, 29.0 × 32.0 × 2.4 mm, approx. 5.2 g
- 5G NR Sub-6 RedCap SA (3GPP Rel-17); regional variants GL / NA / EU / CN
- LTE Cat 4 (LTE-FDD / LTE-TDD)
- Peak rates: 223 Mbps DL / 123 Mbps UL (theoretical, RedCap)
- Interfaces: USB 2.0, PCIe 2.0, PCM, UART, SGMII, SPI
- GNSS (optional): GPS / GLONASS / NavIC / BDS / QZSS / Galileo
- Operating temperature: -30 °C to +75 °C (extended -40 °C to +85 °C)
