M.2 / NGFF module adapter for a Mini PCIe host connection. Use this page to select an adapter or assembled modem for evaluation and host integration. Confirm the board and modem configuration with your quotation.
Photographs and supplied items

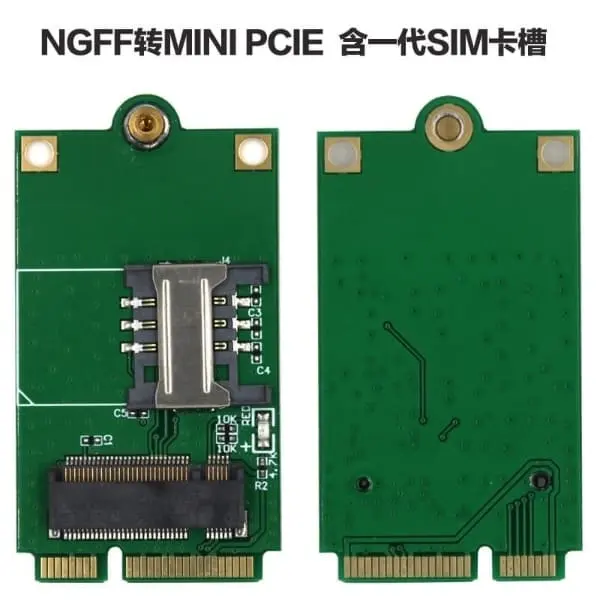

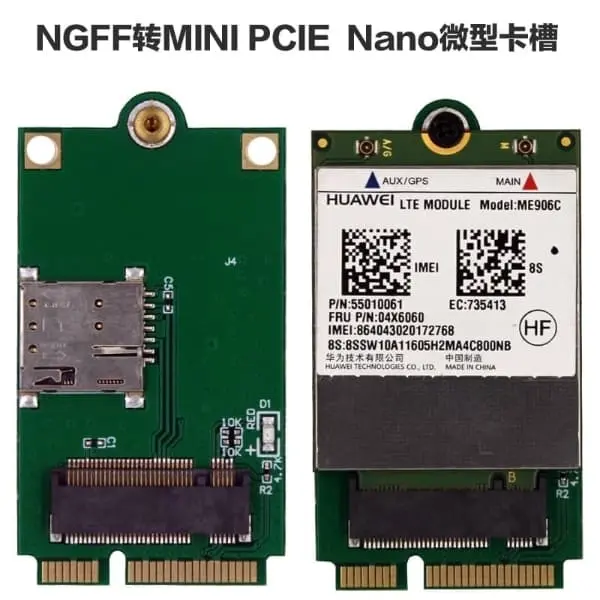

The gallery is shared with the SIM-holder-options entry: the unpopulated standard-holder board and a nano-SIM example carrying Huawei ME906C, P/N 55010061. A photographed module is an installation example, not a current kit contents list.
| Sales form | M.2 / NGFF module adapter for a Mini PCIe host connection. Distinguish an unpopulated adapter from an assembly supplied with a modem. |
|---|---|
| Module / board identity | Order by complete module P/N and adapter revision, not by the generic 4G/5G title. Historical photos identify examples and do not establish current availability. |
| Kit contents | Specify board-only or board-plus-module, antennas, RF cables, SIM requirements, USB cable, enclosure and power accessories. Only the quotation establishes the included items. |
| Power and host | Obtain the board input rating, connector polarity, output rail, peak-current capability and host requirements before connection. |
| Network and performance | Determined by the installed module, firmware, antenna, SIM and network. An adapter does not add radio bands or certify operator acceptance. |
Integration checks
Ask for the host socket wiring and adapter schematic. The module must receive the required power, USB connection and SIM signals from the host. Mechanical fit does not establish protocol conversion, hot-plug support or universal 5G compatibility.
Check mechanical clearance, cooling, antenna connectors, host driver version and application software before deployment. Do not insert or remove a module or SIM under power unless the matched instructions explicitly permit the operation.
Technical references
The undated M.2 to PCIE-4230.pdf describes a 42 x 30 mm B-key module and a 50 x 30 x 1.2 mm adapter. Its standard-holder drawing resembles the main photograph. M.2 to PCIE-5230.pdf instead describes a longer 60 x 30 x 1.2 mm board; that is a different mechanical option.
Request the applicable board specification, hardware instructions and compliance documents during enquiry follow-up. Adjacent-board manuals, module marks and historical family certificates do not establish the certification or tested performance of the quoted assembly. Current status and applicable hardware/software revisions require confirmation.
Related adapters and enquiry
Send the intended module, host model/OS, destination country/operator, quantity, connection requirements and accessory list with your BOM enquiry. Browse the Datasheet Center for related module references.
