Description
Product identity and supplied items
Y7080E is an SMT NB-IoT module for low-throughput connected devices. It is distinct from an evaluation board or SIM7080G Cat M module.

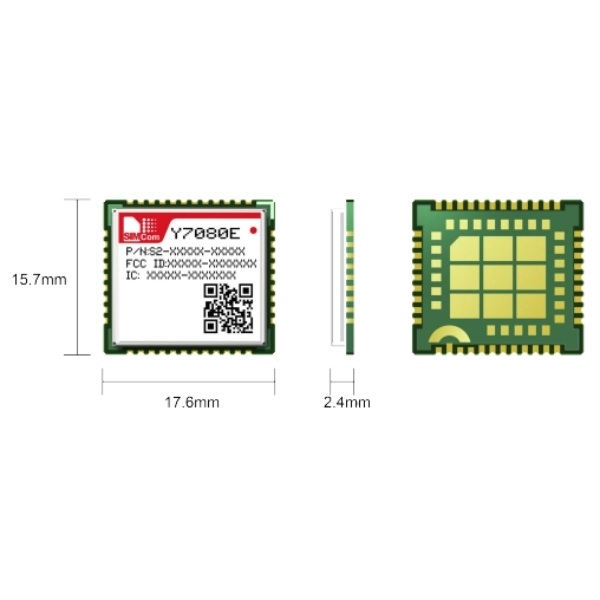

The retained image reads Y7080E but uses placeholder P/N and regulatory identifiers. It is a dimensional illustration, not a current batch photograph.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Current SIMCom Y7080E manufacturer product page, retrieved 2026-09-13. Its document listing includes Y7080E_SPEC_EN_20240709 and a separate TE Kit guide V1.03; the kit guide does not define a bare-module shipment.
| Radio | Cat NB2 bands B3/B5/B8/B20/B28. |
|---|---|
| Module outline | 17.6 x 15.7 x 2.4 mm; 1.2 g +/-0.2 g. |
| Peak data rates | Uplink 159 kbps; downlink 127 kbps. Network coverage and configuration determine actual performance. |
| Supply and temperature | NB plus GNSS: 3.0-4.2 V; NB only: 2.2-4.2 V. Operating -40 to +85 C. |
| Interfaces and options | UART, GPIO, ADC and 1.8/3 V USIM. GNSS is optional; Galileo carries an asterisk in the manufacturer list, so confirm implementation and firmware. |
Selection and integration
Match the host power budget, NB-IoT operator and module revision. Battery life depends on network and duty cycle; no fixed ten-year life or direct replacement compatibility is guaranteed.
Documents and compliance
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
