Description

In automotive battery-connected applications, low quiescent current (I_Q) is important to save power and extend battery lifetime. Ultra-low I_Q must be included for always-on systems.

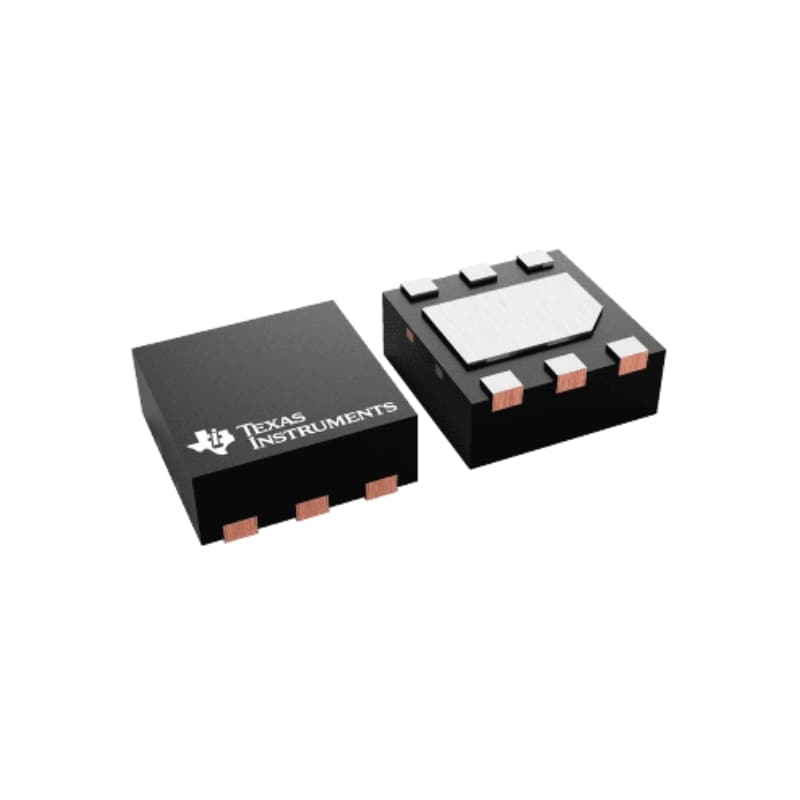

The TPS7B82-Q1 is a low-dropout linear regulator designed to operate with a wide input-voltage range from 3 V to 40 V (45-V load dump protection). Operation down to 3 V allows the TPS7B82-Q1 to continue operating during cold-crank and start and stop conditions. With only 2.7-µA typical quiescent current at light load, this device is an optimal solution for powering microcontrollers (MCUs) and CAN/LIN transceivers in standby systems.

The device features integrated short-circuit and overcurrent protection. This device operates in ambient temperatures from –40°C to +125°C and with junction temperatures from –40°C to +150°C. Additionally, this device uses a thermally conductive package to enable sustained operation despite significant dissipation across the device. Because of these features, the device is designed as a power supply for various automotive applications.

• AEC-Q100 qualified for automotive applications:
  • Temperature grade 1: –40°C ≤ T_A ≤ 125°C
  • Temperature grade 0: –40°C ≤ T_A ≤ 150°C
• Extended junction temperature range:
  • Grade 1: –40°C ≤ T_J ≤ 150°C
  • Grade 0: –40°C ≤ T_J ≤ 165°C
• Low quiescent current I_Q:
  • 300-nA shutdown I_Q
  • 2.7 µA typical at light loads
  • 5 µA maximum at light loads
• 3-V to 40-V wide V_IN input voltage range with up to 45-V transient
• Maximum output current: 300 mA
• 2% output-voltage accuracy
• Maximum dropout voltage: 700 mV at 200-mA load current for fixed 5-V output version
• Stable with low-ESR (0.001-Ω to 5-Ω) ceramic output-stability capacitor (1 µF to 200 µF)
• Fixed 2.5-V, 3.3-V, and 5-V output voltage
