Description
Product identity and supplied items
SIM7906SA-M2 is a Cat 6 cellular modem card for embedded LTE designs. Select the SA-M2 variant and match the host and destination bands.

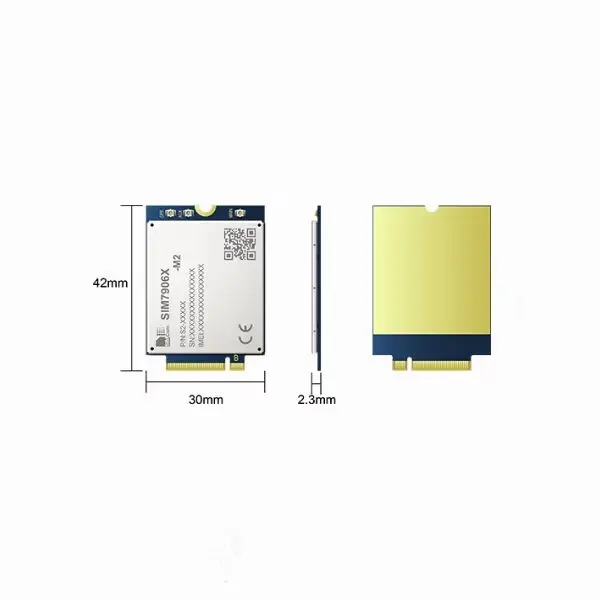

The retained drawing is labeled SIM7906X-M2 and uses placeholder identifiers. It is a family mechanical illustration, not an SA batch photograph.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
SIMCom current SIM7906X-M2 manufacturer product comparison, explicitly including SIM7906SA-M2, retrieved 2026-09-13. Its download list also contains E/G/A documents, which are not automatic SA references.
| Card | M.2; 42.0 x 30.0 x 2.3 mm. |
|---|---|
| SA LTE bands | FDD B1/2/3/4/5/7/12/17/26/27/28/66; TDD B38/41. |
| UMTS | WCDMA B1/2/4/5. |
| Peak rates | LTE up to 300 Mbps downlink / 50 Mbps uplink; HSPA+ up to 42 / 5.76 Mbps. |
| Power and temperature | 3.135-4.4 V; operating -30 to +70 C. |
| Host and options | USB, UART and GPIO; 1.8/3.0 V SIM. GNSS is marked optional in the regional comparison. |
Selection and integration
Request the exact SA-M2 hardware guide and firmware, supported carrier-aggregation combinations and host drivers. E-M2 certificates and G-M2 test reports do not establish SA-M2 certification. AT-command similarity does not guarantee hardware compatibility.
Documents and compliance
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
Retained image archive
Historical product and company images are preserved; unrelated components do not verify this model.
