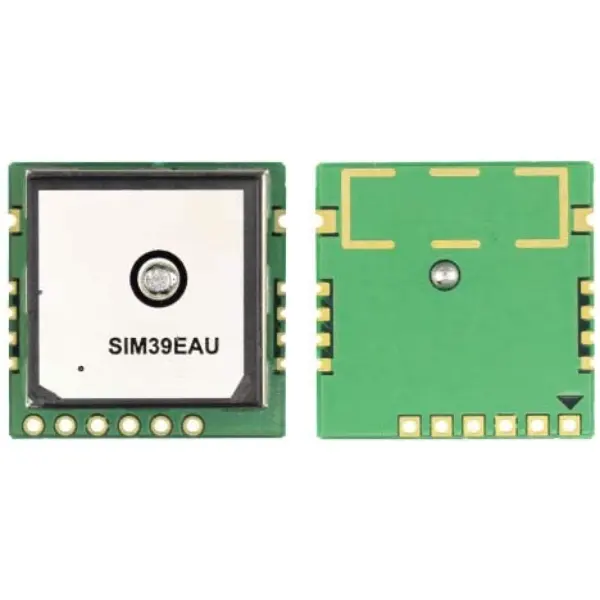

SIMCOM GPS module SIM39EAU

•high performance GPS module accompany with GPS antenna

•Dimensions: 22*22*7.5mm

•Weight: 8.5g
Send Inquiry

Description

SIMCom presents a high performance GPS module accompany with GPS antenna-SIM39EAU. This is a standalone L1 frequency GPS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.

Product Details

Mechanical data
•Dimensions: 22*22*7.5mm
•Weight: 8.5g
Features
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN,
MSAS)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
•Serial interfaces     UART
•Digital I/O             TIMEMARK (PPS)
3D-FIX
•Protocols              NMEA
PMTK
Performance data
•Receiver type                22 tracking/66 acquisitionchannel GPS receiver

•Max. update rate        10Hz
•Sensitivity1
Tracking:                       -165 dBm
Reacquisition:               -160 dBm
Cold starts:                   -147 dBm
•Time-To-First-Fix2
Cold starts:                   32 s (typical)
Warm starts:                 30s
30s Hot starts:              <1s
EPO Assist:                    13s（CTTFF)
• Accuracy
Automatic Position3:           2.5m CEP
Speed4:                                0.1m/s
•Operation temperature:     -40℃~+85 ℃

Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
•Power supply                   2.8~4.3V
•Backup power                  2.3V~4.3V
•Power consumption2       3.3V（typical）
Acquisition                         27.mA
Tracking                              24mA
sleep                                    14uA
