Description

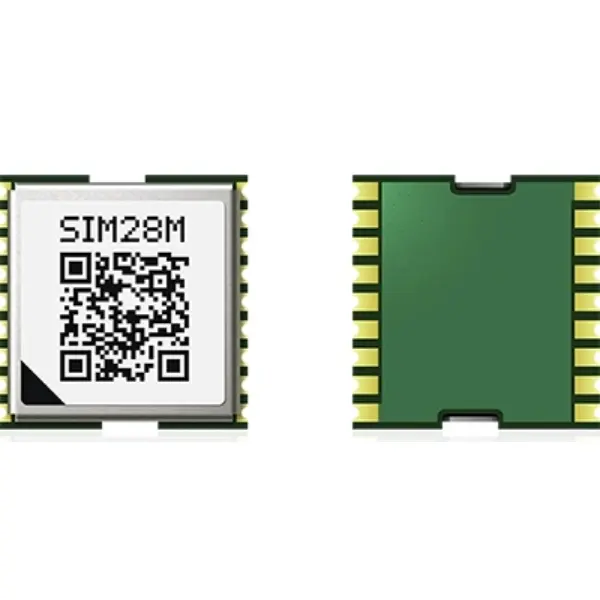

SIMCom presents a small, high performance and reliable assisted GPS module-SIM28M. This is a standalone L1 frequency GPS module in a SMT type and it is designed with MTK high sensitivity navigation engine, which allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.
Product Details
Mechanical data
•Dimensions 10.1*9.7*2.5mm
•Weight 0.5g
Features
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN,
MSAS)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
•Serial interfaces
UART
•Digital I/O
GPIO
TIMEMARK (PPS)
•Protocols
NMEA
PMTK
PSIM
Performance data
•Receiver type:22 tracking/66 acquisitionchannel GPS receiver GPS L1, C/A Code
•Max update rate: 10Hz
•Sensitivity1
Tracking:-165 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
•Time-To-First-Fix2
Cold starts 32 s (typical)
Warm starts 30s
Hot starts <1s
EPO Assist 13s（CTTFF)
• Accuracy
Automatic Position3 2.5m CEP
Speed4 0.1m/s
•Operation temperature -40℃~+85 ℃
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
•Power supply 2.8~4.3V
•Backup power 2.0 V~4.3V
•Power consumption2,5
Acquisition 17mA
Tracking 16mA
Backup 8uA
•Antenna type Active and passive
•Antenna power External
Certificate
• RoHS\REACH\CE(RED)
