Description

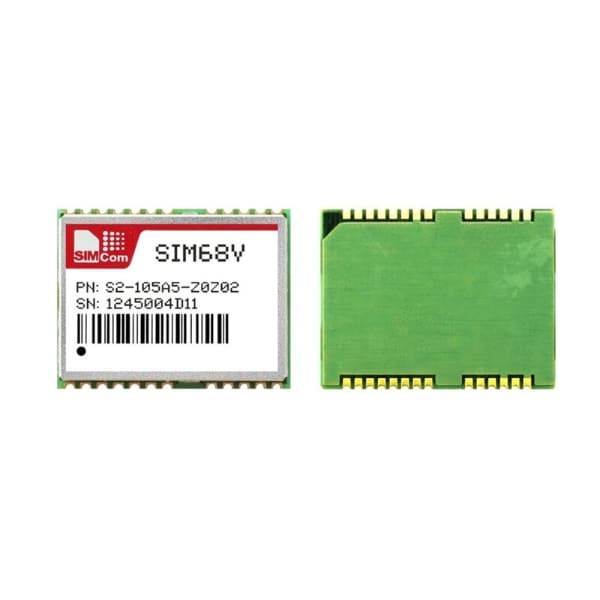

SIMCom presents a high performance and reliable GNSS module-SIM68V. This is a standalone L1 frequencyGNSS module in a SMT type with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Product Details
Mechanical data
•Dimensions: 16*12.2*2.4mm
•Weight: 1g
Features
•Support GPS/GLONASS/Galileo
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)
•Support DGPS (RTCM)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
•Serial interfaces UART, SPI / I²C
•Digital I/O EINT0 input
Pulse-per-second (PPS)
•Protocols NMEA
PMTK
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Approvals
• RoHS\REACH\CE(RED)
Performance data
•Receiver type
33tracking/99 acquisitionchannel GNSS receiver
•Max. update rate
10Hz
•Sensitivity1
Tracking:-167 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
•Time-To-First-Fix2
Cold starts:28 s
Warm start:26 s
Hot starts:<1s
EPO Assist:13s（CTTFF)
• Accuracy
Automatic Position3:<2.5m CEP
Speed4:0.1m/s
•Operation temperature5: -40℃~+85 ℃
Electrical data
•Power supply 2.8V~4.3V
•Backup power 2.3V~4.6V
•Power consumption2,6
Acquisition 34mA
Tracking 30mA
AlwaysLocateTM 340uA
Backup 14uA
•Antenna type Active and passive
•Antenna power External or internal VCC_RF
