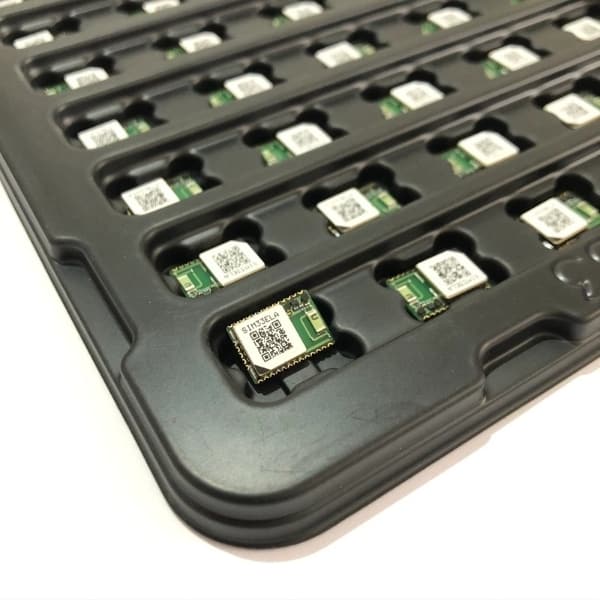

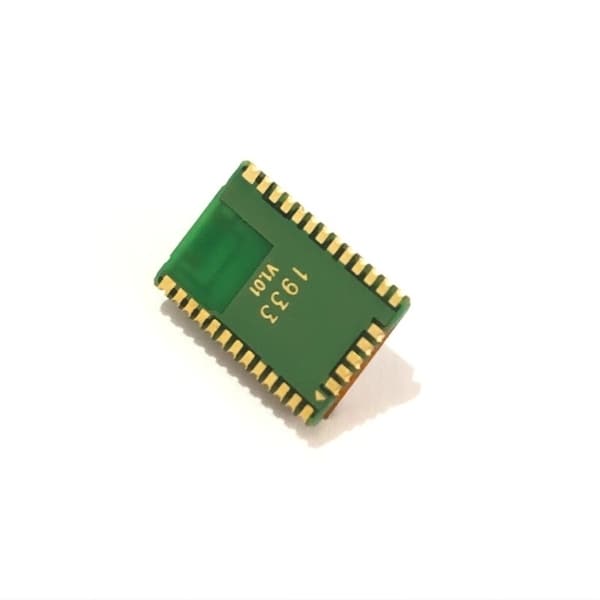

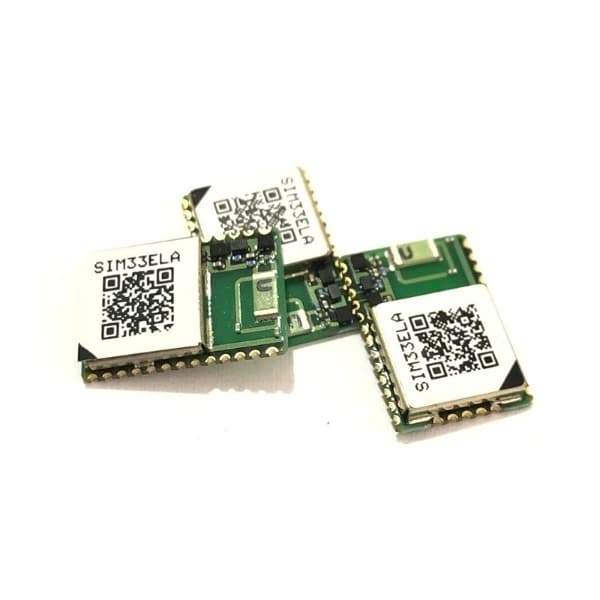

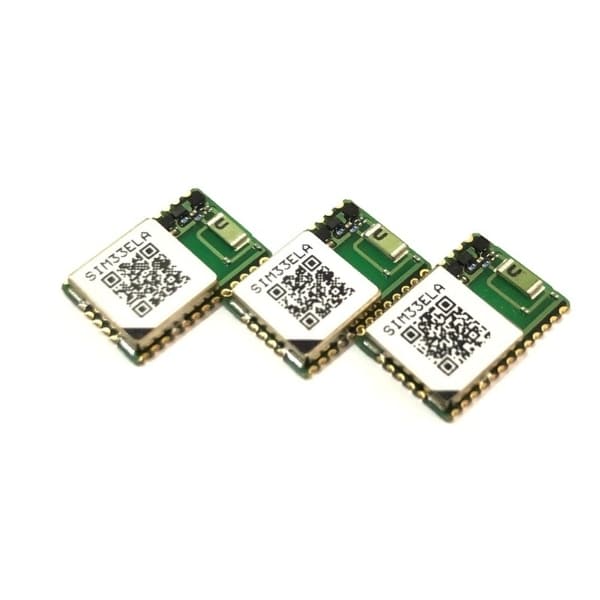

SIMCOM GNSS SIM33ELA

•high performance GPS module accompany

•Dimensions: 14*9.6*2.15mm

•Weight: 0.5g

Description

SIMCom presents a high performance GPS module accompany with GNSS antenna-SIM33ELA. This is a standalone GNSS module embedded a linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.

Product Details

Mechanical data
•Dimensions: 14*9.6*2.15mm
•Weight: 0.5g
Features
•Support GPS/GLONASS/Galileo/QZSS
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
•Serial interfaces UART
•Digital I/O
PPS
3D-FIX
FORCE -ON
•Protocols
NMEA
PMTK
Performance data
•Receiver type 33tracking/99 acquisitionchannel GNSS receiver
•Max. update rate 10Hz
•Sensitivity1
Tracking: -165 dBm
Reacquisition: -160 dBm
Cold starts: -147 dBm
•Time-To-First-Fix2
Cold starts: 28 s (typical)
Warm starts: 26s
Hot starts: <1s
EPO Assist: 13s(CTTFF)
• Accuracy
Automatic Position3: 2.5m CEP
Speed4: 0.1m/s
•Operation temperature: -40℃~+85 ℃
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
•Power supply 2.8~4.3V
•Backup power 2.0V~4.3V
•Power consumption2 3.3V(typical)
Acquisition 25mA
Tracking 20mA
Backup 14uA
Certifications
• RoHS\REACH\CE(RED)\Deutsche Telekom
