Description

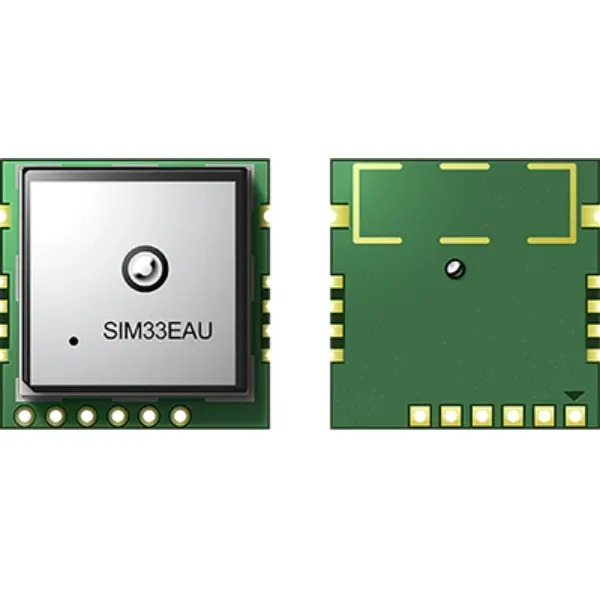

SIMCom presents a high performance GNSS module accompany with GNSS antenna-SIM33EAU. This is a standalone GNSS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to- First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.
Product Details
Mechanical data
•Dimensions: 22*22*7.5mm
•Weight: 8.5g
Features
•Support GPS/GLONASS/Galileo/QZSS
•Support EASYTM self-generated orbit prediction
•Support EPOTM orbit prediction
•Support AGPS
•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
•Support Jamming Removing
•Low-noise amplifier has been integrated
Interfaces
•Serial interfaces
UART
•Digital I/O
TIMEMARK (PPS)
3D-FIX
•Protocols
NMEA
PMTK
Certifications
• RoHS\REACH\CE(RED)
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
•Receiver type
33 tracking/99 acquisition- channel GNSS receiver
•Max. update rate 10Hz
•Sensitivity1
Tracking:-165 dBm
Cold starts: -146 dBm
Hot starts: -160 dBm
•Time-To-First-Fix2
Cold starts: 31 s (typical)
Warm starts: 26s
Hot starts: <1s
EPO Assist: 13s（CTTFF)
• Accuracy
Automatic Position3: 2.5m CEP
Speed4: 0.1m/s
•Operation temperature: -40℃~+85 ℃
