Description
A7600E reference module
This page covers the bare SIMCom A7600E LCC+LGA cellular module. It is separate from SIM7600-series modules, M.2 cards, Mini PCIe cards, USB Dongles, breakout boards and finished devices.

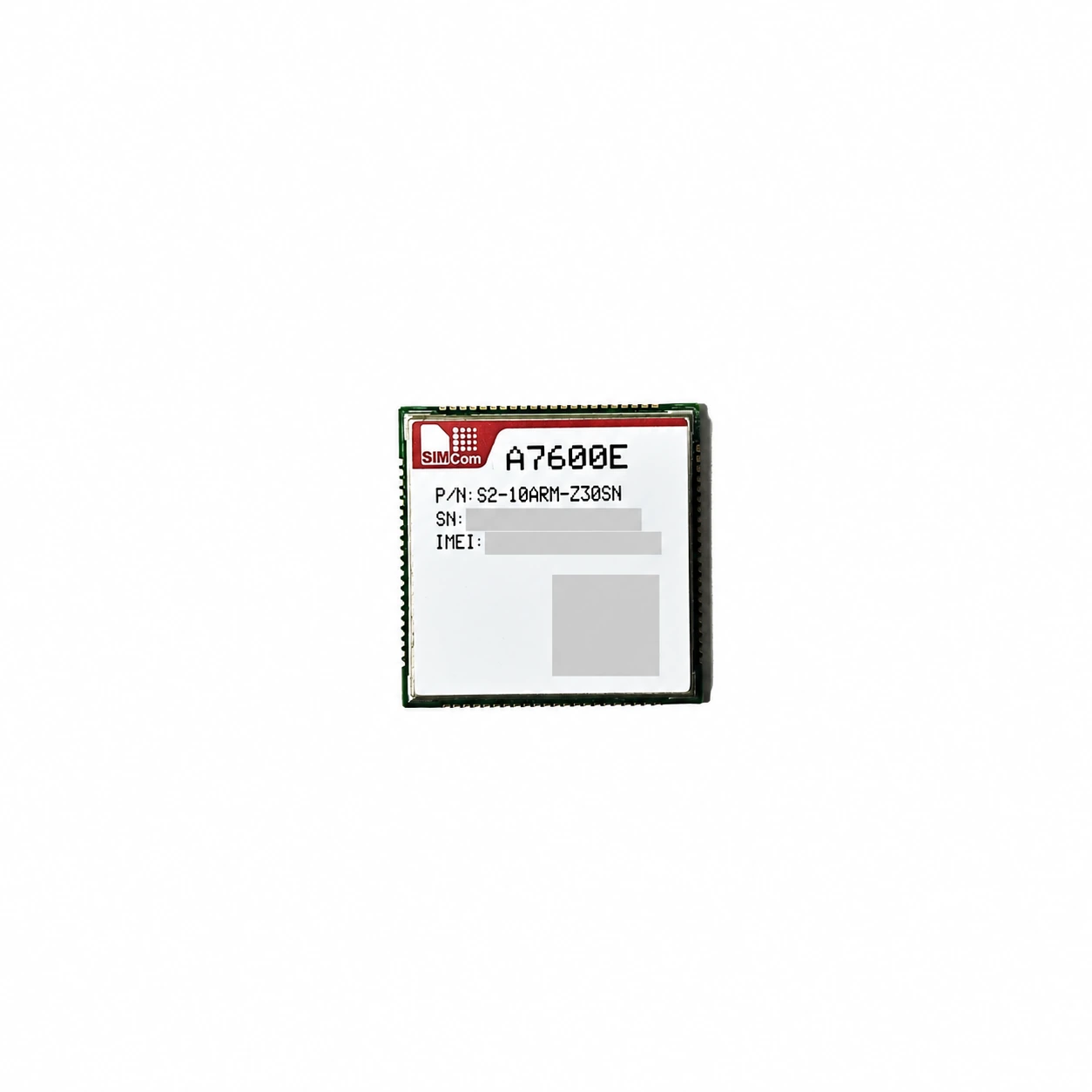

The reference photograph shows an A7600E-labelled sample with P/N S2-10ARM-Z30SN. Serial number, IMEI and QR fields are redacted. This is an identification reference only; it does not establish current supply, batch, firmware, included accessories or certification of a quoted item.
Model-specific technical reference
The following values are from the local A7600E specification, version 2020.07. Treat it as a historical technical reference and reconfirm the exact offered revision before design approval.
| Form factor | LCC+LGA, 30.0 x 30.0 x 2.5 mm. |
|---|---|
| Radio category | LTE Cat 1; reference maximum 10 Mbps downlink / 5 Mbps uplink. Actual throughput depends on network and integration. |
| LTE bands | FDD B1 / B3 / B5 / B7 / B8 / B20; TDD B38 / B40. |
| 2G fallback | GSM/GPRS/EDGE 900 / 1800 MHz. |
| Supply and temperature | 3.4-4.2 V, typical 3.8 V; reference operating range -40 to +85 C. |
| Interfaces | USB 2.0, UART, (U)SIM, PCM, MMC/SD, ADC, I2C and GPIO are listed. GNSS is optional in the referenced table. |
Version and compliance boundary
The 2020.07 reference marks CE, RoHS and REACH as ongoing. It therefore does not establish current approval, regional acceptance or applicability to a supplied P/N. Obtain current documents matched to the offered module, firmware, hardware revision and destination.
Confirm power design, band configuration, carrier requirements, host driver and antenna integration against current manufacturer documentation. Similar 30 x 30 mm modules are not automatically pin-compatible.
Selection and enquiry
The quotation should confirm the complete ordering code, revision, firmware, quantity and supplied items. Reference photography does not promise stock, delivery time or accessories.
Request a quote with the destination network, full part number, host design and quantity.
