Description

Delivering cost-efficient multi-GNSS positioning accuracy and quick TTFF

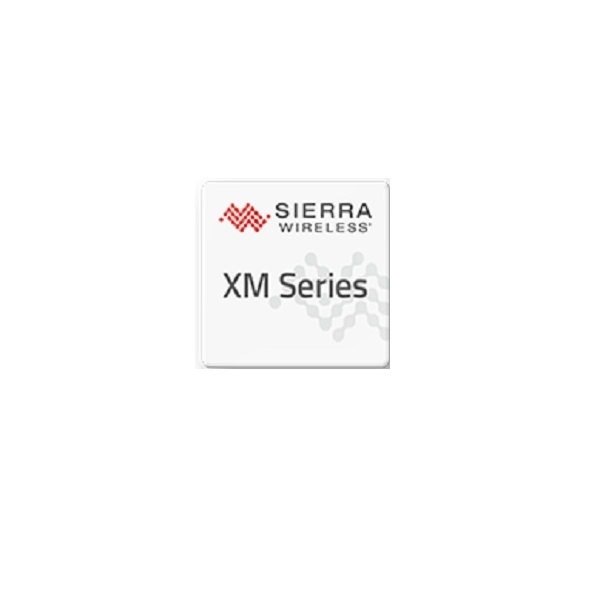

The XM1210 supports tracking of GPS+Glonass, GPS+Beidou or GPS+Galileo satellite system combinations to deliver superior positioning accuracy of <2.0 meters. The XM1210 has an ultra-compact form-factor of 9.0×9.5×2.1 mm, which is the same size and backwards compatible with the XM11 series modules.

The XM1210 incorporates a complete set of high-quality components, including TCXO, RTC Crystal, SMPS, SAW-Filter and an additional LNA, which guarantee optimum positioning performance.

The XM1210 is ideal for applications looking to add basic GNSS tracking features.

Key Features
Enhanced Positioning
Improve accuracy and time-to-fix with A-GPS and SBAS

Anti-Jamming
Active interference cancellation

Fully Integrated
Tested for harsh environments and extreme temperatures

Industrial-grade
Tested for harsh environments and extreme temperatures

Multi-Interface
Use I2C or USB for serial communication in addition to UART

RF SPECIFICATIONS
Frequency Bands：GPS L1, GLONASS L1, QZSS L1, SBAS L1, GALILEO E1

LOCATION SERVICES
Satellite Systems：GPS+Glonass, GPS+BeiDou, GPS+Galileo
A-GPS：Yes
Anti-Jamming:Yes
Positioning Accuracy:<2.0m
Timing Accuracy (1 PPS):±30 ns
Tracking Sensitivity:-161 dBm

INTERFACES
UART 1
USB 1
I2C 1
Max Update Rate 1 Hz

HARDWARE
Dimensions:9×9.5×2.1mm
Temperature Range:Industrial Grade: -40°C / +85°C
Built-in Components:TCXO, RTC Crystal, Additional LNA, SMPS, Additional SAW-Filter, Embedded Flash

POWER
Power Voltage:3.0V
Power Tracking:<35 mA
Standby Mode：<2 mA

APPROVALS
Regulatory:ROHS
