Description
Product identity and supplied items
EM9190 is a 5G M.2 modem supporting Sub-6 GHz and mmWave configurations. Select the module, antenna system and firmware as one integration plan.

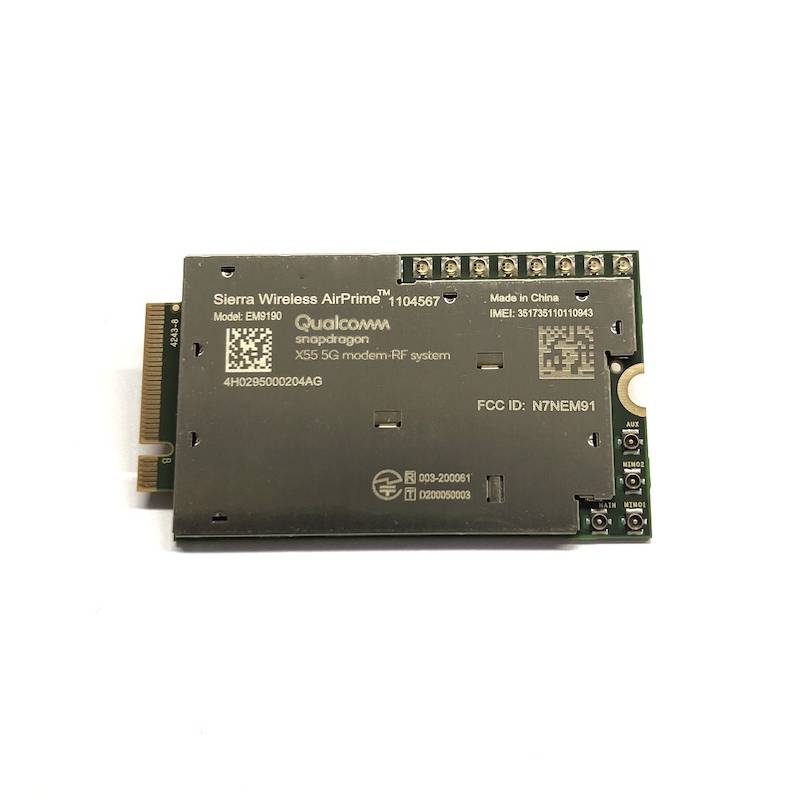

The retained photograph reads AirPrime EM9190, part marking 1104567. It does not show an external mmWave antenna kit or verify current batch approval.
The quotation confirms the full P/N, firmware, quantity and included accessories. Photographs and illustrations do not establish current stock.
Technical reference and variant table
Current Sierra Wireless EM9190 manufacturer product specification, retrieved 2026-09-13. Obtain the matching hardware integration guide and firmware documentation before layout.
| Card | M.2; 30 x 52 x 2.38 mm. |
|---|---|
| Radio modes | 5G NR Sub-6 and mmWave; LTE Cat 20 and 3G fallback. Network availability and antenna implementation determine usable modes. |
| 5G bands | Sub-6 n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79; mmWave n257/258/260/261. |
| Manufacturer peak rates | Up to 5.5 Gbps downlink / 3 Gbps uplink; theoretical mode-dependent values, not an application throughput guarantee. |
| Host interfaces | USB 3.1; PCIe Gen3 or Gen2, one lane. |
| Positioning | GPS, GLONASS, BeiDou and Galileo; manufacturer lists L1/L5. Confirm the configured GNSS path. |
Selection and integration
Match host power, thermal limits, mmWave antenna modules and regional firmware. The general 5G label does not promise URLLC or mMTC performance for a complete system. Carrier items marked planned are not completed approvals.
Documents and compliance
Hardware manuals, specifications and catalogues are technical references. Request current independent approvals, declarations or operator records matched to the full model, firmware and destination during enquiry follow-up. A logo, family list or historical document does not establish current approval of the quoted module or finished device.
Related products and enquiry
- Quectel RM50xQ 5G M.2 Modules – Regional Selection
- Quectel RM50xQ 5G M.2 Modules – Photo and Host Integration
Send the exact model, destination network, host interface and quantity through a BOM enquiry. See the Datasheet Center for additional references. Availability, lead time and supplied items are confirmed in the quotation.
