Description
Product identity and supplied items
HL7802 is a compact LTE Cat-M1 / Cat-NB1 module with 2G fallback for low-throughput IoT equipment. Confirm the complete ordering code and firmware before integration.

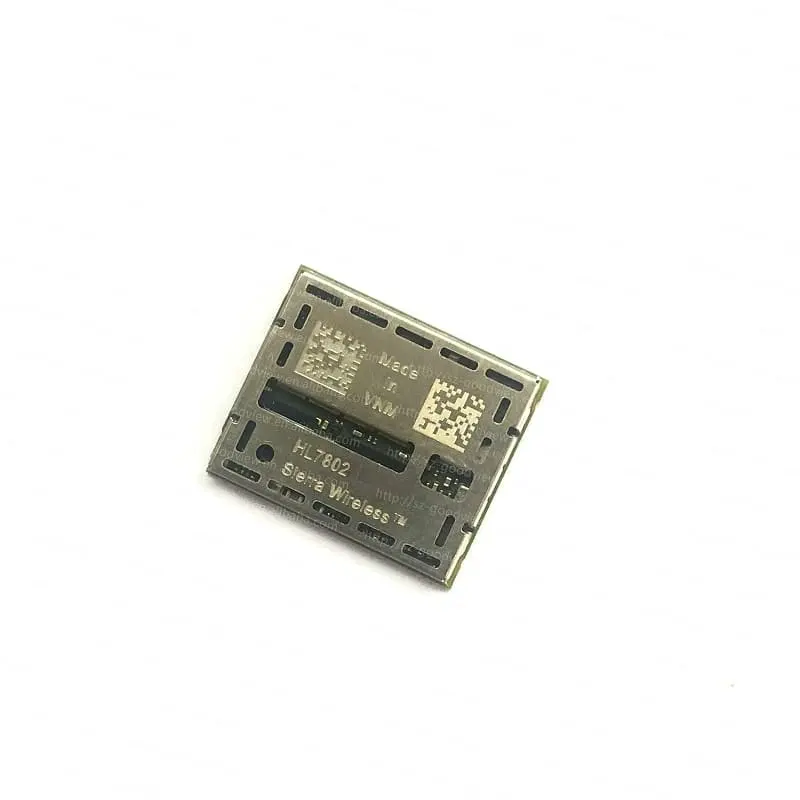

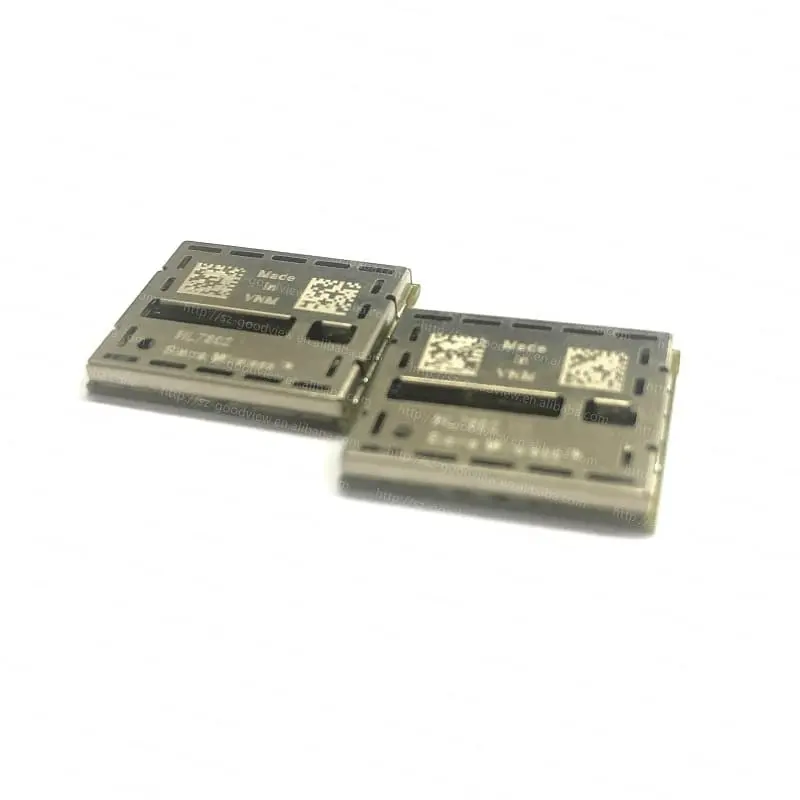

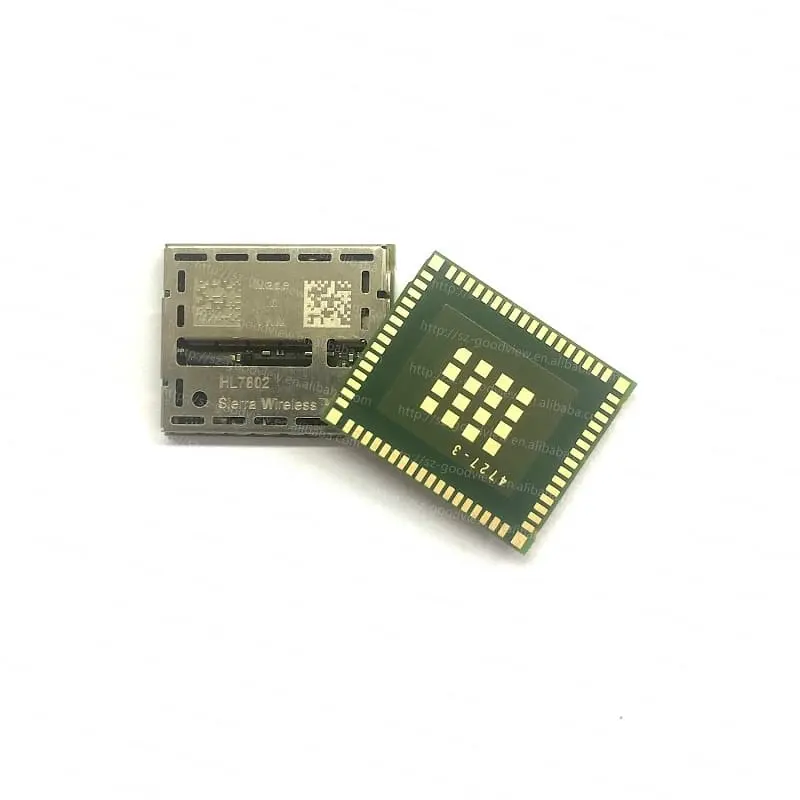

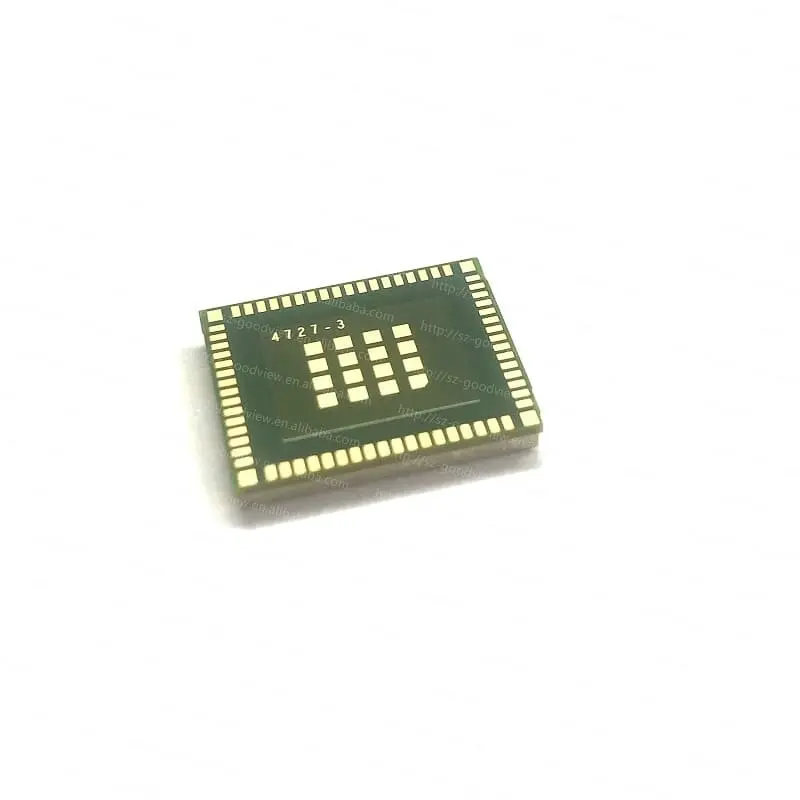

The four retained images show metal-shielded modules and reverse pads. The shield marking HL7802 is readable on the clearest front view; the complete production ordering code is not established by these photographs.
Confirm the full P/N, hardware/firmware revision, quantity and accessories with your quotation. A product or family photograph is not a current stock or batch inspection record.
Technical reference and variant table
Semtech/Sierra Wireless HL7802 official product table, checked 2026-09-13. The current HL780x technical specification entry is separate from the HL781x document.
| Module form | CF3 LGA; 15 x 18 x 2.4 mm. |
|---|---|
| LTE bands | B1/B2/B3/B4/B5/B8/B9/B10/B12/B13/B17/B18/B19/B20/B25/B26/B27/B28/B66. |
| 2G | GSM/GPRS at 850/900/1800/1900 MHz. |
| Peak data rate | Cat-M1: 300 kbps DL / 375 kbps UL; Cat-NB1: 27 kbps DL / 65 kbps UL. |
| Temperature | Manufacturer product table: -40 to +85 C. |
| Host / SIM | 8-wire UART, ADC, GPIO and SIM integration; embedded Ready-to-Connect SIM is optional. |
| Power design | Obtain the matched HL780x hardware specification before choosing voltage limits and peak-current capacity. |
Selection and integration
HL7802 is a different generation from HL7810/HL7812. Do not assign NTN support, Cat-NB2 performance or HL781x firmware to this module without an explicit manufacturer qualification. Network approvals and operating firmware must be matched to the quoted P/N. Do not treat the previous 3.2-4.5 V statement as a verified operating limit.
Documents and compliance
Manufacturer Source download links may require an account. Use the current revision for final design; older manufacturer-authored copies are labeled by revision above. Product specifications, hardware guides, firmware notes, approvals and test reports serve different purposes.
Applicable compliance documents can be reviewed during enquiry follow-up against the exact hardware, firmware and destination market. A family logo, historical approval list or module certificate does not establish current certification of the quoted device or finished system. Availability, lead time and included services are confirmed in the quotation.
Related products and enquiry
- HL7810 LTE-M / NB-IoT Module – Firmware Selection
- HL7812 LTE-M / NB-IoT Module – Firmware Selection
- WP7702 Cat-M1 / NB-IoT Module with Legato
Send your original P/N or label photograph, destination country/operator, host interface, quantity and application requirements with your BOM enquiry. Browse the Datasheet Center for related references.
