Description

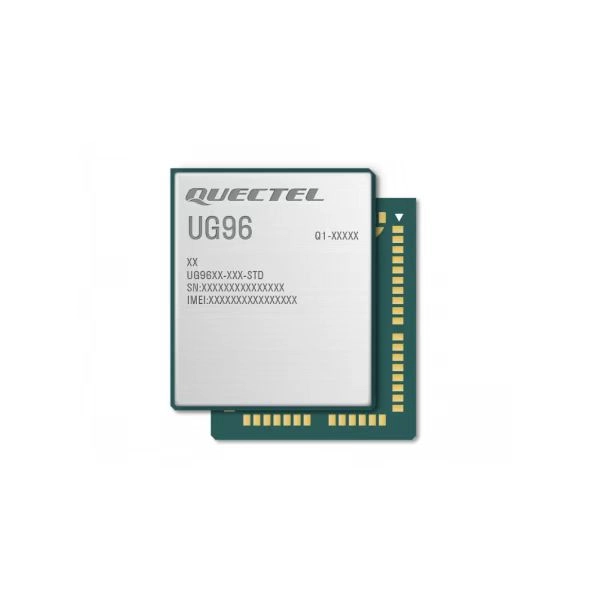

The UG96 is a penta-band UMTS/HSPA module featuring maximum data rates of 7.2Mbps downlink and 5.76Mbps uplink. Fully pin-to-pin compatible with Quectel’s UG95 module, it is designed to provide customers with global network coverage through UMTS/HSPA/HSUPA connectivity, and is also fully backward-compatible with existing EDGE and GSM/GPRS networks, allowing integrators and developers to design their applications once and then draw flexibly on the world’s most prevalent cellular technologies.
- Penta-band UMTS/HSPA module
- 22.5mm × 26.5mm × 2.2mm
- 3.1g
- LCC+LGA package
- Max. data rates of 7.2Mbps downlink and 5.76Mbps uplink
- Operating temperature -35°C to +65°C
A rich set of internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator/PCM) and abundant functionalities (USB drivers for Windows XP, Windows 7, Windows CE, Linux, Android/eCall) allow the module to serve a wide range of IoT applications including wireless POS, telematics, security, and metering, as well as industrial tablets, PDAs and PCs.
