Description
Product identity and supplied items
EG95-AUX is a regional LTE Cat 4 solder-down module. Match its radio bands and full ordering code to the target network before selecting hardware.

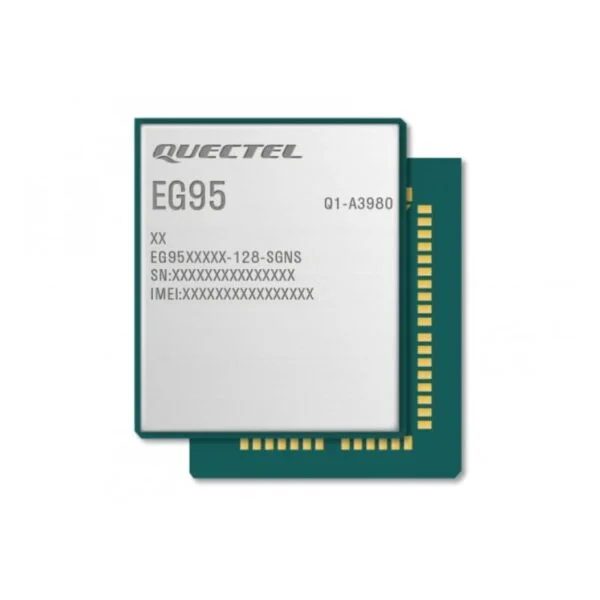

The shared image is an EG95 family illustration with generic XX markings. It does not establish an EG95-AUX batch; exact batch photographs can be checked during enquiry follow-up.
Confirm the exact P/N, quantity, accessories and batch photographs with your quotation. Reference images do not confirm stock or supplied kit contents.
Technical reference and variant table
Manufacturer EG95 Series Specification V2.5, Released, copyright 2024, regional comparison tables. Local Hardware Design V1.6 (2019-11-07) is historical and does not establish the later AUX variant scope.
| Exact regional variant | EG95-AUX; do not substitute EG95-E, EX, NA, NAX or AUX specifications between variants. |
|---|---|
| LTE bands | FDD B1/2/3/4/5/7/8/28/66. LTE FDD peak rates up to 150 Mbps downlink / 50 Mbps uplink. |
| Legacy network bands | WCDMA B1/2/5/8; GSM B2/3/5/8. |
| Form and supply | Bare LGA module, 29.0 x 25.0 x 2.45 mm; 3.3-4.3 V, typical 3.8 V. |
| Temperature | Normal operating -35 to +75 C; extended -40 to +85 C. |
| Version-dependent features | GNSS, voice and operator profiles must be matched to the ordering code and firmware. The specification limits its Telstra entry to the data-only version; it is not a universal AUX approval statement. |
Selection and integration
Confirm the land pattern, supply design, host interfaces, antenna paths, firmware and destination operator. Family-level pin-compatibility language does not guarantee a direct replacement. Hardware and regulatory evidence must identify this regional variant.
Documents and compliance
- Manufacturer EG95 series specification – retrieved V2.5
- Current manufacturer EG95 regional variants and document listing
Specifications and hardware manuals are technical references. Independent approvals, declarations and operator acceptance records have their own model, firmware and integration limits. Request applicable documents for the quoted configuration and destination during enquiry follow-up; historical documents, packaging marks and family lists do not confirm current approval of a shipment or finished device.
Related products and enquiry
Send your complete P/N, target country and operator, host interface and quantity through a BOM enquiry. Browse the Datasheet Center for additional references. Quotation follow-up confirms supplied items, availability and lead time.
