Description
Product identity and supplied items
EG21-G Mini PCIe is a Cat 1 cellular modem card with USB connectivity. Confirm the full card ordering code and firmware for the intended network and host.

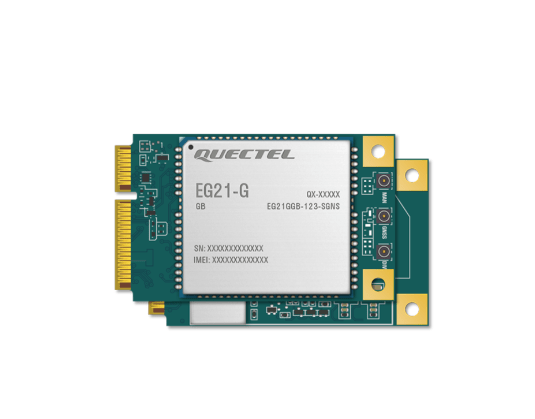

The retained illustration reads EG21-G / EG21GGB-123-SGNS and uses placeholder batch identifiers. It is a card illustration, not a current batch photograph.
Confirm the exact P/N, quantity, accessories and batch photographs with your quotation. Reference images do not confirm stock or supplied kit contents.
Technical reference and variant table
Current manufacturer EG21-G Mini PCIe Specification V1.7, Released, copyright 2024, pages 1-2. Historical local V1.5 is retained separately; its approximate weight differs.
| Form and supply | Mini PCIe card, 51.0 x 30.0 x 4.9 mm; approximately 9.8 g in V1.7 (10.5 g in local V1.5). 3.0-3.6 V, typical 3.3 V. |
|---|---|
| LTE bands | FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; TDD B38/39/40/41. |
| Legacy network bands | WCDMA B1/2/4/5/6/8/19; GSM B2/3/5/8. Network availability is destination-specific. |
| Peak LTE rates | FDD up to 10 Mbps downlink / 5 Mbps uplink; TDD up to 8.96 / 3.1 Mbps. |
| Interfaces and options | USB 2.0 high speed, main UART, I2C and one 1.8/3.0 V SIM interface. GNSS, digital audio and VoLTE are optional; confirm the ordered configuration. |
| Temperature | Normal operating -35 to +75 C; extended -40 to +80 C. |
Selection and integration
Use the Mini PCIe hardware guide for power and connector wiring. The bare EG21-G and the adjacent EG21-GL are separate references. Confirm the exact host OS, driver version, antenna routing and operator profile; a Mini PCIe connector alone does not establish compatibility.
Documents and compliance
- Manufacturer EG21-G Mini PCIe specification – retrieved V1.7
- Current manufacturer product and document listing
Specifications and hardware manuals are technical references. Independent approvals, declarations and operator acceptance records have their own model, firmware and integration limits. Request applicable documents for the quoted configuration and destination during enquiry follow-up; historical documents, packaging marks and family lists do not confirm current approval of a shipment or finished device.
Related products and enquiry
Send your complete P/N, target country and operator, host interface and quantity through a BOM enquiry. Browse the Datasheet Center for additional references. Quotation follow-up confirms supplied items, availability and lead time.
