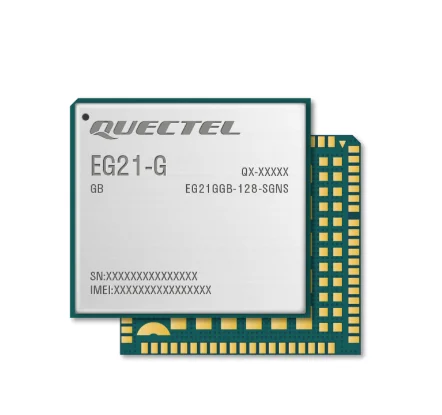

Quectel LTE EG21-G

  • LTE Cat 1 module
  • 29.0mm x 32.0mm x 2.4mm
  • 4.9g
  • LGA form factor
  • Max. 10Mbps downlink / 5Mbps uplink under LTE
  • Extended temperature range of -40°C to +85°C

Description

The EG21-G is an LTE category 1 module in an LGA form factor measuring 29.0mm x 32.0mm x 2.4mm, which meets the 3GPP Release 11 standard. It is compatible with Quectel’s UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC2x (EC25, EC21, EC20 R2.0 and EC20 R2.1) and EG25-G modules, enabling flexible migration between them.

The module delivers maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.

The EG21-G supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.
