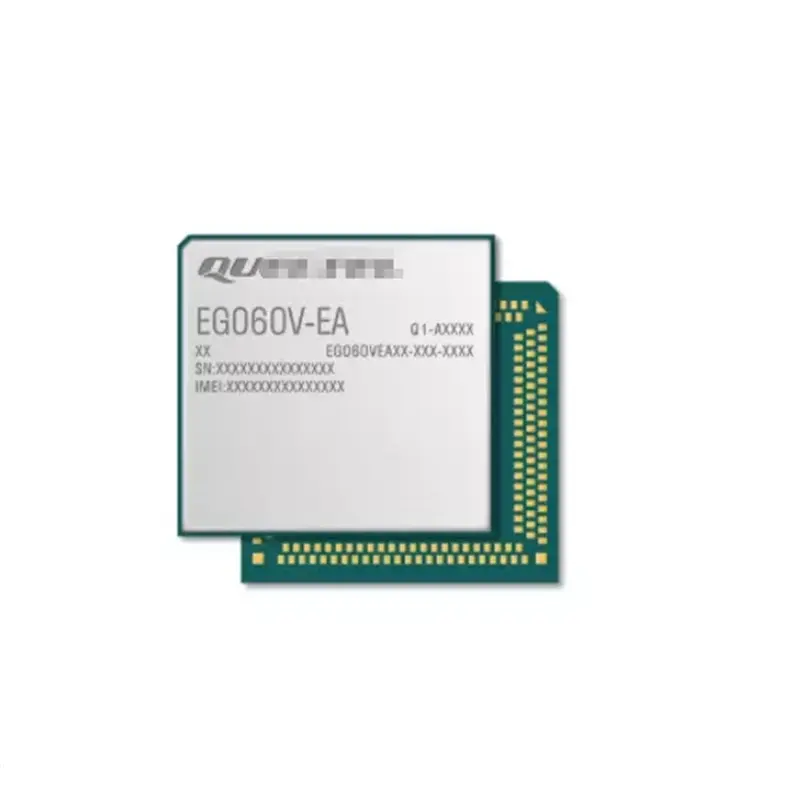

Quectel LTE-A Cat 6 EG060V-EA

  • LTE-A category 6 module
  • 37.0mm × 39.5mm × 3.05mm
  • LGA form factor
  • Max. downlink 300Mbps / 50Mbps uplink under LTE
  • Extended temperature range of -40°C to +85°C

Description

The EG060V-EA is an LTE-A category 6 module in an LGA form factor measuring 37.0mm × 39.5mm × 3.05mm, which meets the 3GPP Release 10 standard. The EG060V-EA delivers maximum downlink rates of 300Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The EG060V-EA is optimized for networks in EMEA, APAC and Brazil.

Designed in an LGA form factor, the module is compatible with Quectel’s Cat 6/12 modules EG06/EG12, which facilitates migration between different categories.

A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, and digital signage.
