Quectel LTE-A Cat 6 EG06-E

  • LTE-A Cat 6 module
  • 37.0mm × 39.5mm × 2.8mm

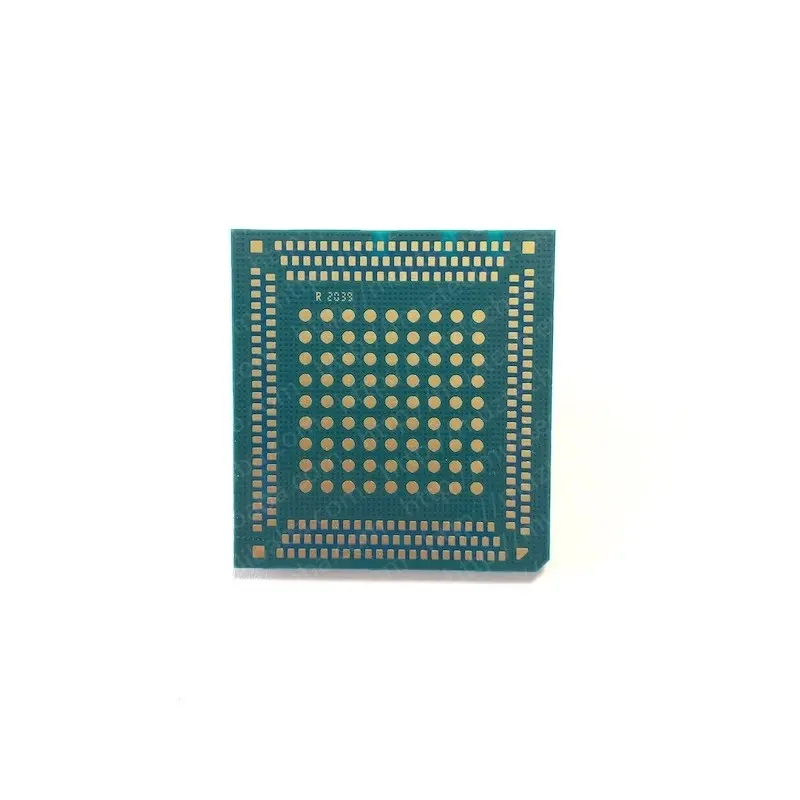

  • LGA form factor
  • Max. downlink 300Mbps / 50Mbps uplink under LTE
  • Extended temperature range of -40°C to +85°C
Send Inquiry

Description

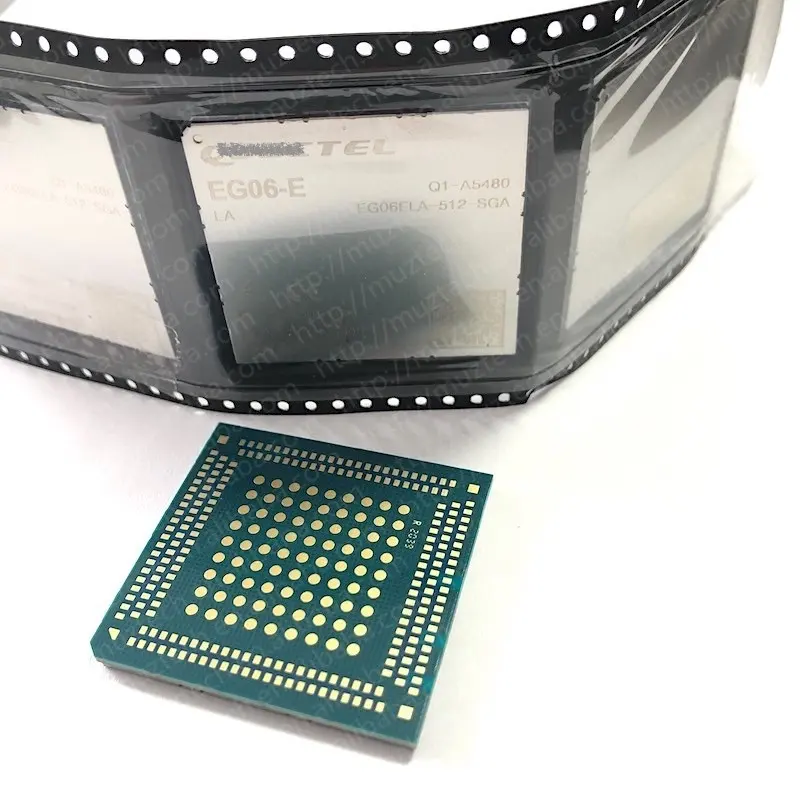

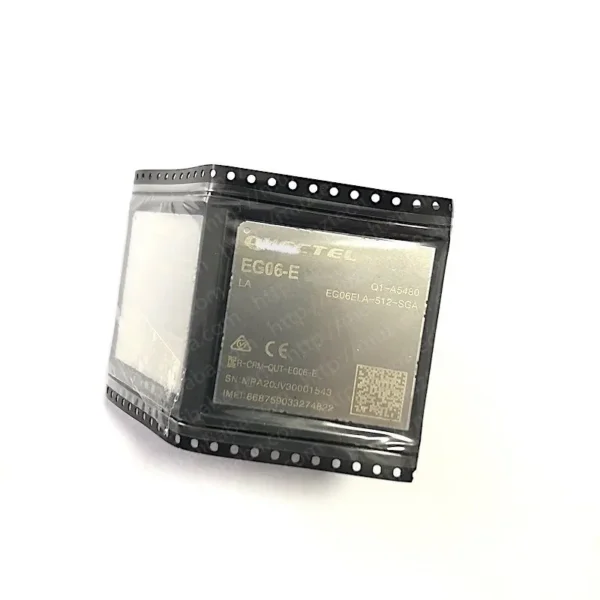

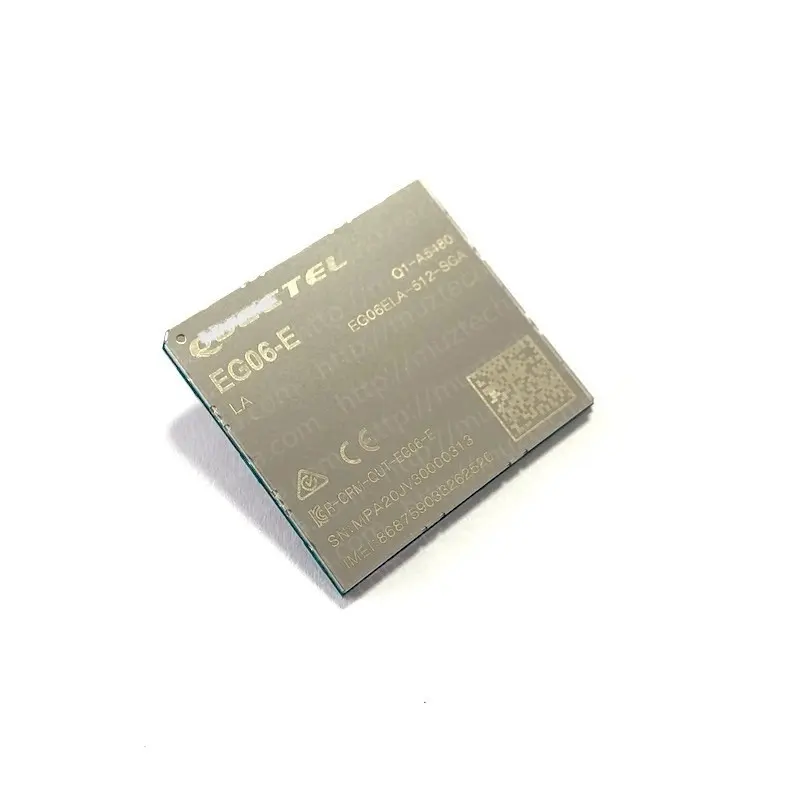

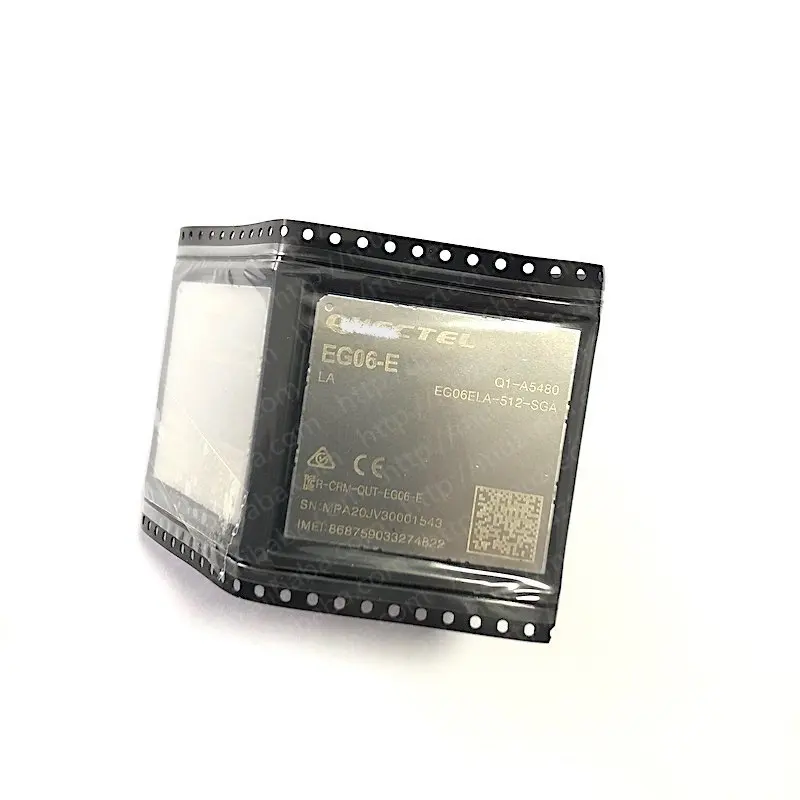

The EG06-E is a LTE-A Cat 6 IoT modules in an LGA form factor measuring 37.0 mm × 39.5 mm × 2.8 mm, which meets the 3GPP Release 11 standard. The EG06-E delivers maximum downlink rates of 300Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The module also supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. The series consists of four variants to meet various geographical demands, which can be compared via the table above.

A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, and digital signage.
