Description

The BC95-G is a high-performance NB-IoT module which supports multiple frequency bands (B1/B3/B8/B5/B20/B28). It is designed to be compatible with Quectel GSM/GPRS M95 and LPWA BC95 modules, in order to provide a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT networks.

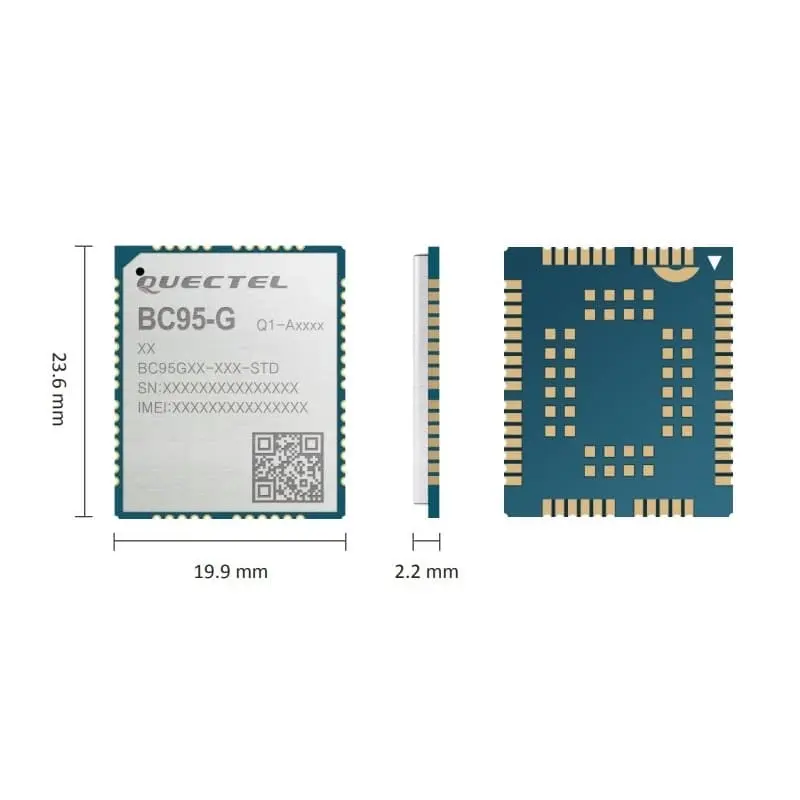

The BC95-G’s ultra-compact, unified form factor of 23.6mm × 19.9mm × 2.2mm makes it a perfect choice for size-sensitive applications, and surface mounted technology makes it ideal for durable and rugged designs. Its small LCC package is also ideally suited to large-scale manufacturing, which has strict requirements on efficiency and cost.

The module’s small size, extended temperature range of -40°C to +85°C and ultra-low power consumption allow it to serve a wide range of IoT use cases such as smart metering, shared micromobility, smart parking, connected security solutions, asset tracking, smart home appliances, intelligent agriculture and environmental monitoring. It can also provide a complete range of SMS and data transmission services to meet client-side demands.

Frequency Bands
BC95-G:
B1 @ H-FDD: 2100 MHz
B3 @ H-FDD: 1800 MHz
B8 @ H-FDD: 900 MHz
B5 @ H-FDD: 850 MHz
B20 @ H-FDD: 800 MHz
B28 @ H-FDD: 700 MHz

Data
Data Transmission:
Single Tone:
DL: 25.2 kbps
UL: 15.625 kbps
Multi Tone:
DL: 25.2 kbps
UL: 54 kbps
Extended TBS/2 HARQ:
DL: 125 kbps
UL: 150 kbps

Protocol Stacks:
IPv4
IPv6
UDP
CoAP
LwM2M
Non-IP
DTLS
TCP
MQTT
Download Method:
UART
DFOTA
SMS
Point-to-point MO and MT
PDU Mode

Electrical Characteristics
Maximum Output Power:
23 dBm ±2 dB
Sensitivity:
-129 dBm ±1 dB
Power Consumption (Typical) :
3 μA @ PSM
0.5 mA @ Idle Mode, DRX = 2.56 s, ECL0
LTE Cat NB1 Connectivity:
250 mA @ Radio Transmission, 23 dBm (B1/B3)
220 mA @ Radio Transmission, 23 dBm (B8/B5/
B20)
280 mA @ Radio Transmission, 23 dBm (B28)
130 mA @ Radio Transmission, 12 dBm (B1/B3/
B8/B5/B20/B28)
70 mA @ Radio Transmission, 0 dBm (B1/B3/B8/
B5/B20/B28)
60 mA @ Radio Reception
