Description

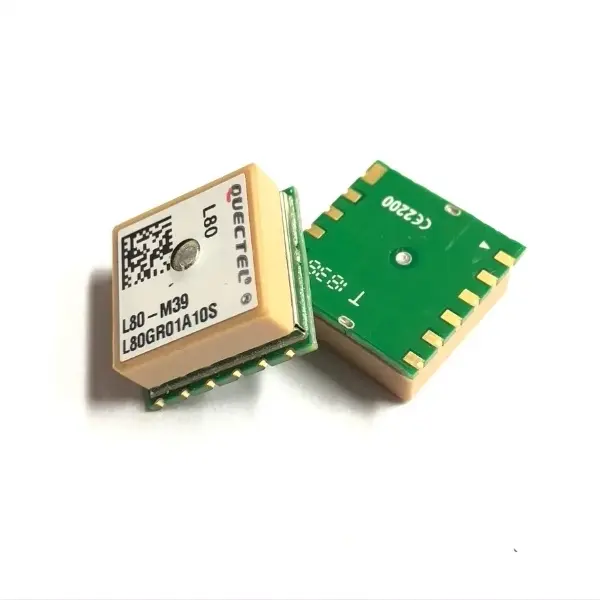

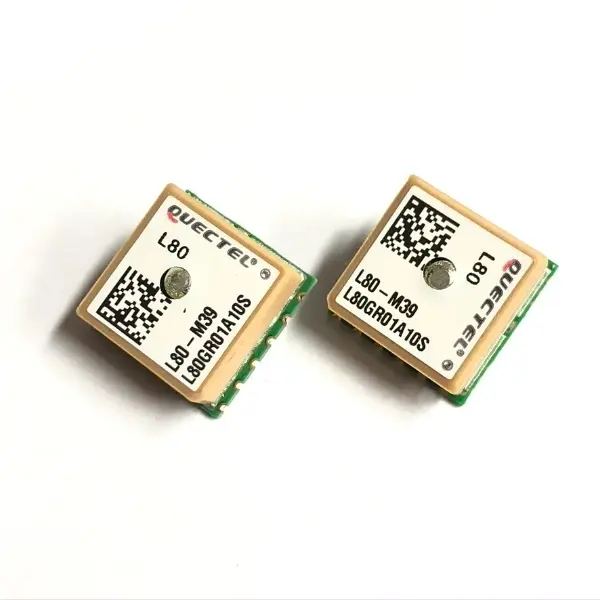

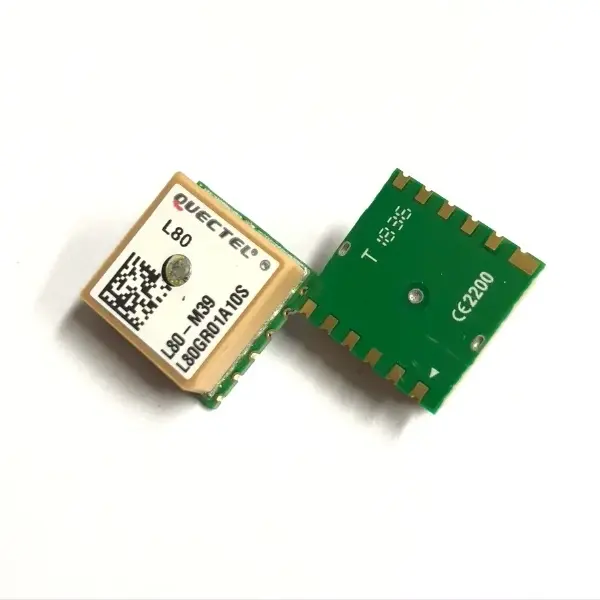

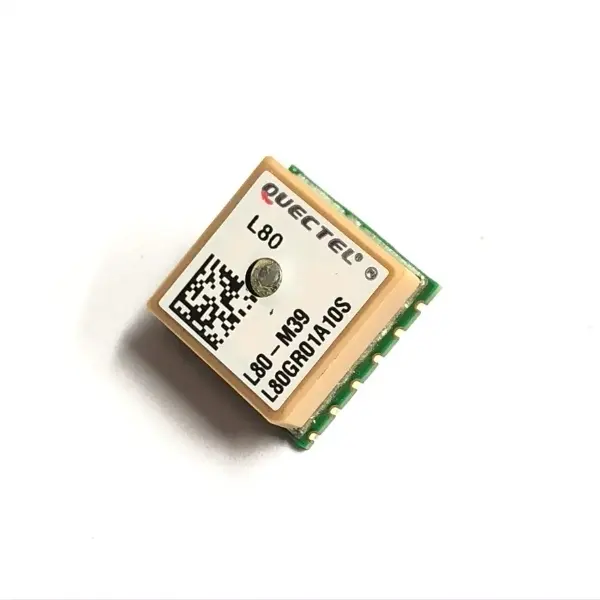

L80 is an ultra slim module with embedded 15.0 × 15.0 × 4.0mm patch antenna. It is a SMD type module, brings the high performance of MTK positioning engine to the industrial applications with compact profile, ultra low power consumption and fast positioning capability.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, L80 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.

L80 supports automatic antenna switching fuction between active antenna and embedded patch antenna. If active antenna is connected, the module will use active antenna. When active antenna is removed, the module will switch to use patch antenna automatically. The patch antenna is default.

Additional feature of embedded logger function called LOCUS allows L80 to log position information to internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding cost.

With its tiny design, high precision and sensitivity, L80 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA.

Key benefits
Embedded patch antenna: 15.0 x 15.0 x 4.0mm
Extremely compact size: 16.0 x 16.0 x 6.45mm
Automatic antenna switching function
Support short circuit protection and antenna detection
Built-in LNA for better sensitivity
EASY™, advanced AGPS technology without external memory
Ultra low power consumption in tracking mode, 18.2mA
AlwaysLocate™, an intelligent controller of periodic mode
LOCUS, innate logger solution with no need of host and external flash
High sensitivity 165dBm@Tracking, -148dBm@Acquisition
66 acquisition channels, 22 tracking channels
Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
Anti-Jamming, Multi-tone Active Interference Canceller
