Description

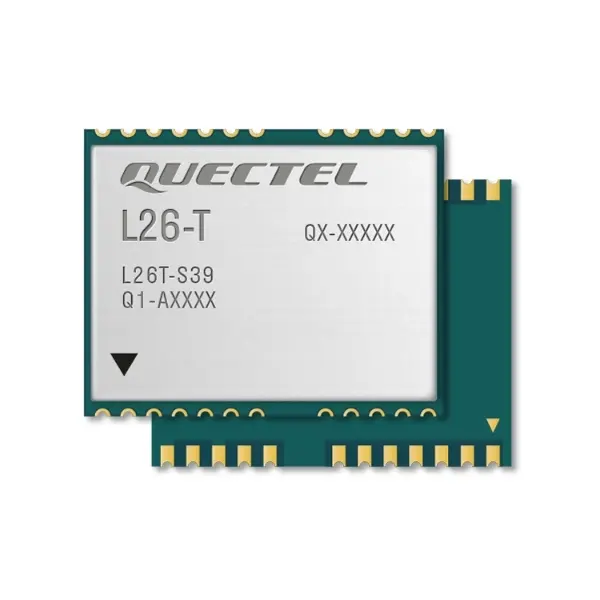

The L26-T is an ultra-compact GNSS module measuring 16.0mm × 12.2mm × 2.3mm, designed and manufactured according to IATF 16969: 2016 specification, which is intended for high precision timing in demanding applications worldwide.
The module can connect concurrently to GPS, Galileo, GLONASS, BeiDou and SBAS, QZSS constellations for better accuracy and performance, and also supports output of multi-GNSS raw data. This guarantees accurate navigation even in environments such as urban canyons.
The built-in LNA ensures better performance under areas with weak signal, while the position hold mode reduces timing jitter and allows synchronization to be maintained with just one satellite in view. The module uses AGNSS aiding data to significantly reduce time-to-first-fix and ensure outstanding acquisition sensitivity even on first setup, when the precise location, time or frequency are still unknown.
The L26-T’s combination of compact design and very high precision makes it ideal for base stations as well as a range of industrial applications.
Key Features
- Supports AGNSS
- Built-in LNA
- Timing function
- Supports multi-GNSS raw data function
- Supports DGPS (RTCM standard)/SBAS(WAAS/EGNOS/MSAS/GAGAN)
