Description

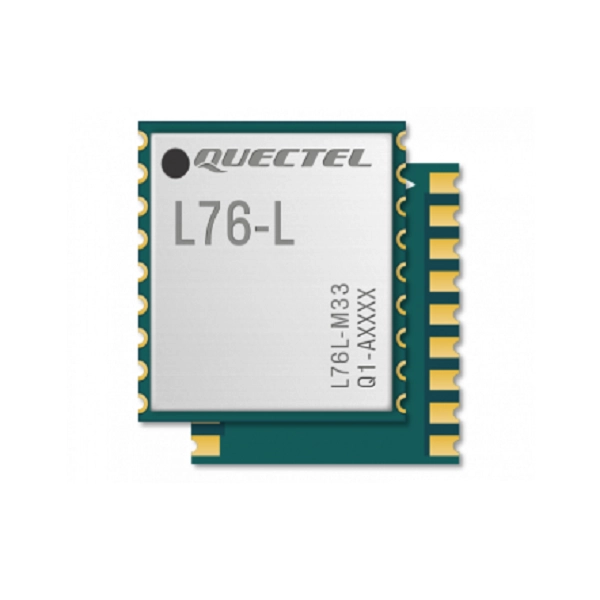

Quectel L76-L GNSS module supports concurrent reception of GPS, GLONASS (or BeiDou), Galileo and QZSS. It can acquire and track any mix of GPS, GLONASS (or BeiDou), Galileo and SBAS signals. The L76-L is designed to be compatible with Quectel L76, L76K and L76-LB modules, allowing convenient migration between them.

The integrated LNA provides high sensitivity, high position accuracy, fast tracking and acquisition of signals, and can keep better performance even in challenging environments. Compared with single GPS system, enabling multiple GNSS systems increases the number of visible satellites, reduces the time to first fix and improves positioning accuracy, especially when driving through dense urban canyons.

By combining EASY (Embedded Assist System), an advanced AGNSS feature, with GLP (GNSS Low Power), a lowpower mode, the L76-L module achieves high performance, low power consumption and fully meets the industrial standards. The EASY technology allows the module to calculate and predict orbits automatically by using the ephemeris data (of up to 3 days duration) which are stored in the internal RAM. As a result, the L76-L acquires a fix position quickly, even at lower signal levels with low power consumption. With the GLP technology, on the other hand, the L76-L can adaptively adjust the on/off time based on the environmental and motion conditions to achieve a balance between the positioning accuracy and power consumption.

Its enhanced performance makes the L76-L ideal for industrial PDA, consumer and industry applications. Extremely low-power consumption makes it a great solution for power-sensitive applications, such as portables.
