Description

Key Features

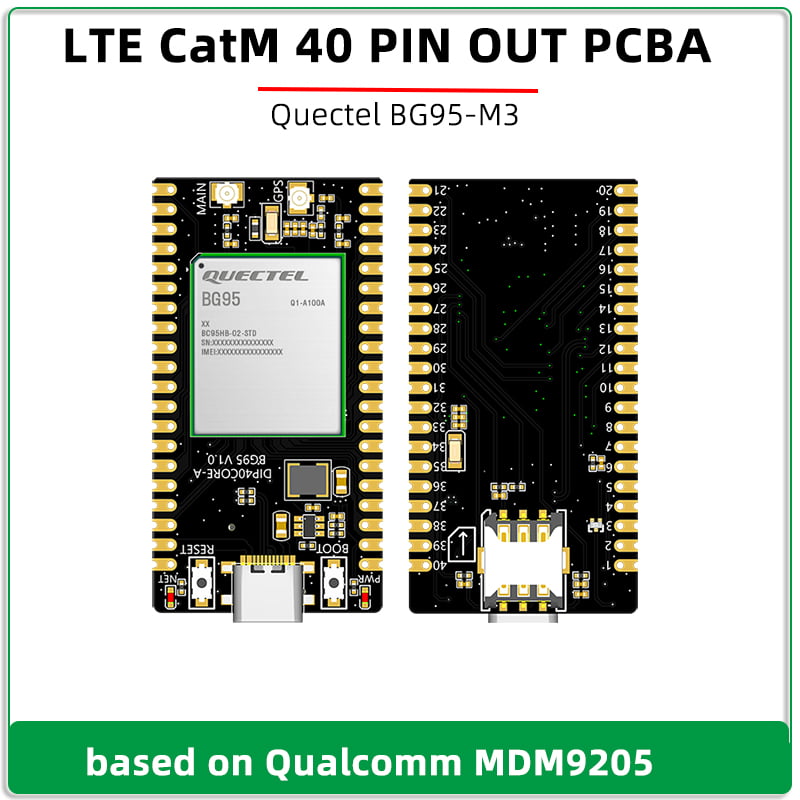

The following table describes the detailed features of BG95 40PIN DIP PCBA.

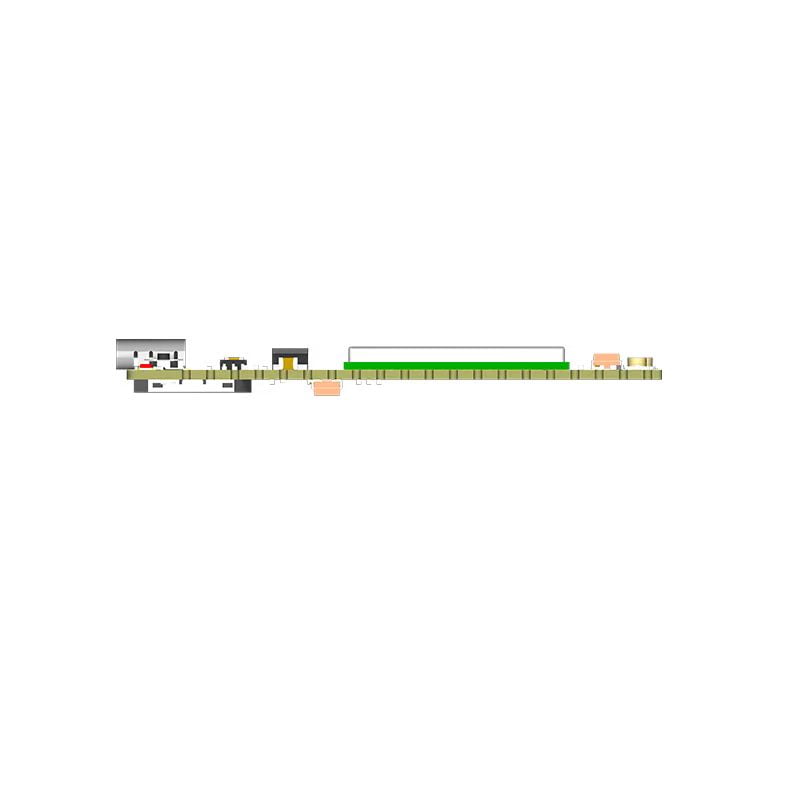

Size information 56mm×29.4mm×1.0mm
Supported
Bands
LTE-FDD:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
LTE-FDD:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM850/EGSM900/DCS1800/PCS1900
Internet Protocol
Features
SMS 1.Text and PDU mode 2.Point to point MO and MT
3.SMS cell broadcast 4.SMS storage: ME by default
Support 1.8 V USIM/SIM card only
Supports PPP/TCP/UDP/SSL/TLS/FTP(S)/HTTP(S)/NITZ/PING/MQTT/
LwM2M/CoAP/IPv6 protocols
Supports PAP and CHAP for PPP connections
EGPRS
CAT M1
CAT NB2
GPS, GLONASS, BDS, Galileo and QZSS
GNSS 1 Hz data update rate by default
(U)SIM Interface
USB Interface
Compliant wit
Support operations at low-speed and full-speed
Used for AT command communication, data transmission, GNSS NMEA
output, software debugging and firmware upgrade Support USB serial
drivers for Windows 7/8/8.1/10/11, Linux 2.6–5.18, Android
4.x/5.x/6.x/7.x/8.x/9.x/10.x/11.x/12.x
UART
Interface
Used for data transmission and AT command communication
115200 bps baud rate by default
The default frame format is 8N1 (8 data bits, no parity, 1 stop bit)
Support RTS and CTS hardware flow control
Used for software debugging and log output
Support 115200 bps baud rate
Used for GNSS data and NMEA sentences output
115200 bps baud rate by default
Main
UART
Debug
UART
GNSS
UART
AT Commands 3GPP TS 27.007 and 3GPP TS 27.005 AT commands, as well as Quectel
enhanced AT commands
ROHS All hardware components are fully compliant with EU RoHS directive
