The Quectel RM520N-GL is a 5G Sub-6 GHz module in an M.2 form factor for industrial and commercial IoT applications. It supports 3GPP Release 16, 5G standalone (SA) and non-standalone (NSA), with LTE and WCDMA fallback. The specifications below use the RM520N-GL column of Quectel’s released RM520N Series specification V1.6.
Model and supplied configuration

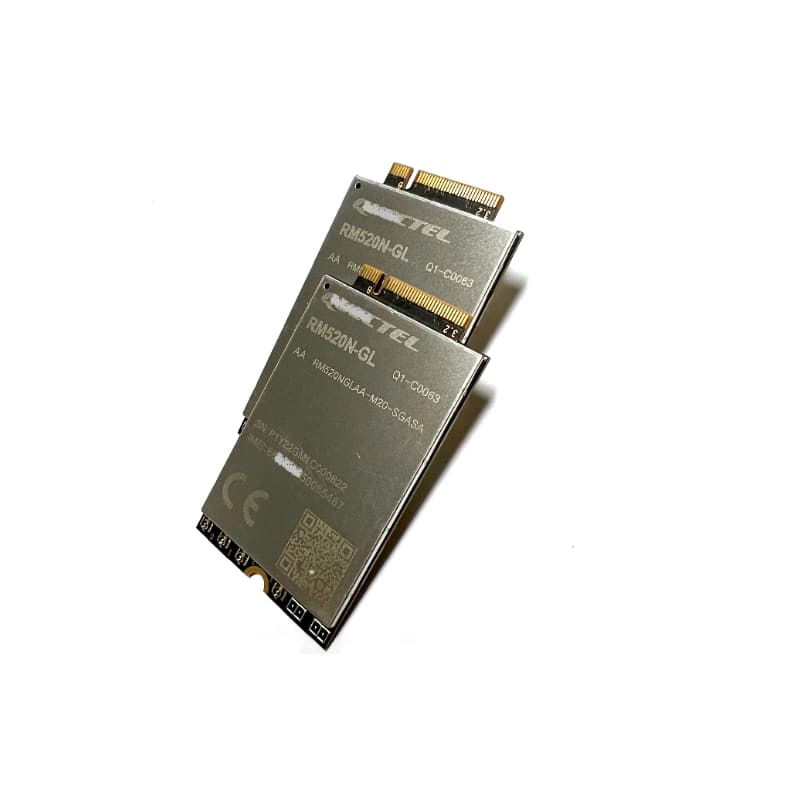

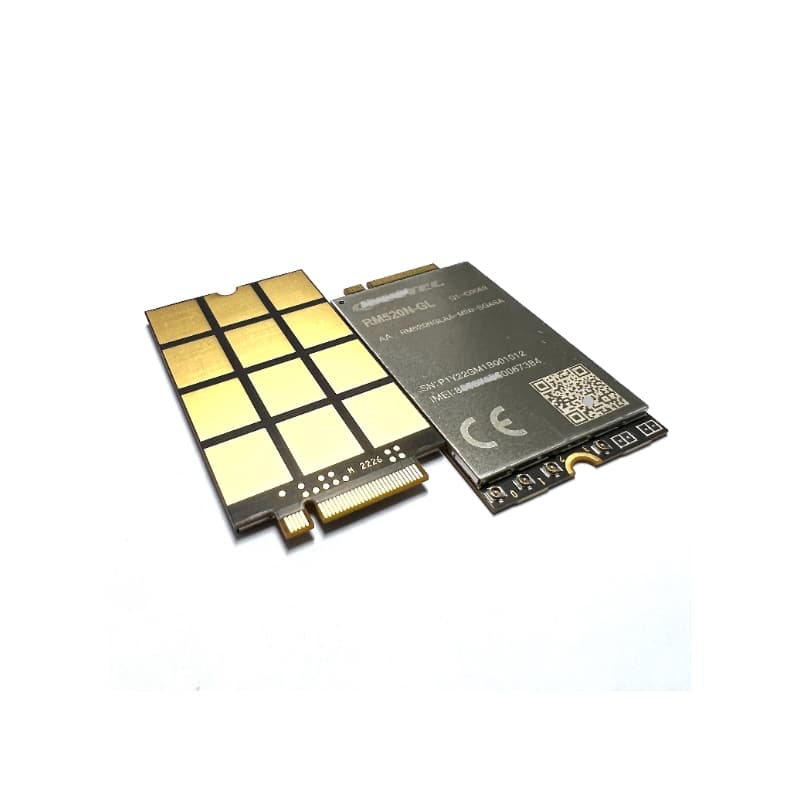

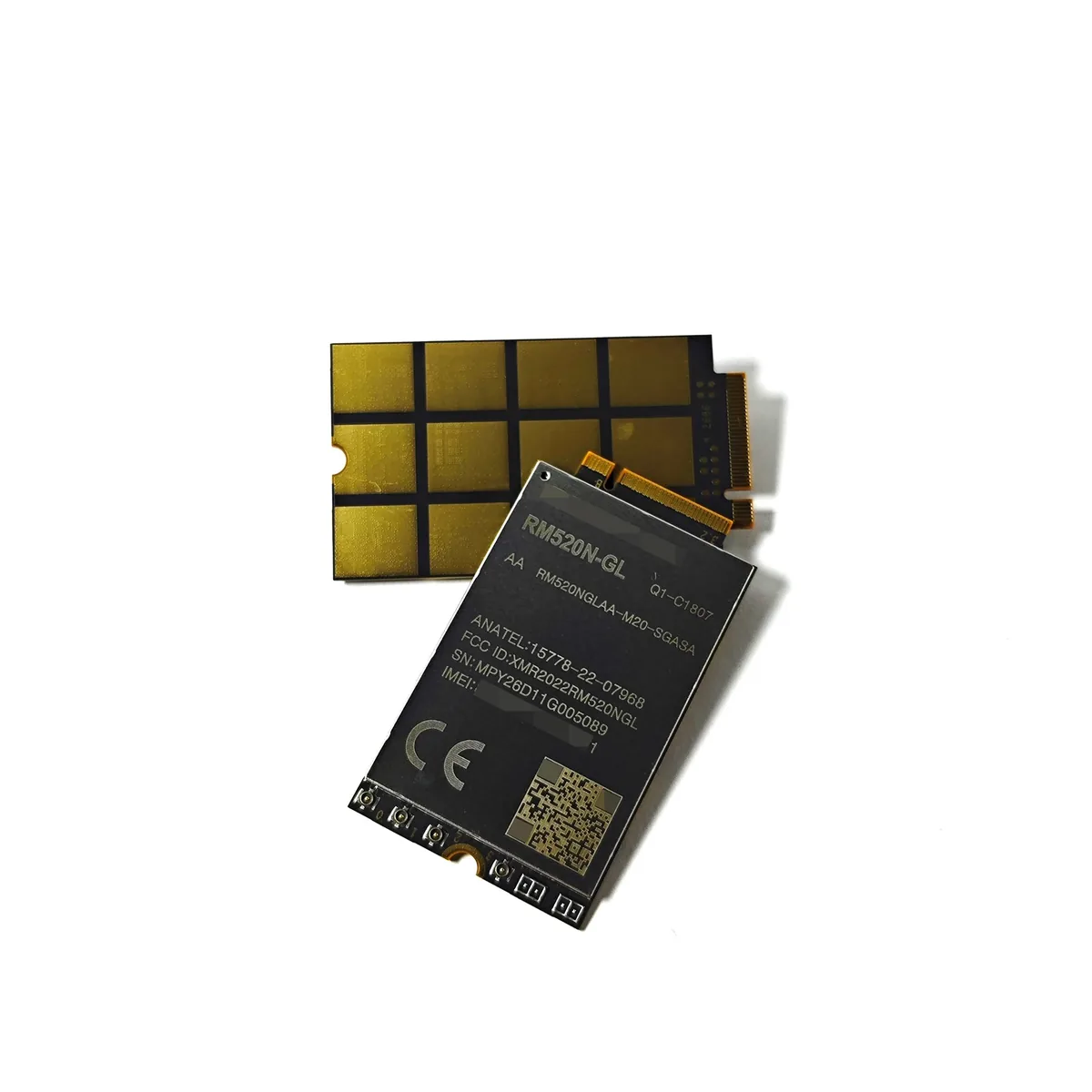

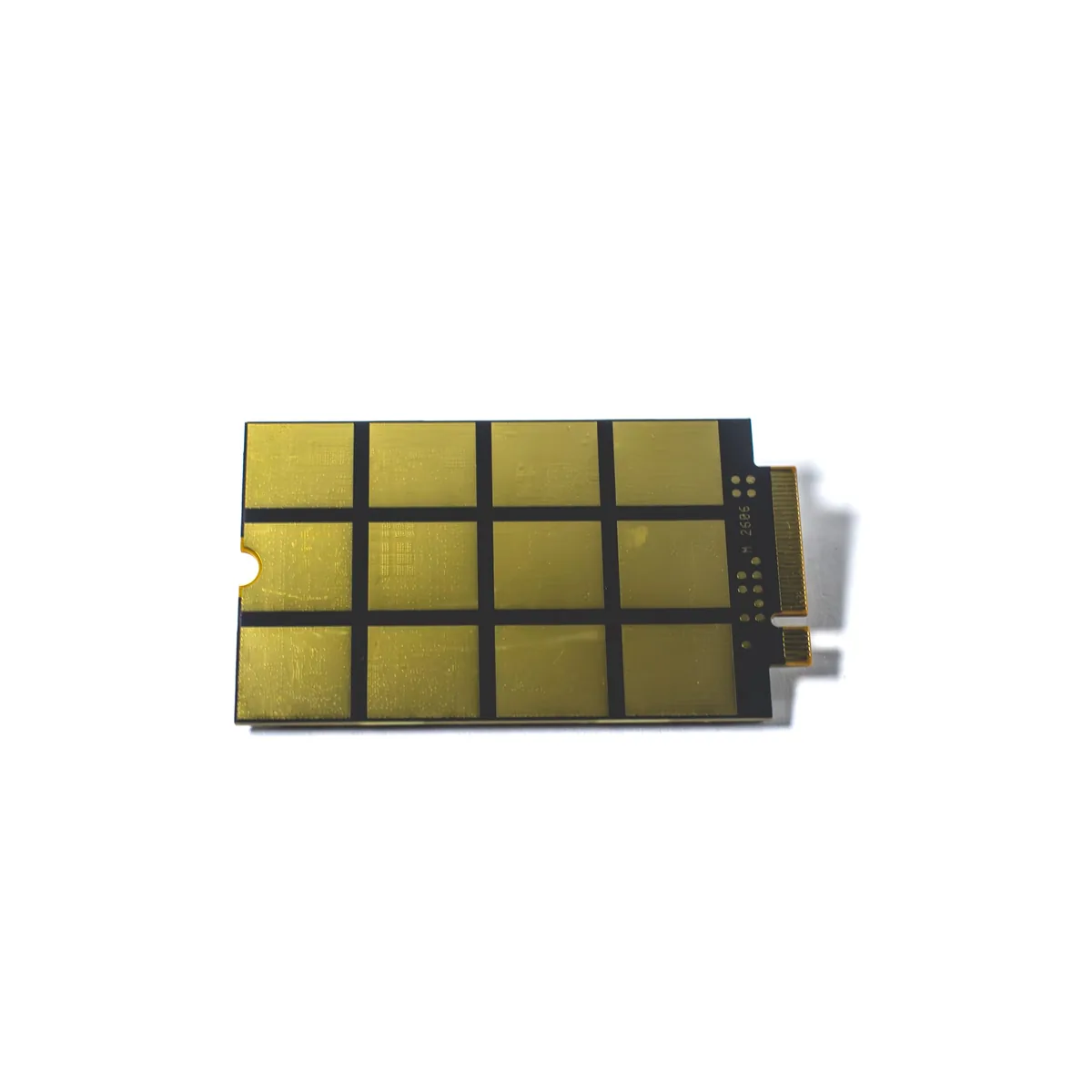

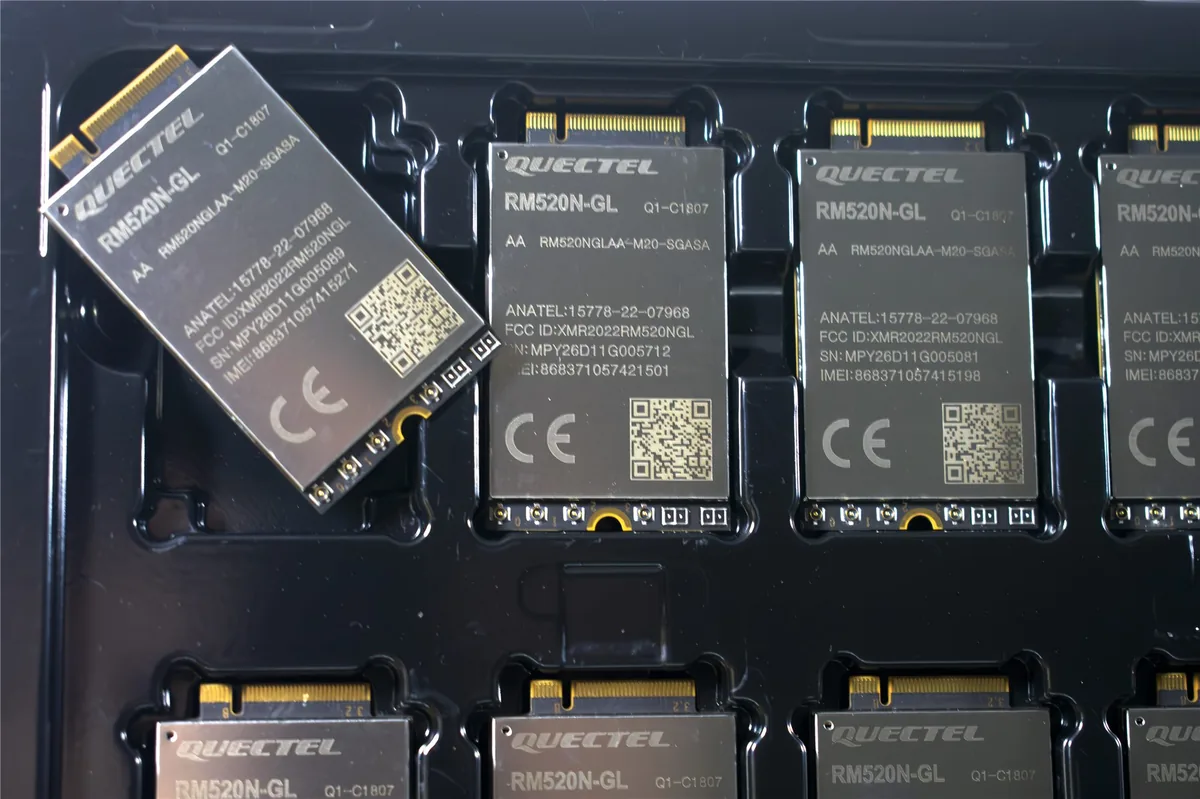

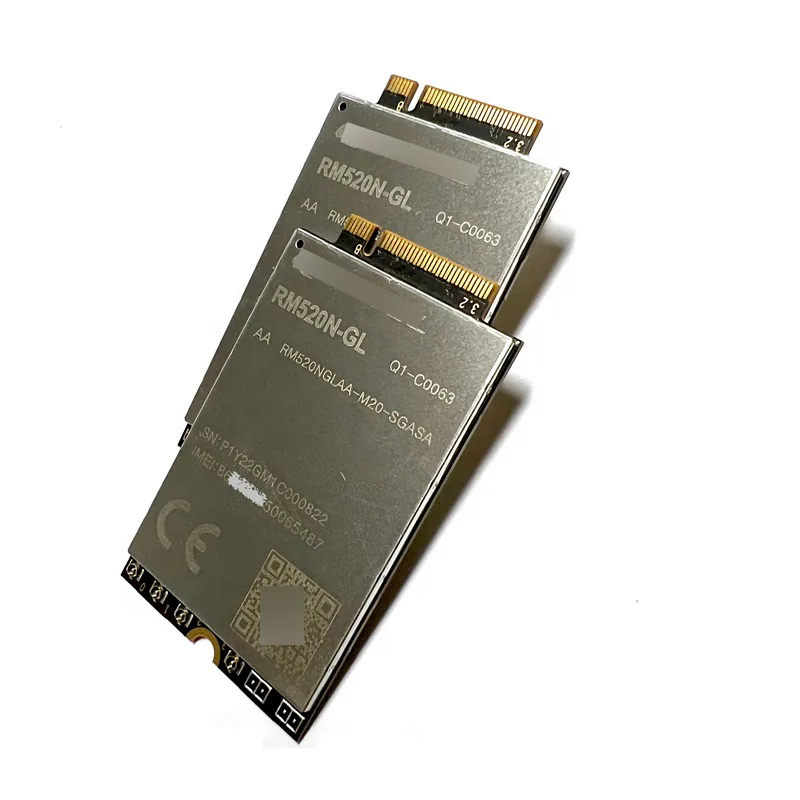

The existing photographs show an RM520N-GL M.2 module. They do not imply that a carrier board, enclosure, antennas, SIM card or cables are included. Confirm the full ordering part number, regional firmware and supplied items with your quotation. RM520N-EU is a separate variant; its bands and antenna configuration must not be substituted for GL.
Key specifications
| Technology | 5G NR Sub-6 GHz, 3GPP Release 16; SA and NSA |
|---|---|
| NR SA bands (GL) | n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| NR NSA bands (GL) | n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79 |
| LTE-FDD bands (GL) | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE-TDD / LAA (GL) | B34/B38/B39/B40/B41/B42/B43/B48; LAA B46 |
| WCDMA bands (GL) | B1/B2/B4/B5/B8/B19 |
| LTE category | Downlink Cat 19; uplink Cat 18 |
| Theoretical peak rates | 5G SA: 2.4 Gbps DL / 900 Mbps UL; 5G NSA: 3.4 Gbps DL / 550 Mbps UL; LTE: 1.6 Gbps DL / 200 Mbps UL. Actual rates depend on network conditions. |
| Dimensions / weight | 52.0 x 30.0 x 2.3 mm; approximately 8.7 g |
| Supply voltage | 3.135-4.4 V; typical 3.7 V |
| Temperature | Operating: -30 to +75 C; extended: -40 to +85 C |
| Interfaces | USB 2.0 x 1; USB 3.0/3.1 x 1; PCIe 3.0 x 1; (U)SIM x 2 |
| Antenna connections (GL) | Four Sub-6/GNSS antenna connections |
| Optional functions | GNSS: GPS/GLONASS/BDS/Galileo/QZSS; VoLTE and eSIM are optional. Confirm the ordered configuration and firmware. |
Document versions and selection notes
| Retained specification V1.1 | The original site download remains available below. Its GL table lists the same 28 NR bands for SA and NSA; it also uses development markers for several features and approvals. |
|---|---|
| Official specification V1.6 | SA and NSA bands are listed separately. GNSS is explicitly optional; regional software versions differ. This page follows the GL column of V1.6. |
| Hardware design V1.4 | Listed on the current Quectel product page. Obtain the applicable hardware document and review pin assignments, power, thermal design, RF routing and firmware before integration. |
Quectel describes migration compatibility with RM50xQ, EM06, EM12/EM12xR/EM120K and EM160R-GL families. This is a starting point for an engineering review, not a direct-replacement guarantee for an existing design.
Technical and compliance documents
Official RM520N Series specification V1.6 | Quectel hardware and software document listing
Ask for the applicable regulatory and operator documents for the exact part number, firmware and destination market. A specification’s approval list or a logo in a product photo alone does not confirm certification of the supplied configuration or completed host product.
Discuss your application
For an industrial router, gateway, CPE or video application, send the destination country, operator, SA/NSA requirement, host interface and antenna arrangement. We can discuss the full part number, quantity and required documentation during the quotation process.
