Description

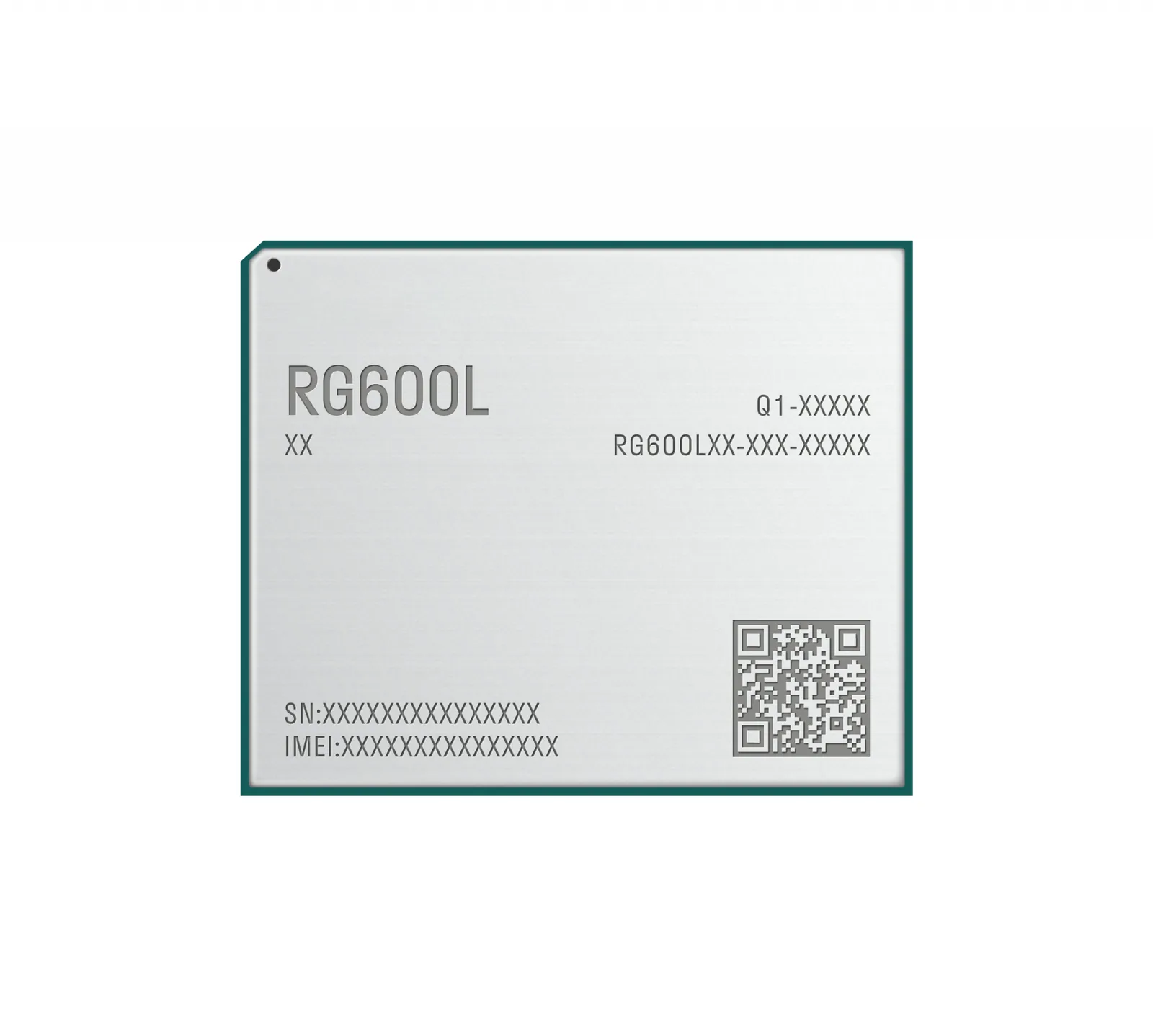

Quectel RG600L Series 5G Sub-6 GHz LGA module
Quectel RG600L is an industrial-grade 5G Sub-6 GHz LGA module series for IoT and eMBB applications. The dedicated series specification identifies 3GPP Release 15 operation with 5G NSA and SA support and 4G LTE Cat 19 capability.
Key specifications
| Item | RG600L series reference |
|---|---|
| Form factor | LGA, 53.0 x 44.0 x 2.95 mm |
| Cellular technology | 5G Sub-6 GHz and 4G LTE Cat 19 |
| Network modes | 3GPP Release 15; 5G NSA and SA |
| Peak data rate | Up to 4.67 Gbps downlink / 1.25 Gbps uplink; theoretical maxima |
| Host interfaces | USB 3.0 and PCIe 3.0 |
| Network functions | Integrated network and VPN hardware accelerators; rich network protocols and driver support are described in the specification. |
| Application reference | 5G wireless router, CPE, MiFi, industrial router and home gateway designs |
| Industrial scope | Industrial and commercial applications only |
Ordering and integration scope
Confirm the complete ordering code, regional bands, firmware, carrier requirements, host design and current approvals for the offered configuration before design release. Host hardware, antennas, SIM or eSIM provisioning, carrier service, cables and software integration are separate unless expressly included in the quotation.
Specification: Download the RG600L datasheet (PDF)
Send your requirements or BOM with the complete part number, destination country, host platform and quantity.
