Description

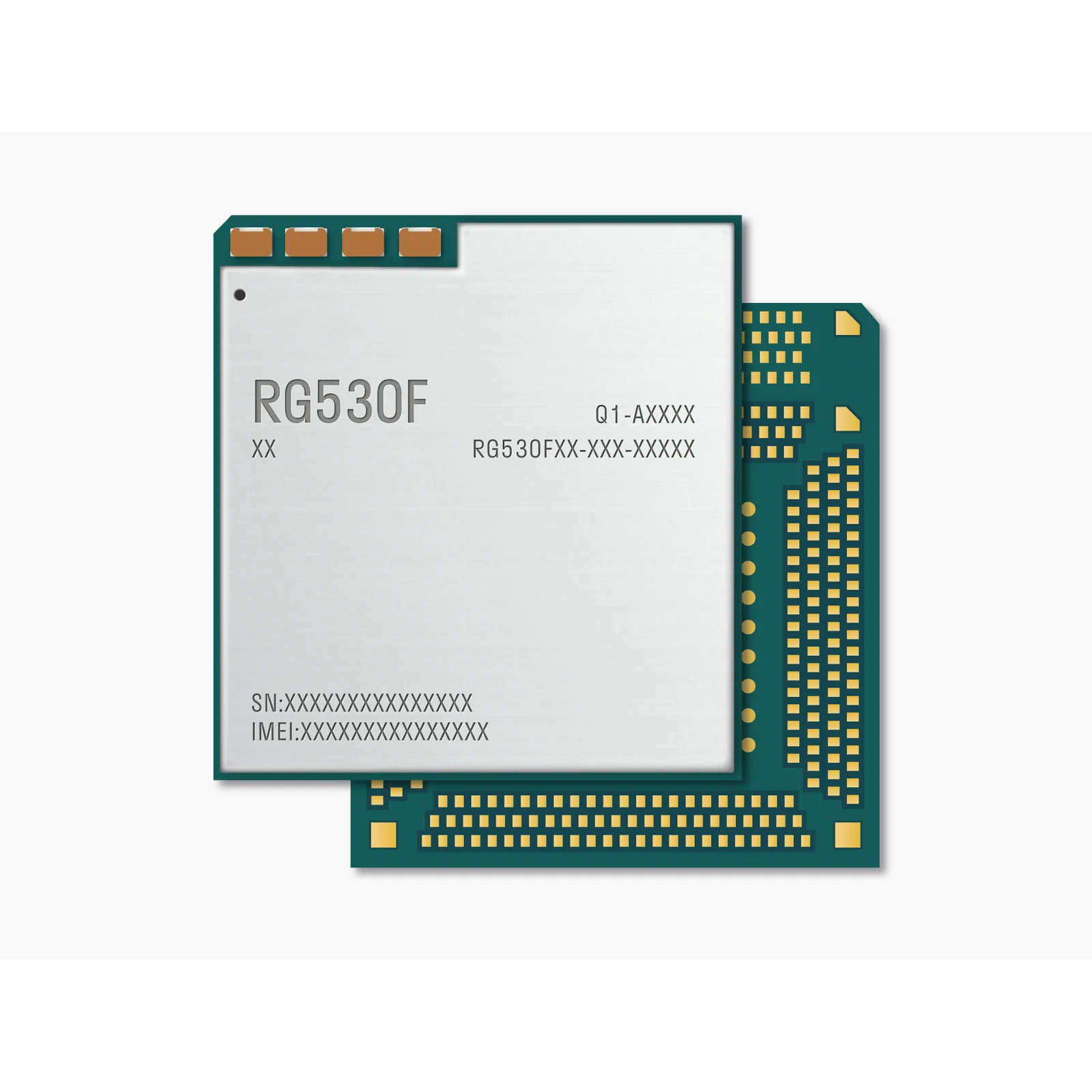

Quectel RG530F Series 5G Sub-6 GHz and mmWave LGA module
Quectel RG530F is an industrial-grade 5G LGA module series for IoT and eMBB applications. The dedicated series specification identifies 3GPP Release 16 operation, support for 5G Sub-6 GHz and mmWave bands, 5G NSA and SA modes, and 4G or 3G compatibility.
Key specifications
| Item | RG530F series reference |
|---|---|
| Form factor | LGA, 48.0 x 45.0 x 2.85 mm |
| Cellular technology | 5G Sub-6 GHz and mmWave, plus 4G and 3G compatibility |
| Network modes | 3GPP Release 16; 5G NSA and SA, including Options 3x, 3a, 3 and 2 |
| Host interfaces | USB 2.0/3.0/3.1, PCIe 3.0, PCM and UART |
| GNSS | Optional multi-constellation receiver using Qualcomm IZat Gen9C Lite for GPS, GLONASS, BDS, Galileo and QZSS |
| Software support | USB drivers listed for Windows, Linux and Android |
| Compatibility reference | Compatible with Quectel RG50xQ series and EG512R-EA; confirm the exact host design before design release. |
| Industrial scope | Industrial and commercial applications only |
Ordering and integration scope
Confirm the complete ordering code, regional bands, mmWave implementation, firmware, carrier requirements, optional GNSS, host design and current approvals for the offered configuration before design release. Host hardware, antennas, SIM or eSIM provisioning, carrier service, cables and software integration are separate unless expressly included in the quotation.
Specification: Download the RG530F datasheet (PDF)
Send your requirements or BOM with the complete part number, destination country, host platform and quantity.
