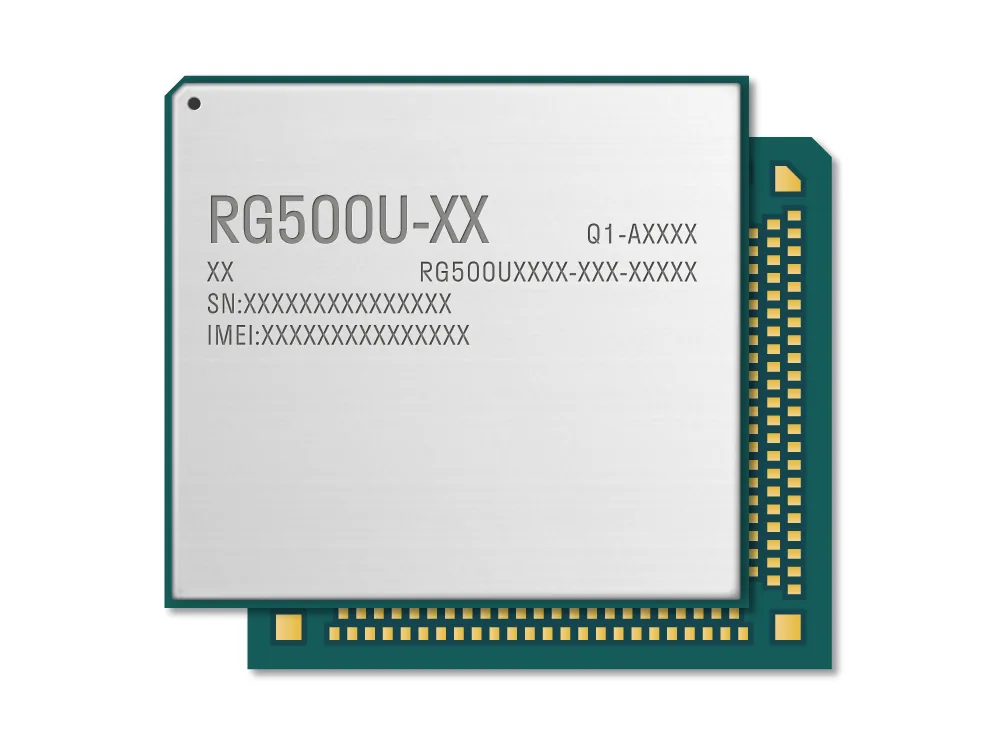

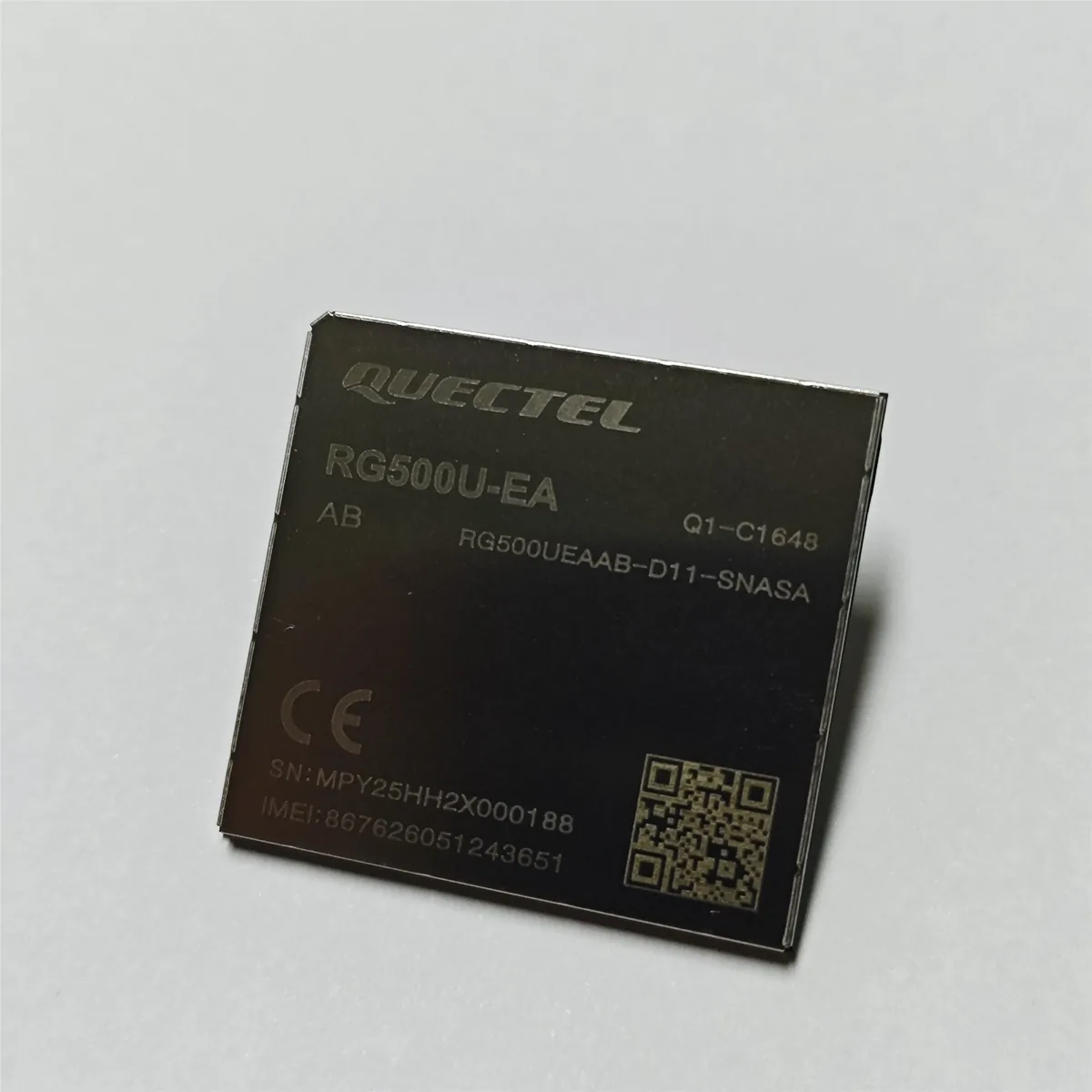

Quectel RG500U Series 5G Sub-6 GHz LGA module
RG500U is an industrial-grade 5G Sub-6 GHz LGA module series for IoT and eMBB applications. The dedicated V1.8 specification identifies 3GPP Release 15, 5G NSA and SA, TDD/FDD operation, and 4G/3G compatibility.
Key specifications
| Item | RG500U series reference |
|---|---|

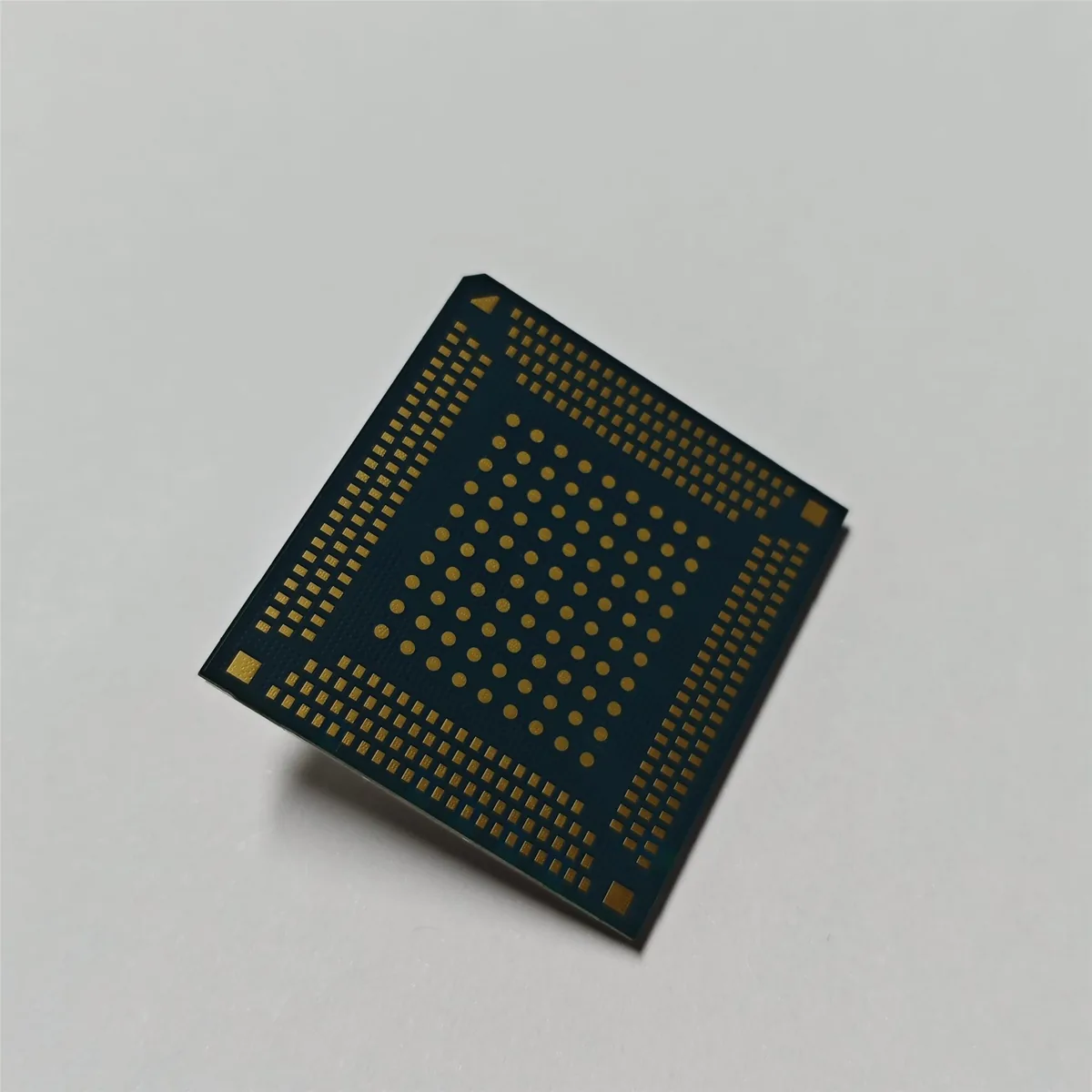

| Form factor | LGA, 41.0 x 44.0 x 2.85 mm |
| Variants | RG500U-EA, RG500U-EB, RG500U-JO and RG500U-LA; confirm the offered ordering code. |
| Network | 5G Sub-6 GHz, 5G NSA/SA, 4G and 3G compatibility |
| Interfaces | PCIe, USB, SDIO, UART, SPI, I2C, I2S and GPIO |
| Functions | VoLTE, VoNR, DFOTA and audio are described for supported configurations. |
| Industrial scope | Industrial and commercial applications only |
Confirm the complete ordering code, bands, firmware, carrier requirements, host design and approvals before design release. Host hardware, antennas, SIM/eSIM, carrier service, cables and software integration are separate unless expressly quoted.
Specification: Download the RG500U datasheet (PDF)
